MB 10564 II 3541564
Dimensions 70 x 50 x 20
Dimensions 2.76 x 1.97 x 0.79
- IP44
Technical data
Product nr : 3541564
Description : Ventilation device IP 44
Remarks : Gasketed, incl. screws
Package : 10
Unit : Piece
EAN : 6418074031754
SSTL number : 3424955
Electric No. Denmark : 8212008740
Electric No. Sweden : 3541564
ETIM : EC000211
Height (mm) : 70
Width (mm) : 50
Depth (mm) : 20
Height (inch) : 2.76
Width (inch) : 1.97
Depth (inch) : 0.79
Material : Polycarbonate
Gasket material : TPE
Temperature °C : -40 … 80
Temperature °F : -40 … 175
Ingress Protection (EN 60529): IP44
/ /
Dimensional Drawings
CAD Files
Please note, that we need you permission in order for you to view the CAD files.
Catalogues
Contact
MB 10564 II

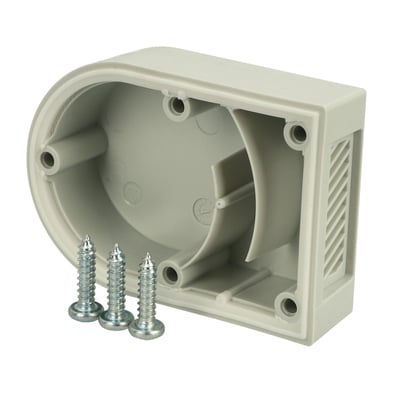

Sample image
Order symbol : MB 10564 II
Product nr : 3541564
Description : Ventilation device IP 44
Remarks : Gasketed, incl. screws
EAN : 6418074031754
El. number :
- Finland : 3424955
- Denmark : 8212008740
- Sweden : 3541564
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 70 | 50 | 20 |
| inch : | 2.76 | 1.97 | 0.79 |
| Materials : | |
|---|---|
| Material : | Polycarbonate |
| Gasket material : | TPE |
| Temperatures : | |
|---|---|
| Temperature °C (continuous) : | -40 … 80 |
| Temperature °F (continuous) : | -40 … 175 |
| Ratings : | |
|---|---|
| Ingress protection (EN 60529): | IP44; |
| electrical_insulation : | Not insulated |
| UV resistance : | - |
