GPA M32 7016404
Dimensions 50 x 42 x 42
Dimensions 1.97 x 1.65 x 1.65
- PC : IP68
Technical data
Product nr : 7016404
Description : Cable gland (IP 68 - 5 bar), M32x1,5
Remarks : for cable 15-21 mm
Package : 25
Unit : Piece
EAN : 6418074054883
SSTL number : 1721172
Electric No. Denmark : 8213003485
ETIM : EC000441
Height (mm) : 50
Width (mm) : 42
Depth (mm) : 42
Height (inch) : 1.97
Width (inch) : 1.65
Depth (inch) : 1.65
Material : Polyamide
Temperature °C : -40 … 80
Ingress Protection (EN 60529): IP68
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 746C
/ /
GPA M32

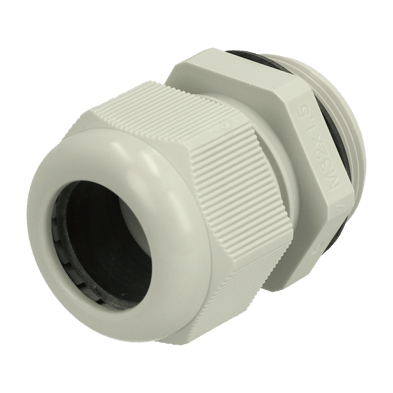

Sample image
Order symbol : GPA M32
Product nr : 7016404
Description : Cable gland (IP 68 - 5 bar), M32x1,5
Remarks : for cable 15-21 mm
EAN : 6418074054883
El. number :
- Finland : 1721172
- Denmark : 8213003485
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 50 | 42 | 42 |
| inch : | 1.97 | 1.65 | 1.65 |
| Materials : | |
|---|---|
| Material : | Polyamide |
| Temperatures : | |
|---|---|
| Temperature °C (continuous) : | -40 … 80 |
| Ratings : | |
|---|---|
| Ingress protection (EN 60529): | IP68; |
| electrical_insulation : | Totally insulated |
| Halogen free (DIN/VDE 0472, Part 815) : | Yes |
| UV resistance : | UL 746C |
