DRS EKH 1919 1x9M 3770200
Dimensions 173 x 173 x 90
Dimensions 6.81 x 6.81 x 3.54
Technical data
Product nr : 3770200
Description : DIN rail set
EAN : 6418074320292
SSTL number : 3424825
Electric No. Denmark : 8212052990
Electric No. Sweden : 2507794
ETIM : EC002620
Height (mm) : 173
Width (mm) : 173
Depth (mm) : 90
Height (inch) : 6.81
Width (inch) : 6.81
Depth (inch) : 3.54
Material : Galvanized steel
Temperature °C : -40 … 80
Temperature °F : -40 … 175
/ /
Dimensional Drawings
CAD Files
Catalogues
Contact
DRS EKH 1919 1x9M

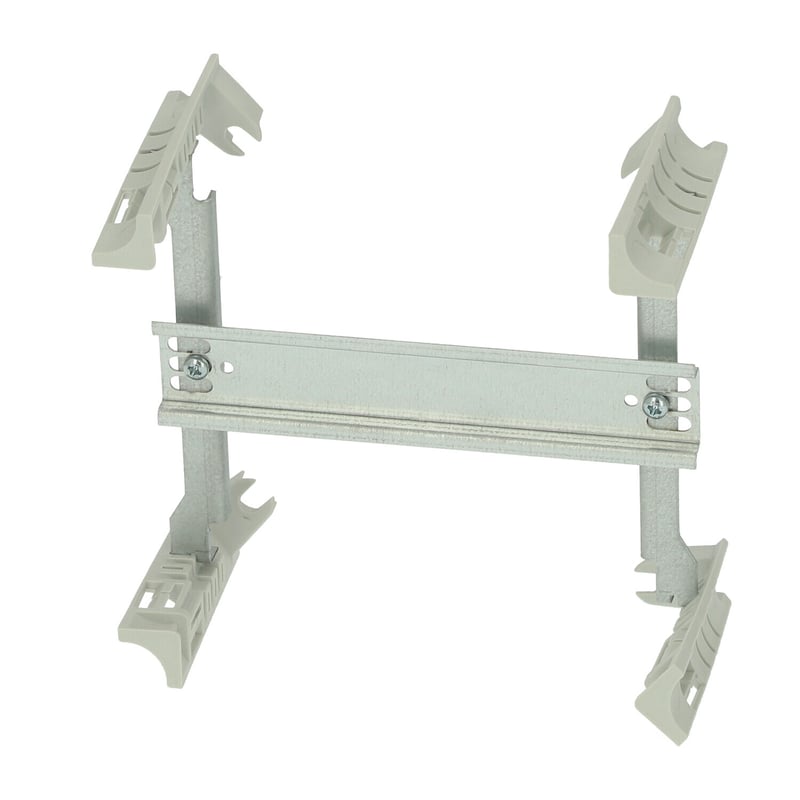

Sample image
Order symbol : DRS EKH 1919 1x9M
Product nr : 3770200
Description : DIN rail set
EAN : 6418074320292
El. number :
- Finland : 3424825
- Denmark : 8212052990
- Sweden : 2507794
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 173 | 173 | 90 |
| inch : | 6.81 | 6.81 | 3.54 |
| Materials : | |
|---|---|
| Material : | Galvanized steel |
| Temperatures : | |
|---|---|
| Temperature °C (continuous) : | -40 … 80 |
| Temperature °F (continuous) : | -40 … 175 |
| Ratings : | |
|---|---|
| electrical_insulation : | Not insulated |
| UV resistance : | - |
