JBL12-1 2550005
Dimensions 190 x 280 x 160
Dimensions 7.48 x 11.02 x 6.3
- IP65; IK08
Technical data
Product nr : 2550005
Description : Modular component enclosure, grey screw cover with inspection window, 1x13 modules
EAN : 6418074300140
SSTL number : 3424797
Electric No. Denmark : 8212010602
Electric No. Sweden : 2507763
ETIM : EC002620
Height (mm) : 190
Width (mm) : 280
Depth (mm) : 160
Height (inch) : 7.48
Width (inch) : 11.02
Depth (inch) : 6.3
Material : Polycarbonate
Base colour : RAL_7035
Cover colour : Clear transparent
Gasket material : Polyurethane
Temperature °C : -40 … 80
Temperature °F : -40 … 175
Standards EN 62208:2011, IEC 62208:2011
Ingress Protection (EN 60529): IP65
Impact Resistance (EN 62262): IK08
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 746C
Flammability Rating : UL 94 V0
Glow Wire Test (IEC 60695): 960C
/ /
JBL12-1

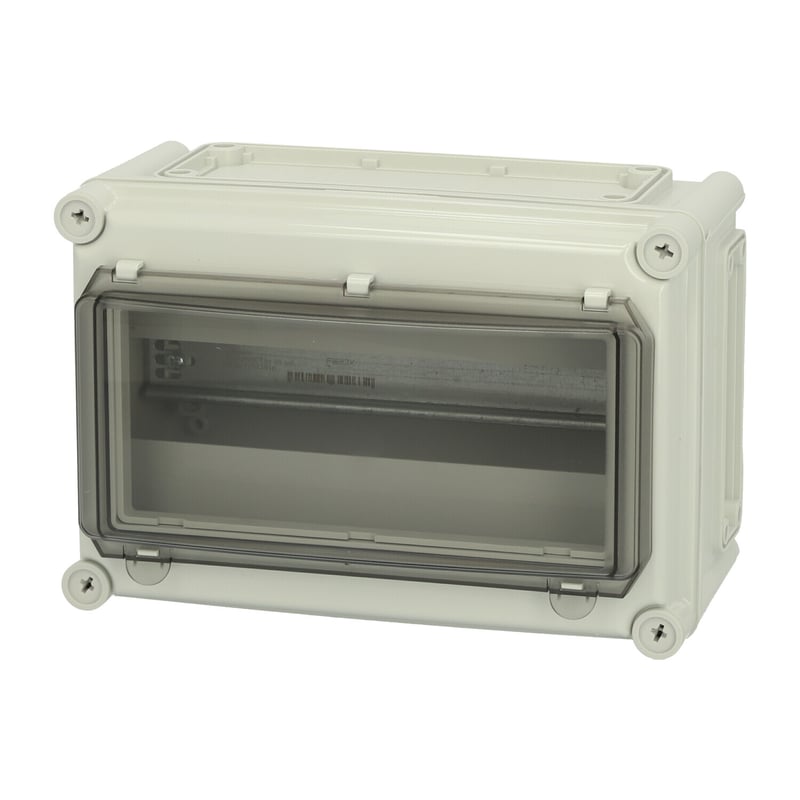

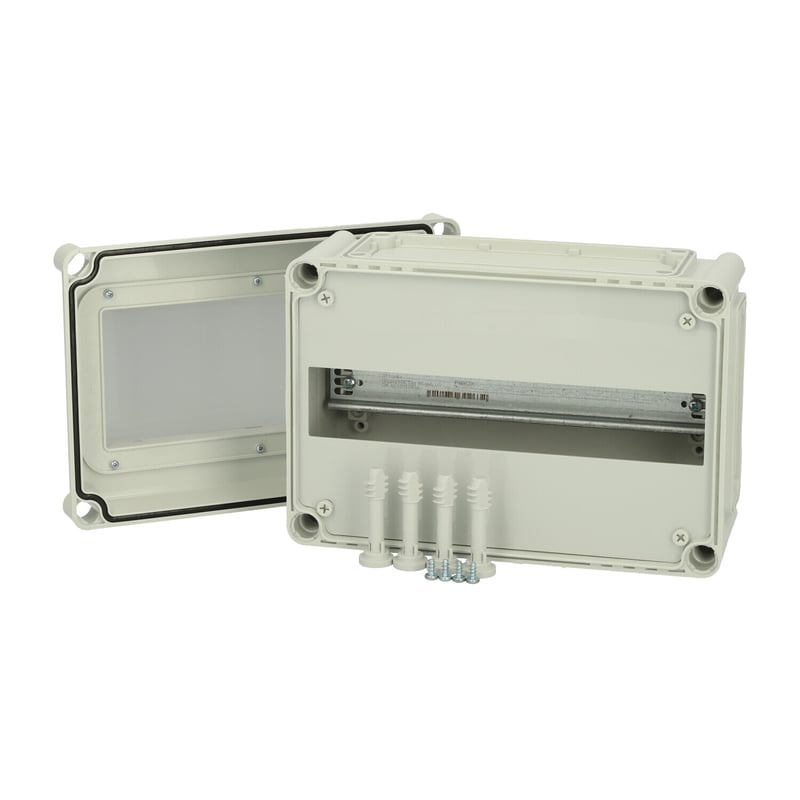

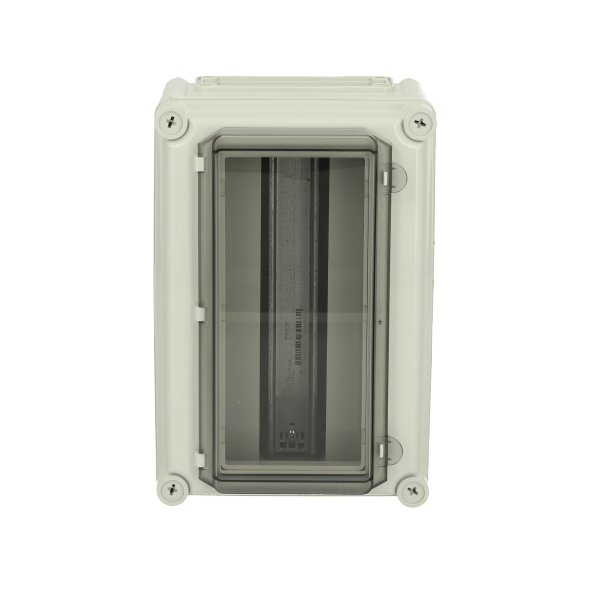

Sample image
Order symbol : JBL12-1
Product nr : 2550005
Description : Modular component enclosure, grey screw cover with inspection window, 1x13 modules
EAN : 6418074300140
El. number :
- Finland : 3424797
- Denmark : 8212010602
- Sweden : 2507763
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 190 | 280 | 160 |
| inch : | 7.48 | 11.02 | 6.3 |
| Materials : | |
|---|---|
| Material : | Polycarbonate |
| Base colour : | RAL_7035 |
| Cover colour : | Clear transparent |
| Gasket material : | Polyurethane |
| Temperatures : | |
|---|---|
| Temperature °C (continuous) : | -40 … 80 |
| Temperature °F (continuous) : | -40 … 175 |
| Ratings : | |
|---|---|
| Ingress protection (EN 60529): | IP65; |
| Impact Resistance (EN 62262): | IK08; |
| electrical_insulation : | Not insulated |
| Halogen free (DIN/VDE 0472, Part 815) : | Yes |
| UV resistance : | UL 746C |
| Flammability Rating : | UL 94 V0 |
| Glow Wire Test (IEC 695-2-1) °C : | 960C |
