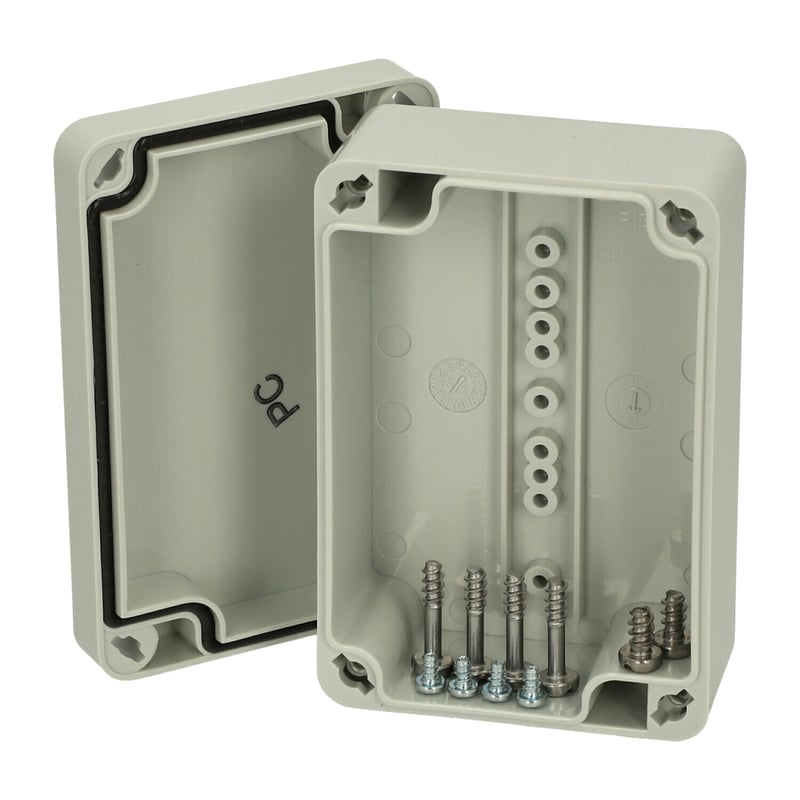

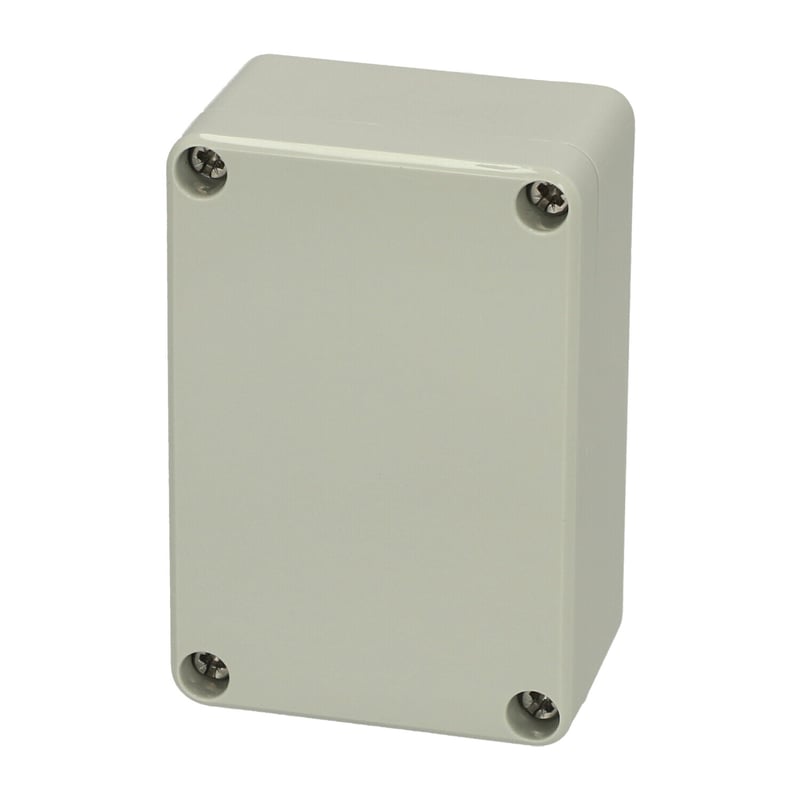

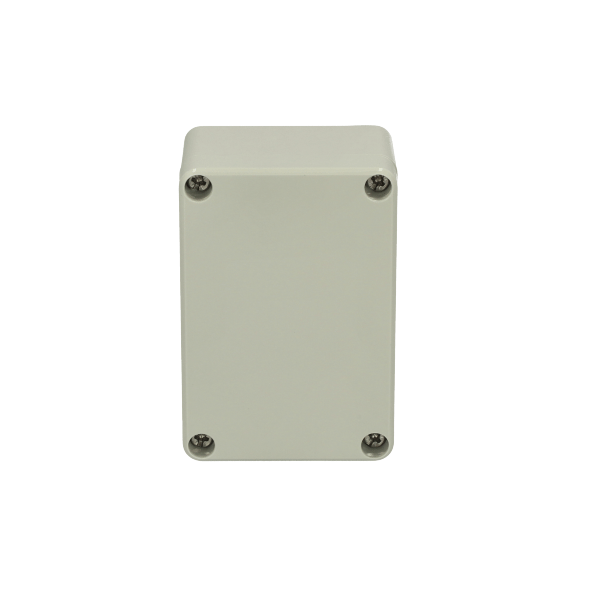

    Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.

Euronord / EURONORD 0710 / PC 071004

PC 071004 7032530

Dimensions 66 x 98 x 41

Dimensions 2.6 x 3.86 x 1.61

Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.

IP66; IP67; IK07; IK08

Product number : 7032530 Download product card

Technical data

Product:

Product nr : 7032530

Description : Enclosure, PC

Remarks : Grey cover

Package : 8

Unit : Piece

EAN : 6418074058300

SSTL number : 3435340

Electric No. Denmark : 8212002542

Electric No. Sweden : 2536106

ETIM : EC000261

Dimensions :

Height (mm) : 66

Width (mm) : 98

Depth (mm) : 41

Height (inch) : 2.6

Width (inch) : 3.86

Depth (inch) : 1.61

Materials :

Material : Polycarbonate

Base colour : RAL_7035

Cover colour : RAL 7035 -light grey

Gasket material : Polyurethane

Temperatures :

Temperature °C : -40 … 80

Temperature °F : -40 … 175

Ratings :

Standards EN/IEC 61439-1:2015

Ingress Protection (EN 60529): IP66IP67

Impact Resistance (EN 62262): IK07IK08

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : Yes

UV resistance : UL 746C

Flammability Rating : UL 94 V0

Glow Wire Test (IEC 60695): 960C
