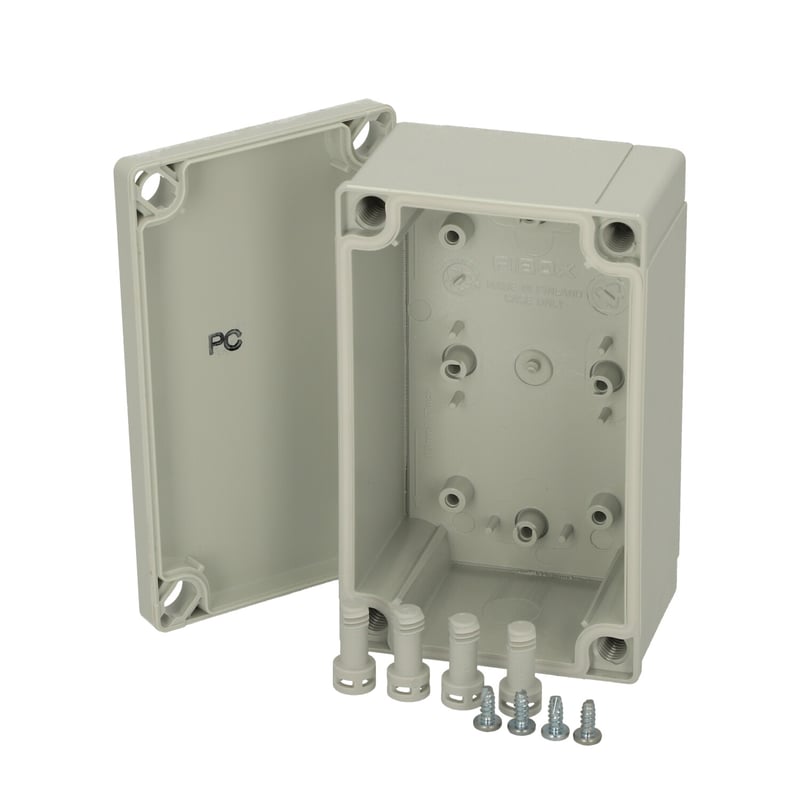

UL PC 100/60 HG product image 1
Next slide
UL PC 100/60 HG thumbnail image 1

UL MNX / UL PC 100H / UL PC 100/60 HG

UL PC 100/60 HG 6411301

Dimensions 130 x 80 x 60

Dimensions 5.12 x 3.15 x 2.36

  • IP66; IP67; IK08
Technical data
Product:

Product nr : 6411301

Description : UL Enclosure, PC

Remarks : Grey cover

Package : 8

Unit : Piece

EAN : 6418074014252

Electric No. Denmark : 8212030103

ETIM : EC000261

Dimensions :

Height (mm) : 130

Width (mm) : 80

Depth (mm) : 60

Height (inch) : 5.12

Width (inch) : 3.15

Depth (inch) : 2.36

Temperatures :

Temperature °F : -40 … 175

Ratings :

Ingress Protection (EN 60529): IP66IP67

Impact Resistance (EN 62262): IK08

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : Yes

UV resistance : UL 746C

Flammability Rating : UL 94 V0

Glow Wire Test (IEC 60695): 960C

UL Type : Type 1, 4, 4X, 6

Product is connected to following catalogues :

UL MNX / UL PC 100H / UL PC 100/60 HG

Dimensional Drawings
CAD Files
Certificates and Declarations
Contact

UL PC 100/60 HG

Fibox

Sample image

Order symbol : UL PC 100/60 HG

Product nr : 6411301

Description : UL Enclosure, PC

Remarks : Grey cover

EAN : 6418074014252

El. number :

  • Denmark : 8212030103
MNX100H
Dimensions : Height Width Depth
mm : 130 80 60
inch : 5.12 3.15 2.36
Materials :
Temperatures :
Temperature °C (short term) : -40 … 120
Temperature °F (short term) : -40 … 250
Temperature °F (continuous) : -40 … 175
Ratings :
Ingress protection (EN 60529): IP66; IP67;
Impact Resistance (EN 62262): IK08;
electrical_insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 746C
Flammability Rating : UL 94 V0
Glow Wire Test (IEC 695-2-1) °C : 960C
UL Type Type 1, 4, 4X, 6
Certificates :
MNX_CertificateofCompliance
