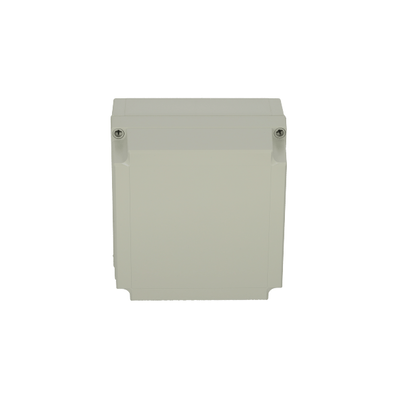

UL PC 175/125 HG product image 1
Next slide
UL PC 175/125 HG thumbnail image 1

UL MNX / UL PC 175H / UL PC 175/125 HG

UL PC 175/125 HG 6411322

Dimensions 180 x 180 x 125

Dimensions 7.09 x 7.09 x 4.92

  • IP66; IP67; IK08
Technical data
Product:

Product nr : 6411322

Description : UL Enclosure, PC

Remarks : Grey cover

Package : 4

Unit : Piece

EAN : 6418074057716

Electric No. Denmark : 8212030556

ETIM : EC000261

Dimensions :

Height (mm) : 180

Width (mm) : 180

Depth (mm) : 125

Height (inch) : 7.09

Width (inch) : 7.09

Depth (inch) : 4.92

Temperatures :

Temperature °F : -40 … 175

Ratings :

Ingress Protection (EN 60529): IP66IP67

Impact Resistance (EN 62262): IK08

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : Yes

UV resistance : UL 746C

Flammability Rating : UL 94 V0

Glow Wire Test (IEC 60695): 960C

UL Type : Type 1, 4, 4X, 6

Product is connected to following catalogues :

UL MNX / UL PC 175H / UL PC 175/125 HG

Dimensional Drawings
CAD Files
Certificates and Declarations
Contact

UL PC 175/125 HG

Fibox
6411322_PC_175_125_HG 360_ANIMA_SMALL.gif

Sample image

Order symbol : UL PC 175/125 HG

Product nr : 6411322

Description : UL Enclosure, PC

Remarks : Grey cover

EAN : 6418074057716

El. number :

  • Denmark : 8212030556
MNX175H
Dimensions : Height Width Depth
mm : 180 180 125
inch : 7.09 7.09 4.92
Materials :
Temperatures :
Temperature °C (short term) : -40 … 120
Temperature °F (short term) : -40 … 250
Temperature °F (continuous) : -40 … 175
Ratings :
Ingress protection (EN 60529): IP66; IP67;
Impact Resistance (EN 62262): IK08;
electrical_insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 746C
Flammability Rating : UL 94 V0
Glow Wire Test (IEC 695-2-1) °C : 960C
UL Type Type 1, 4, 4X, 6
Certificates :
MNX_CertificateofCompliance
