Windows/HMI protection / Inspection protection windows / AR IPW 1210 BT

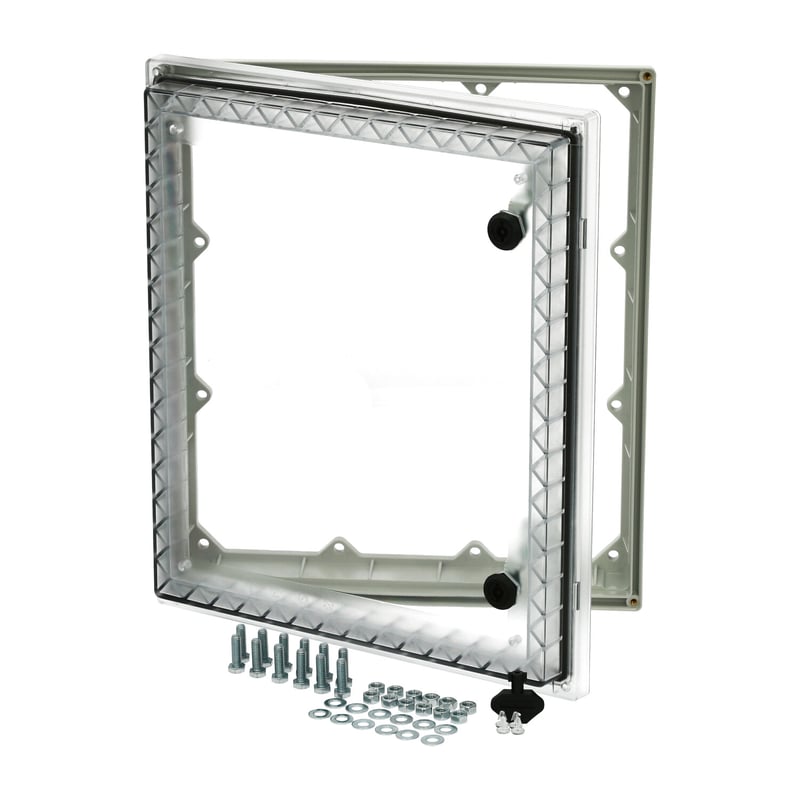

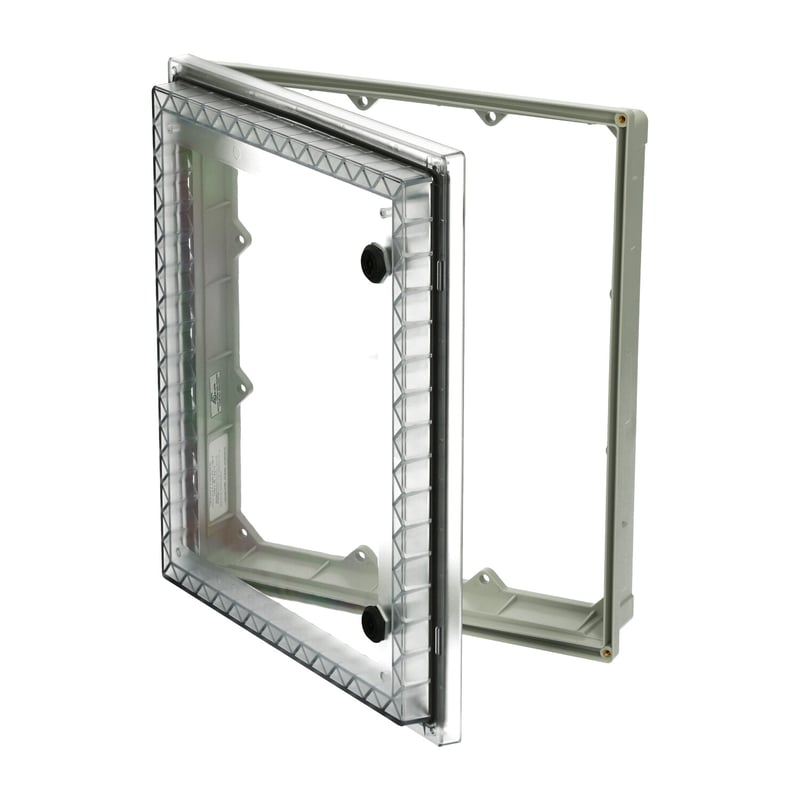

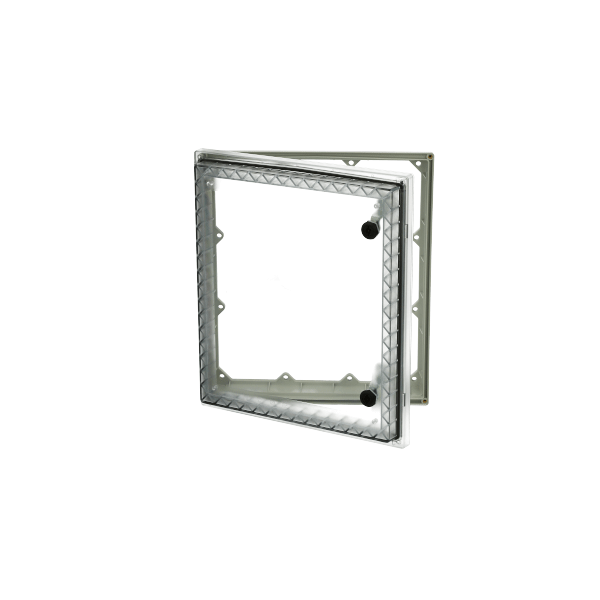

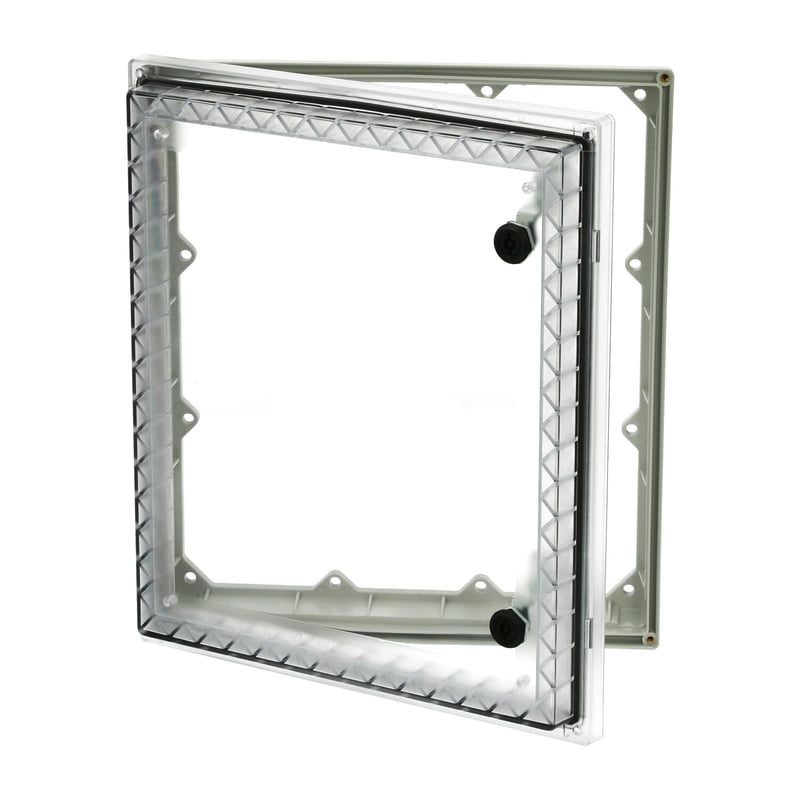

AR IPW 1210 BT 8561824

Dimensions 342 x 295 x 88

Dimensions 13.46 x 11.61 x 3.46

  • IP66; IK09
Technical data
Product:

Product nr : 8561824

Description : IPW Inspection Protection window,

Remarks : 342x295x88 mm, DB3 lock, Transparent cover

Package : 1

Unit : Piece

EAN : 6418074088741

Electric No. Denmark : 8212096833

ETIM : EC002527

Dimensions :

Height (mm) : 342

Width (mm) : 295

Depth (mm) : 88

Height (inch) : 13.46

Width (inch) : 11.61

Depth (inch) : 3.46

Materials :

Material : Polycarbonate

Temperatures :

Temperature °C : -40 … 80 °C

Temperature °F : -40 … 175

Ratings :

Ingress Protection (EN 60529): IP66

Impact Resistance (EN 62262): IK09

Halogen free (DIN/VDE 0472, Part 815) : Yes

UV resistance : UL 746C

Flammability Rating : UL 94 V0

Glow Wire Test (IEC 60695): 960C

UL Type : NEMA 4, 4X, 12 and 13

Product is connected to following catalogues :

Windows/HMI protection / Inspection protection windows / AR IPW 1210 BT

CAD Files
Certificates and Declarations
Contact

AR IPW 1210 BT

Fibox

Sample image

Order symbol : AR IPW 1210 BT

Product nr : 8561824

Description : IPW Inspection Protection window,

Remarks : 342x295x88 mm, DB3 lock, Transparent cover

EAN : 6418074088741

El. number :

  • Denmark : 8212096833
Dimensions : Height Width Depth
mm : 342 295 88
inch : 13.46 11.61 3.46
Materials :
Material : Polycarbonate
Temperatures :
Temperature °C (short term) : -40 … 120
Temperature °C (continuous) : -40 … 80 °C
Temperature °F (short term) : -40 … 250
Temperature °F (continuous) : -40 … 175
Ratings :
Ingress protection (EN 60529): IP66;
Impact Resistance (EN 62262): IK09;
electrical_insulation : Not insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 746C
Flammability Rating : UL 94 V0
Glow Wire Test (IEC 695-2-1) °C : 960C
UL Type NEMA 4, 4X, 12 and 13
Certificates :
ARCA_CertificateofCompliance
