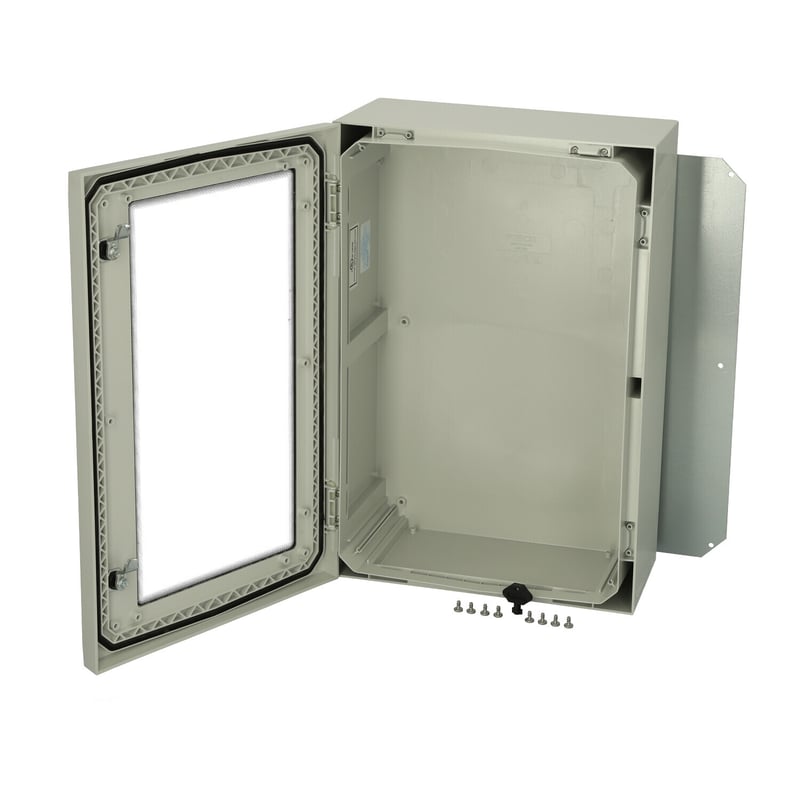

Cabinet base. door with PUR gasket. mounting plate. screws for mounting plate. 3mm double bit lock(s) with key. S versions with swinghandle 2-point locking system. Door guide included.
![ARCA 604021W product image 1](https://www.fibox.com/hs-fs/hubfs/assets/8120132_ARCA_406021W_2_72dpi.jpg?length=393&name=8120132_ARCA_406021W_2_72dpi.jpg)
![ARCA 604021W product image 2](https://www.fibox.com/hs-fs/hubfs/assets/8120132_ARCA_406021W_3_72dpi.jpg?length=393&name=8120132_ARCA_406021W_3_72dpi.jpg)
![ARCA 604021W product image 3](https://www.fibox.com/hs-fs/hubfs/assets/8120132_ARCA_604021W_2_72dpi.jpg?length=393&name=8120132_ARCA_604021W_2_72dpi.jpg)
![ARCA 604021W product image 4](https://www.fibox.com/hs-fs/hubfs/assets/8120132_ARCA_406021W_1_72dpi.jpg?length=393&name=8120132_ARCA_406021W_1_72dpi.jpg)
![ARCA 604021W product image 5](https://www.fibox.com/hs-fs/hubfs/assets/8120132_ARCA_604021W_1_72dpi.jpg?length=393&name=8120132_ARCA_604021W_1_72dpi.jpg)
![ARCA 604021W product image 11](https://www.fibox.com/hs-fs/hubfs/assets/8120132_ARCA_604021W_3_72dpi.jpg?length=393&name=8120132_ARCA_604021W_3_72dpi.jpg)
![ARCA 604021W product image 1](https://www.fibox.com/hs-fs/hubfs/assets/8120132_ARCA_406021W%20360_ANIMA_SMALL.gif?length=393&name=8120132_ARCA_406021W%20360_ANIMA_SMALL.gif)
![ARCA 604021W product image 4](https://www.fibox.com/hs-fs/hubfs/assets/8120132_ARCA_604021W%20360_ANIMA_SMALL.gif?length=393&name=8120132_ARCA_604021W%20360_ANIMA_SMALL.gif)
![ARCA 604021W thumbnail image 1](https://www.fibox.com/hs-fs/hubfs/assets/8120132_ARCA_406021W_2_72dpi.jpg?length=52&name=8120132_ARCA_406021W_2_72dpi.jpg)
![ARCA 604021W thumbnail image 2](https://www.fibox.com/hs-fs/hubfs/assets/8120132_ARCA_406021W_3_72dpi.jpg?length=52&name=8120132_ARCA_406021W_3_72dpi.jpg)
![ARCA 604021W thumbnail image 3](https://www.fibox.com/hs-fs/hubfs/assets/8120132_ARCA_604021W_2_72dpi.jpg?length=52&name=8120132_ARCA_604021W_2_72dpi.jpg)
![ARCA 604021W thumbnail image 4](https://www.fibox.com/hs-fs/hubfs/assets/8120132_ARCA_406021W_1_72dpi.jpg?length=52&name=8120132_ARCA_406021W_1_72dpi.jpg)
![ARCA 604021W thumbnail image 5](https://www.fibox.com/hs-fs/hubfs/assets/8120132_ARCA_604021W_1_72dpi.jpg?length=52&name=8120132_ARCA_604021W_1_72dpi.jpg)
![ARCA 604021W thumbnail image 11](https://www.fibox.com/hs-fs/hubfs/assets/8120132_ARCA_604021W_3_72dpi.jpg?length=52&name=8120132_ARCA_604021W_3_72dpi.jpg)
![ARCA 604021W thumbnail image 1](https://www.fibox.com/hs-fs/hubfs/assets/8120132_ARCA_406021W%20360_ANIMA_SMALL.gif?length=52&name=8120132_ARCA_406021W%20360_ANIMA_SMALL.gif)
![ARCA 604021W thumbnail image 4](https://www.fibox.com/hs-fs/hubfs/assets/8120132_ARCA_604021W%20360_ANIMA_SMALL.gif?length=52&name=8120132_ARCA_604021W%20360_ANIMA_SMALL.gif)
ARCA IEC / ARCA 604021 / ARCA 604021W
ARCA 604021W 8120132
UL Code : UL508A
Dimensions 600 x 400 x 210
Dimensions 15.75 x 23.62 x 8.58
Including : Cabinet base. door with PUR gasket. mounting plate. screws for mounting plate. 3mm double bit lock(s) with key. S versions with swinghandle 2-point locking system. Door guide included.
- PC : IP65; IK08
Technical data
Product nr : 8120132
Description : Cabinet, PC
Remarks : Grey cover with window, 2-point locking, hinges on the long side
Package : 1
Unit : Piece
EAN : 6418074080035
SSTL number : 3423205
Electric No. Denmark : 8212091883
Electric No. Sweden : 2500152
ETIM : EC000261
Height (mm) : 600
Width (mm) : 400
Depth (mm) : 210
Height (inch) : 15.75
Width (inch) : 23.62
Depth (inch) : 8.58
Material : Polycarbonate
Base colour : RAL_7035
Cover colour : Clear transparent
Gasket material : Polyurethane
Temperature °C : -40 … 80
Temperature °F : -40 … 175
Standards EN_62208:2011__IEC_62208:2011, EN_61439-1:2011__IEC_61439-1:2011, EN_61439-4:2013__IEC_61439-4:2012
Ingress Protection (EN 60529): IP65
Impact Resistance (EN 62262): IK08
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 746C
Flammability Rating : UL 94 5VA
Glow Wire Test (IEC 60695): 960C
ARCA IEC / ARCA 604021 / ARCA 604021W
Dimensional Drawings
CAD Files
Please note, that we need you permission in order for you to view the CAD files.
Certificates and Declarations
Catalogues
Contact
Accessories
ARCA 604021W
![Fibox Fibox](https://www.fibox.com/hs-fs/hubfs/fibox-2021/logo/eclosing/png/fibox_enclosing-logo-2021-rgb-07.png?width=250&name=fibox_enclosing-logo-2021-rgb-07.png)
![8120132_ARCA_406021W_2_72dpi](https://www.fibox.com/hs-fs/hubfs/assets/8120132_ARCA_406021W_2_72dpi.jpg?width=200&name=8120132_ARCA_406021W_2_72dpi.jpg)
Sample image
Order symbol : ARCA 604021W
Product nr : 8120132
UL Code : UL508A
Description : Cabinet, PC
Remarks : Grey cover with window, 2-point locking, hinges on the long side
EAN : 6418074080035
El. number :
- Finland : 3423205
- Denmark : 8212091883
- Sweden : 2500152
Including : Cabinet base. door with PUR gasket. mounting plate. screws for mounting plate. 3mm double bit lock(s) with key. S versions with swinghandle 2-point locking system. Door guide included.
![ARCA6040](https://www.fibox.com/hubfs/assets/ARCA6040.gif)
Dimensions : | Height | Width | Depth |
---|---|---|---|
mm : | 600 | 400 | 210 |
inch : | 15.75 | 23.62 | 8.58 |
Materials : | |
---|---|
Material : | Polycarbonate |
Base colour : | RAL_7035 |
Cover colour : | Clear transparent |
Gasket material : | Polyurethane |
Temperatures : | |
---|---|
Temperature °C (continuous) : | -40 … 80 |
Temperature °F (continuous) : | -40 … 175 |
Accessories : | |
---|---|
MPS ARCA 6040 |
Mounting plate (550x350x2 mm)
(550 x 350 x 2) |
RCS ARCA 6040 | Rain canopy set for size 6040 |
DRS ARCA 604021 |
DIN rail frame set
(585 x 385 x 35) |
PMK ARCA 40 |
PoleMounting kit, for pole ⌀100-300mm
(385 x 285 x 35) |
MPMP ARCA 6040 | Mounting plate multiperforated (550x350x2 mm - ⌀3.6 mm) |
MPP ARCA 6040 | Mounting plate perforated (550x350x2 mm - 26x11 mm) |
IDS ARCA 6040 |
Inner door set
(585 x 385 x 35) |
MPX ARCA 6040 |
Mounting plate (550x350 mm)
(550 x 350 x 5) |
DSP ARCA VLS |
Door stopper ARCA, vertical, left, small
(15 x 104 x 16) |
DSP ARCA VRS |
Door stopper ARCA, vertical, right, small
(15 x 104 x 16) |
Ratings : | |
---|---|
Ingress protection (EN 60529): | IP65; |
Impact Resistance (EN 62262): | IK08; |
electrical_insulation : | Totally insulated |
Halogen free (DIN/VDE 0472, Part 815) : | Yes |
UV resistance : | UL 746C |
Flammability Rating : | UL 94 5VA |
Glow Wire Test (IEC 695-2-1) °C : | 960C |
Certificates : | |
---|---|
Certificate FI 40467 |
