    Hinged cover. Base with 10-32 brass inserts, latched cover with formed in place PUR gasket, stainless hinge pin. Quick release latches. Enclosure mounting foot kit. Accessory 10-32 screws for panel mounting.

ARCA JIC / AR 664 / AR664CHTSS

AR664CHTSS 8561046

Including : Hinged cover. Base with 10-32 brass inserts, latched cover with formed in place PUR gasket, stainless hinge pin. Quick release latches. Enclosure mounting foot kit. Accessory 10-32 screws for panel mounting.

IP66; IP67; IK09

Product number : 8561046 Download product card

Technical data

Product:

Product nr : 8561046

Description : PC Enclosure

Remarks : Hinged opaque cover w/S.S. Lockable twist latch

Package : 1

Unit : Piece

EAN : 6418074066985

ETIM : EC000261

Materials :

Material : Polycarbonate

Base colour : RAL_7035

Cover colour : RAL 7035 -light grey

Gasket material : Polyurethane

Temperatures :

Temperature °C : -40 … 80

Temperature °F : -40 … 175

Ratings :

Ingress Protection (EN 60529): IP66IP67

Impact Resistance (EN 62262): IK09

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : Yes

UV resistance : UL 746C

Flammability Rating : UL 508

Glow Wire Test (IEC 60695): 960C

UL Type : 4, 4X, 6, 6P, 12, 13

Product is connected to following catalogues :

ARCA JIC / AR 664 / AR664CHTSS

Dimensional Drawings


CAD Files

Please note, that we need you permission in order for you to view the CAD files.

Contact

Accessories

AMFL6

6" Mounting Flange Set

ABP66

Painted Steel Back Panel

ASPHK6

Swing Panel Kit w/o Panel

ASPK66

Swing Panel Kit incl. Panel

ALBP66

Aluminum Back Panel

APBP66

PVC Back Panel

ASP66

Aluminum Swing Panel

ADFP66

Dead Front Panel w/ screws

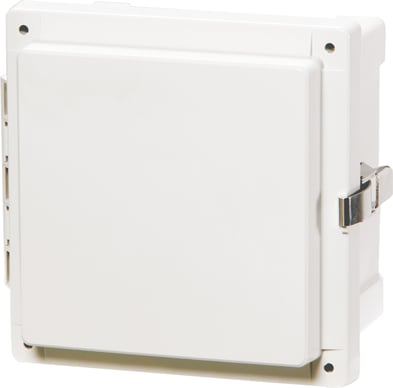

Sample image

Order symbol : AR664CHTSS

Product nr : 8561046

Description : PC Enclosure

Remarks : Hinged opaque cover w/S.S. Lockable twist latch

EAN : 6418074066985

Dimensions :	Height	Width	Depth

Materials :
Material :	Polycarbonate
Base colour :	RAL_7035
Cover colour :	RAL 7035 -light grey
Gasket material :	Polyurethane

Temperatures :
Temperature °C (continuous) :	-40 … 80
Temperature °F (continuous) :	-40 … 175

Accessories :
AMFL6	6" Mounting Flange Set
ABP66	Painted Steel Back Panel
ASPHK6	Swing Panel Kit w/o Panel
ASPK66	Swing Panel Kit incl. Panel
ALBP66	Aluminum Back Panel
APBP66	PVC Back Panel
ASP66	Aluminum Swing Panel
ADFP66	Dead Front Panel w/ screws

Ratings :
Ingress protection (EN 60529):	IP66; IP67;
Impact Resistance (EN 62262):	IK09;
electrical_insulation :	Totally insulated
Halogen free (DIN/VDE 0472, Part 815) :	Yes
UV resistance :	UL 746C
Flammability Rating :	UL 508
Glow Wire Test (IEC 695-2-1) °C :	960C
UL Type	4, 4X, 6, 6P, 12, 13

Certificates :
ARCA_CertificateofCompliance
