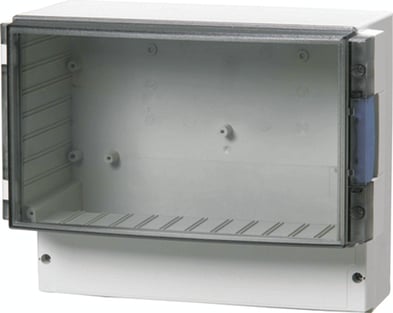

PC 25/22-3 7525134
Dimensions 280 x 219 x 156
Dimensions 11.02 x 8.62 x 6.14
- IP66; IP67; IK07
Technical data
Product nr : 7525134
Description : Enclosure, PC
Remarks : Smoked transparent hinged cover
Package : 4
Unit : Piece
EAN : 6418074059390
SSTL number : 3438232
Electric No. Denmark : 8212052411
Electric No. Sweden : 7525134
ETIM : EC000261
Height (mm) : 280
Width (mm) : 219
Depth (mm) : 156
Height (inch) : 11.02
Width (inch) : 8.62
Depth (inch) : 6.14
Material : Polycarbonate
Base colour : RAL_7035
Cover colour : Smoked grey
Gasket material : Polyurethane
Temperature °C : -40 … 80
Temperature °F : -40 … 175
Standards EN 62208:2011, IEC 62208:2011
Ingress Protection (EN 60529): IP66IP67
Impact Resistance (EN 62262): IK07
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 746C
Flammability Rating : UL 94 V0
Glow Wire Test (IEC 60695): 960C
/ /
Dimensional Drawings
CAD Files
Please note, that we need you permission in order for you to view the CAD files.
Certificates and Declarations
Catalogues
Contact
PC 25/22-3

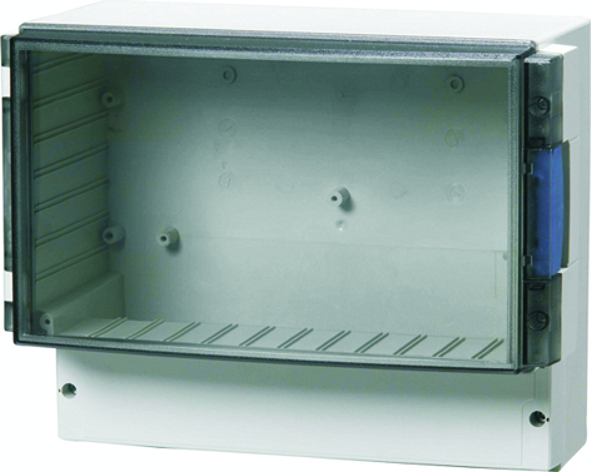

Sample image
Order symbol : PC 25/22-3
Product nr : 7525134
Description : Enclosure, PC
Remarks : Smoked transparent hinged cover
EAN : 6418074059390
El. number :
- Finland : 3438232
- Denmark : 8212052411
- Sweden : 7525134
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 280 | 219 | 156 |
| inch : | 11.02 | 8.62 | 6.14 |
| Materials : | |
|---|---|
| Material : | Polycarbonate |
| Base colour : | RAL_7035 |
| Cover colour : | Smoked grey |
| Gasket material : | Polyurethane |
| Temperatures : | |
|---|---|
| Temperature °C (continuous) : | -40 … 80 |
| Temperature °F (continuous) : | -40 … 175 |
| Accessories : | |
|---|---|
| MP 25/22 |
Mounting plate, for enclosures:
(225 x 175 x 1.5) |
| FC PC 25/22 |
Frame of PC front plate, for enclosures:
(257 x 157 x 30) |
| FP 25/22 |
Front plate (aluminium), for enclosures:
(250 x 150 x 1.5) |
| Ratings : | |
|---|---|
| Ingress protection (EN 60529): | IP66; IP67; |
| Impact Resistance (EN 62262): | IK07; |
| electrical_insulation : | Totally insulated |
| Halogen free (DIN/VDE 0472, Part 815) : | Yes |
| UV resistance : | UL 746C |
| Flammability Rating : | UL 94 V0 |
| Glow Wire Test (IEC 695-2-1) °C : | 960C |
| Certificates : | |
|---|---|
| SGSFIMKO_CARDpc | |
