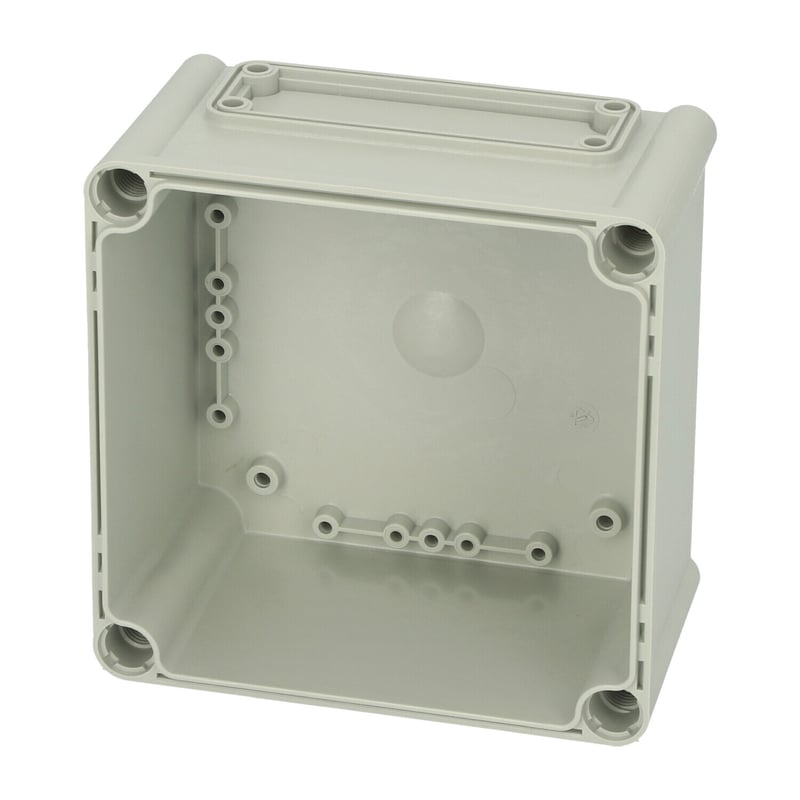

EKHS 3530543
Dimensions 190 x 190 x 100
Dimensions 7.48 x 7.48 x 3.94
Technical data
Product nr : 3530543
Description : Base, PC
Remarks : Openings; 1x size 1 flange
Package : 8
Unit : Piece
EAN : 6418074000026
SSTL number : 3420101
Electric No. Denmark : 8212006519
Electric No. Sweden : 2537802
ETIM : EC002620
Height (mm) : 190
Width (mm) : 190
Depth (mm) : 100
Height (inch) : 7.48
Width (inch) : 7.48
Depth (inch) : 3.94
Material : Polycarbonate
Base colour : RAL_7035
Temperature °C : -40 … 80
Temperature °F : -40 … 175
Electrical insulation : Totally insulated
UV resistance : UL 746C
Flammability Rating : UL 94 V0
Glow Wire Test (IEC 60695): 960C
CAD Files
Please note, that we need you permission in order for you to view the CAD files.
Certificates and Declarations
Catalogues
Contact
EKHS

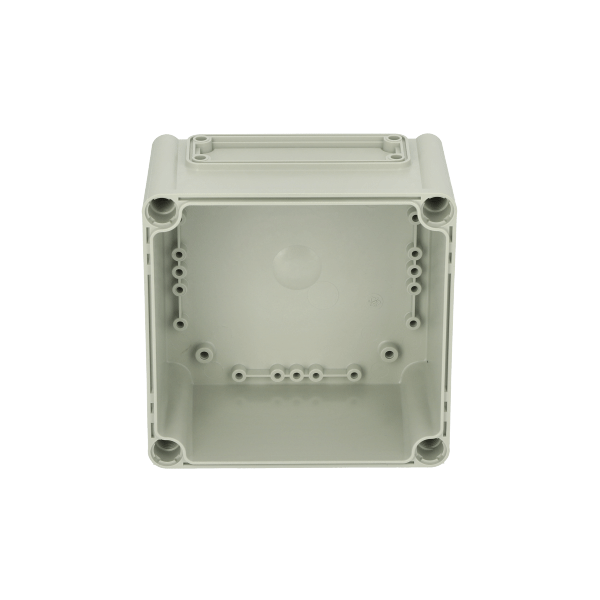

Sample image
Order symbol : EKHS
Product nr : 3530543
Description : Base, PC
Remarks : Openings; 1x size 1 flange
EAN : 6418074000026
El. number :
- Finland : 3420101
- Denmark : 8212006519
- Sweden : 2537802

Dimensions : | Height | Width | Depth |
---|---|---|---|
mm : | 190 | 190 | 100 |
inch : | 7.48 | 7.48 | 3.94 |
Materials : | |
---|---|
Material : | Polycarbonate |
Base colour : | RAL_7035 |
Temperatures : | |
---|---|
Temperature °C (continuous) : | -40 … 80 |
Temperature °F (continuous) : | -40 … 175 |
Accessories : | |
---|---|
EKHVT |
Mounting plate, for enclosures:
(158 x 158 x 1.5) |
EKV 12 |
DIN-35 Mounting rail, for enclosures:
(160 x 35 x 7) |
MPI EKH 1919 |
Multiperforated plastic mounting plate
(167 x 167 x 4) |
Ratings : | |
---|---|
electrical_insulation : | Totally insulated |
UV resistance : | UL 746C |
Flammability Rating : | UL 94 V0 |
Glow Wire Test (IEC 695-2-1) °C : | 960C |
Certificates : | |
---|---|
SGSFIMKO_EK |
© Fibox Oy, Data subject to change without notice (printed: 21.02.2025)
