    Base with PUR gasket. screws for mounting plate/DIN-rail and cover with polyamide cover screws.

MNX / MNX 175XH / PC 175/100 XHG

PC 175/100 XHG 6013340

Dimensions 180 x 180 x 100

Dimensions 7.09 x 7.09 x 3.94

Including : Base with PUR gasket. screws for mounting plate/DIN-rail and cover with polyamide cover screws.

IP66; IP67; IK08

Product number : 6013340 Download product card

Technical data

Product:

Product nr : 6013340

Description : Enclosure, PC

Remarks : High base, grey cover

Package : 4

Unit : Piece

EAN : 6418074011701

ETIM : EC000261

Dimensions :

Height (mm) : 180

Width (mm) : 180

Depth (mm) : 100

Height (inch) : 7.09

Width (inch) : 7.09

Depth (inch) : 3.94

Materials :

Material : Polycarbonate

Base colour : RAL_7035

Cover colour : RAL 7035 -light grey

Gasket material : Polyurethane

Temperatures :

Temperature °C : -40 … 80

Temperature °F : -40 … 175

Ratings :

Standards EN 62208:2011, IEC 62208:2011

Ingress Protection (EN 60529): IP66IP67

Impact Resistance (EN 62262): IK08

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : Yes

UV resistance : UL 746C

Flammability Rating : UL 94 V0

Glow Wire Test (IEC 60695): 960C

Product is connected to following catalogues :

MNX / MNX 175XH / PC 175/100 XHG

Dimensional Drawings

CAD Files

Please note, that we need you permission in order for you to view the CAD files.

Contact

Accessories

MIV 175

Mounting plate (Galvanized steel), for enclosures:
(148 x 148 x 1.5)

FP A 175/180

Front plate (Aluminium), for enclosures:
(170 x 162 x 1)

HFP 180

Front plate hinge series

MIN 15

DIN-15 Mounting rail, for enclosures:
(150 x 15 x 1)

MIV 15

DIN-35 Mounting rail, for enclosures:
(150 x 35 x 7.5)

FP 22046

Wall fastening lug (4 pcs)
(35 x 16 x 10)

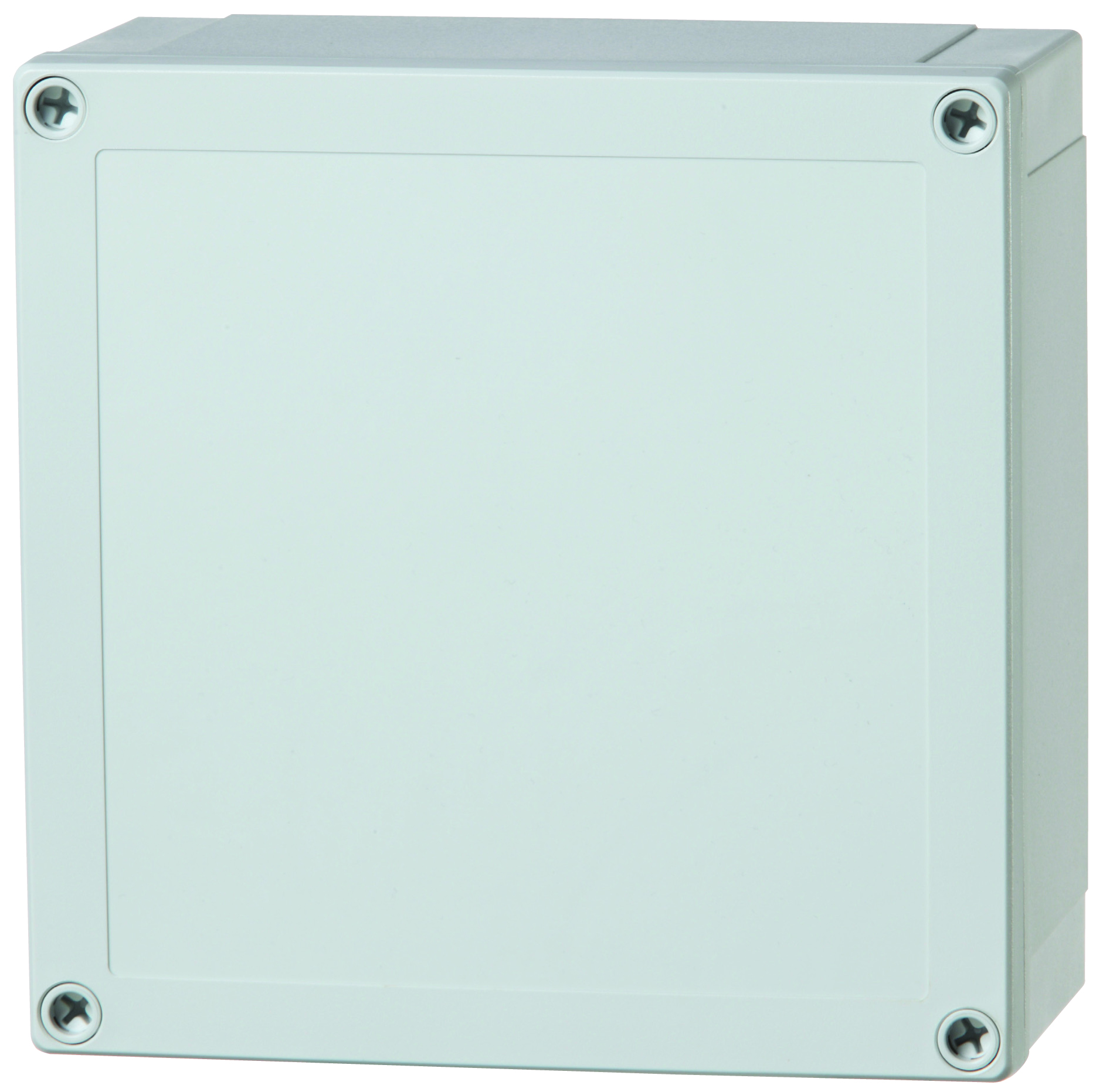

Sample image

Order symbol : PC 175/100 XHG

Product nr : 6013340

Description : Enclosure, PC

Remarks : High base, grey cover

EAN : 6418074011701
