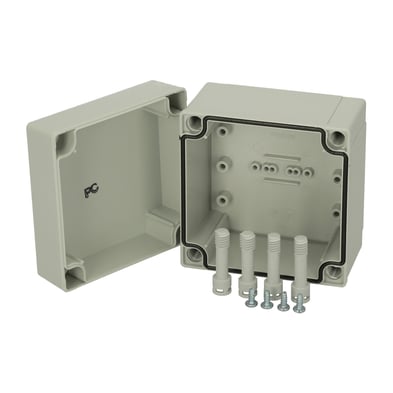

    Base with PUR gasket. screws for mounting plate/DIN-rail and cover with polyamide cover screws.

MNX / MNX 95H / PC 95/75 HG

PC 95/75 HG 6011332

UL Name : UL PC 95/75 HG

Dimensions 100 x 100 x 75

Including : Base with PUR gasket. screws for mounting plate/DIN-rail and cover with polyamide cover screws.

IP66; IP67; IK08

Product number : 6011332 Download product card

Technical data

Product:

Product nr : 6011332

Description : Enclosure, PC

Remarks : High base, grey cover

Package : 8

Unit : Piece

EAN : 6418074054647

SSTL number : 3421366

Electric No. Denmark : 8212027734

Electric No. Sweden : 6011332

ETIM : EC000261

Dimensions :

Height (mm) : 100

Width (mm) : 100

Depth (mm) : 75

Materials :

Material : Polycarbonate

Base colour : RAL_7035

Cover colour : RAL 7035 -light grey

Gasket material : TPE

Temperatures :

Temperature °C : -40 … 80

Temperature °F : -40 … 175

Ratings :

Standards EN 62208:2011, IEC 62208:2011

Ingress Protection (EN 60529): IP66IP67

Impact Resistance (EN 62262): IK08

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : Yes

UV resistance : UL 746C

Flammability Rating : UL 94 V0

Glow Wire Test (IEC 60695): 960C

Product is connected to following catalogues :

MNX / MNX 95H / PC 95/75 HG

Dimensional Drawings

CAD Files

Please note, that we need you permission in order for you to view the CAD files.

Contact

Accessories

MIN 8

DIN-15 Mounting rail, for enclosures:

B-3

DIN-35 Mounting rail, for enclosures:
(80 x 35 x 7.5)

FP 22046

Wall fastening lug (4 pcs)
(35 x 16 x 10)

MIV 95

Mounting plate (Galvanized steel), for enclosures:
(66 x 80 x 1.5)

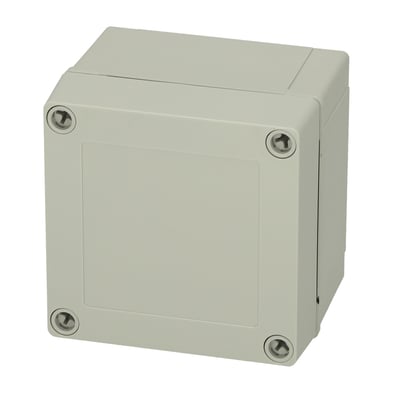

Sample image

Order symbol : PC 95/75 HG

Product nr : 6011332

UL Name : UL PC 95/75 HG

Description : Enclosure, PC

Remarks : High base, grey cover

EAN : 6418074054647

El. number :

Finland : 3421366
Denmark : 8212027734
Sweden : 6011332
