    Base with PUR gasket and screws for mounting plate/DIN-rail. cover with polyamide cover screws and plastic hinges.

Tempo / TEMPO 2016 / TA201610

TA201610 5814001

Dimensions 201 x 163 x 99

Dimensions 7.91 x 6.42 x 3.9

Including : Base with PUR gasket and screws for mounting plate/DIN-rail. cover with polyamide cover screws and plastic hinges.

IP65; IK07

Product number : 5814001 Download product card

Technical data

Product:

Product nr : 5814001

Description : Enclosure, ABS

Remarks : Grey cover

Package : 4

Unit : Piece

EAN : 6418074060730

SSTL number : 3435684

Electric No. Denmark : 8212035027

Electric No. Sweden : 5814001

ETIM : EC000261

Dimensions :

Height (mm) : 201

Width (mm) : 163

Depth (mm) : 99

Height (inch) : 7.91

Width (inch) : 6.42

Depth (inch) : 3.9

Materials :

Material : ABS

Temperatures :

Temperature °F : -40 … 140

Ratings :

Ingress Protection (EN 60529): IP65

Impact Resistance (EN 62262): IK07

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : Yes

Flammability Rating : UL 94 HB

Glow Wire Test (IEC 60695): 650C

Product is connected to following catalogues :

Tempo / TEMPO 2016 / TA201610

Dimensional Drawings


CAD Files

Please note, that we need you permission in order for you to view the CAD files.

Contact

Accessories

ARH 2320

DIN-35 Mounting rail, for enclosures:
(180 x 35 x 7.5)

MP 2016

Mounting plate, for enclosures:
(155 x 140 x 1.5)

DH-3

DIN-35 Mounting rail, for enclosures:
(140 x 35 x 7.5)

FP 10674

Wall fastening lug (2 pcs) incl. screws
(40 x 88 x 14)

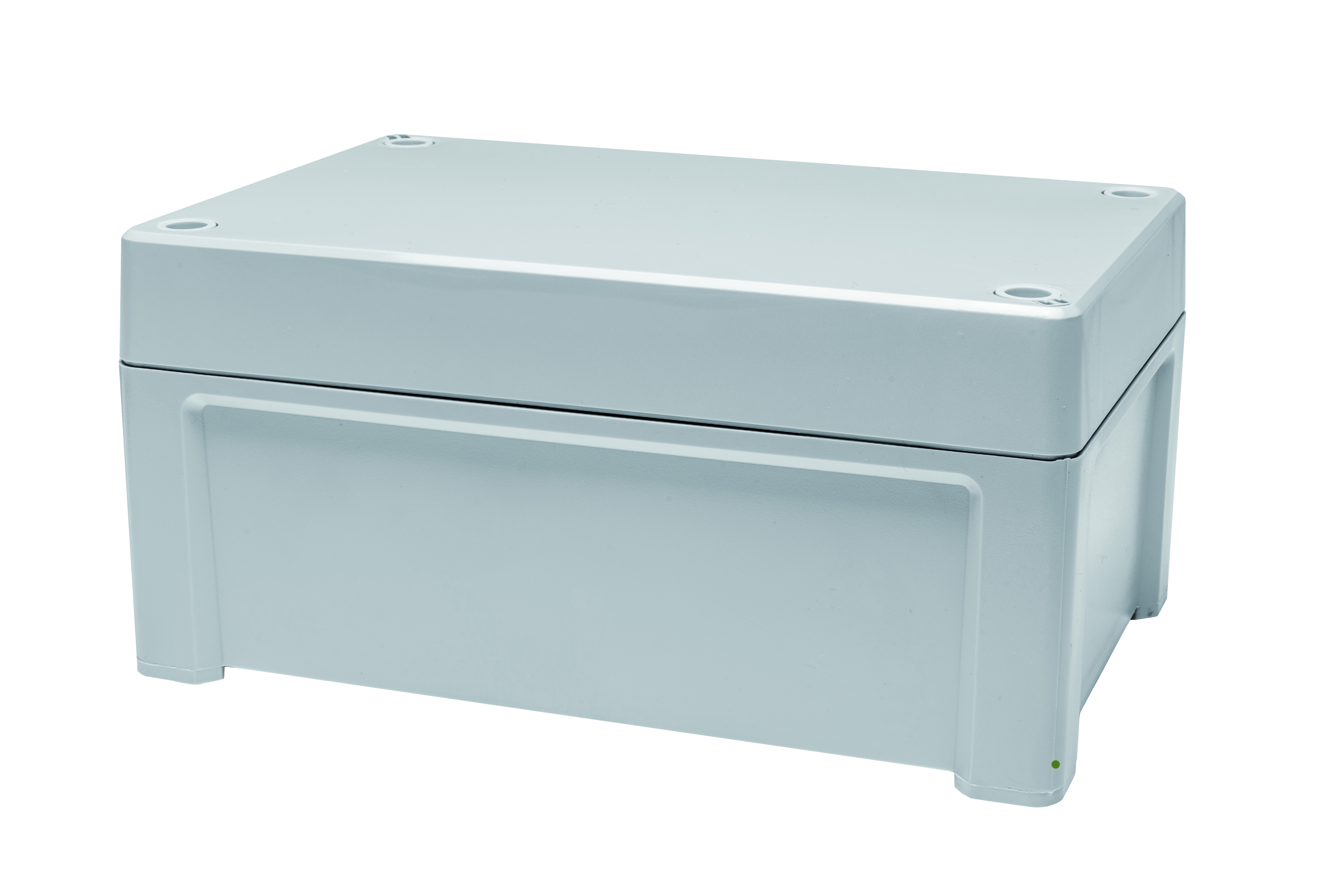

Sample image

Order symbol : TA201610

Product nr : 5814001

Description : Enclosure, ABS

Remarks : Grey cover

EAN : 6418074060730

El. number :

Finland : 3435684
Denmark : 8212035027
Sweden : 5814001
