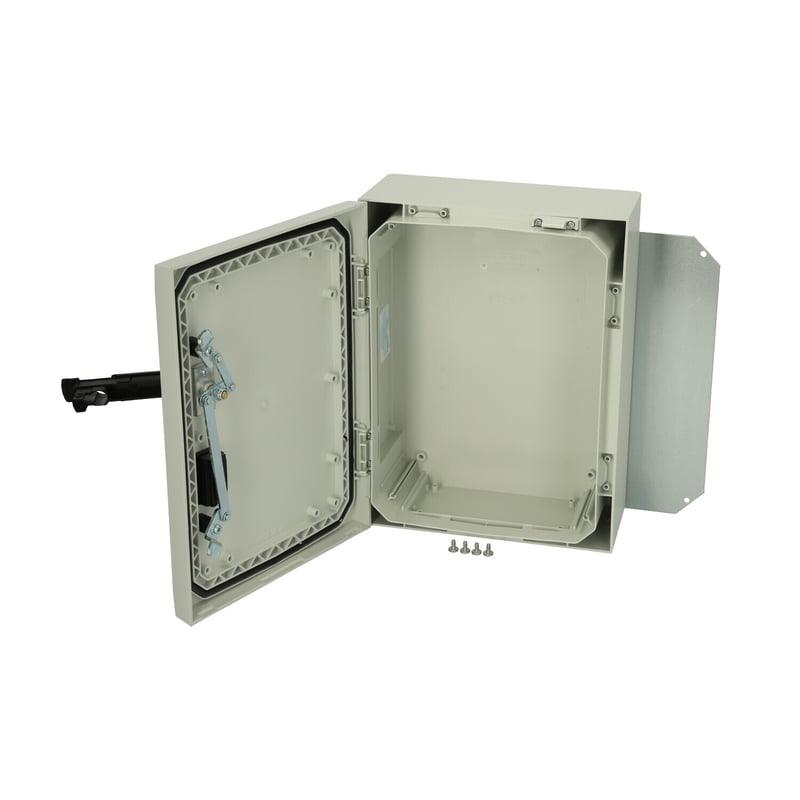

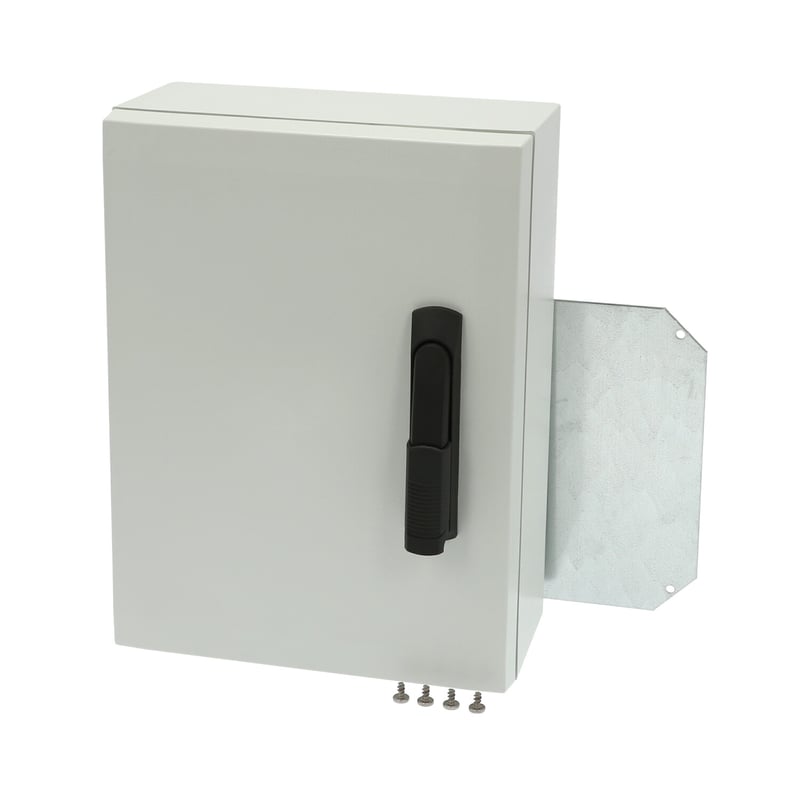

    Cabinet base. door with PUR gasket. mounting plate. screws for mounting plate. 3mm double bit lock(s) with key. S versions with swinghandle 2-point locking system. Door guide included.

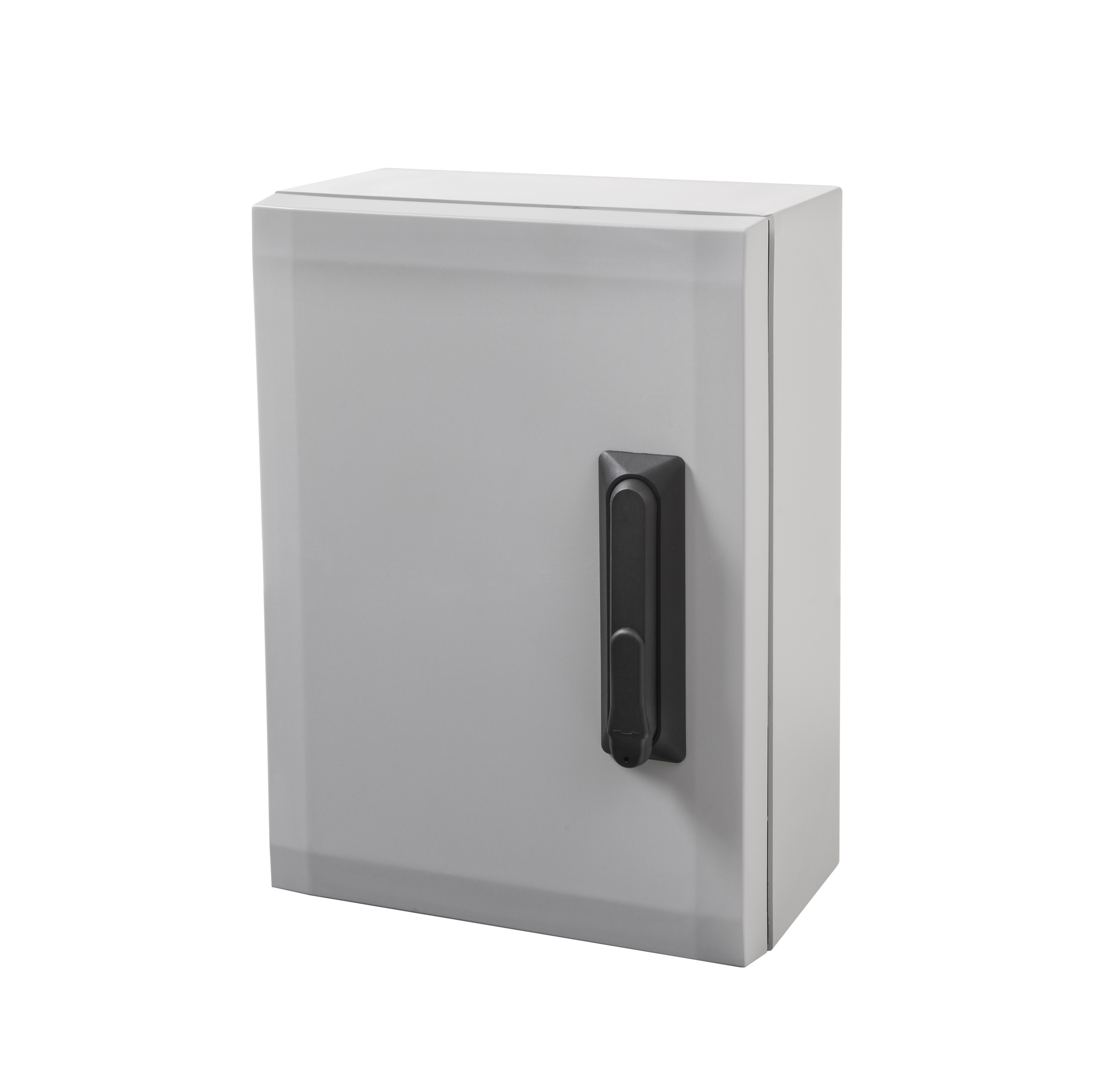

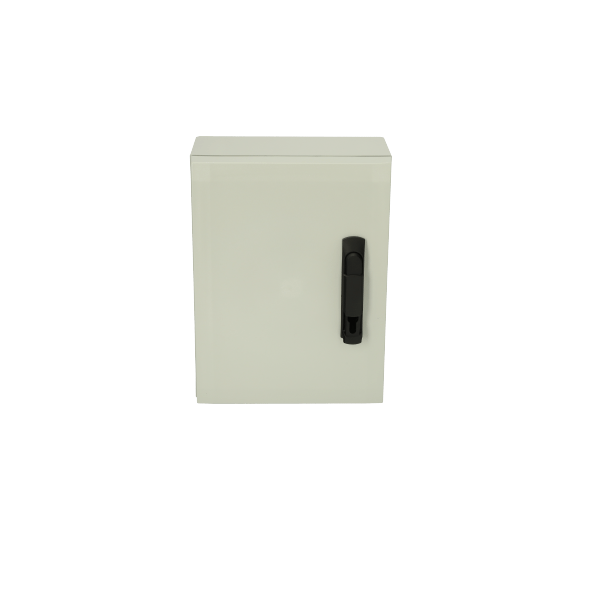

ARCA IEC / ARCA 403015 / ARCA 403015S

ARCA 403015S 8120086

UL Code : UL508A

Dimensions 400 x 300 x 150

Dimensions 15.75 x 11.81 x 5.91

Including : Cabinet base. door with PUR gasket. mounting plate. screws for mounting plate. 3mm double bit lock(s) with key. S versions with swinghandle 2-point locking system. Door guide included.

IP66; IK10

Product number : 8120086 Download product card

Technical data

Product:

Product nr : 8120086

Description : Cabinet, PC

Remarks : Grey cover, Swinghandle, hinges on the long side

Package : 1

Unit : Piece

EAN : 6418074079695

SSTL number : 3423165

Electric No. Denmark : 8212091566

Electric No. Sweden : 2507091

ETIM : EC000261

Dimensions :

Height (mm) : 400

Width (mm) : 300

Depth (mm) : 150

Height (inch) : 15.75

Width (inch) : 11.81

Depth (inch) : 5.91

Materials :

Material : Polycarbonate

Base colour : RAL_7035

Cover colour : RAL 7035 -light grey

Gasket material : Polyurethane

Temperatures :

Temperature °C : -40 … 80

Temperature °F : -40 … 175

Ratings :

Standards EN_62208:2011__IEC_62208:2011, EN_61439-1:2011__IEC_61439-1:2011, EN_61439-4:2013__IEC_61439-4:2012

Ingress Protection (EN 60529): IP66

Impact Resistance (EN 62262): IK10

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : Yes

UV resistance : UL 746C

Flammability Rating : UL 94 5VA

Glow Wire Test (IEC 60695): 960C

Product is connected to following catalogues :

ARCA IEC / ARCA 403015 / ARCA 403015S

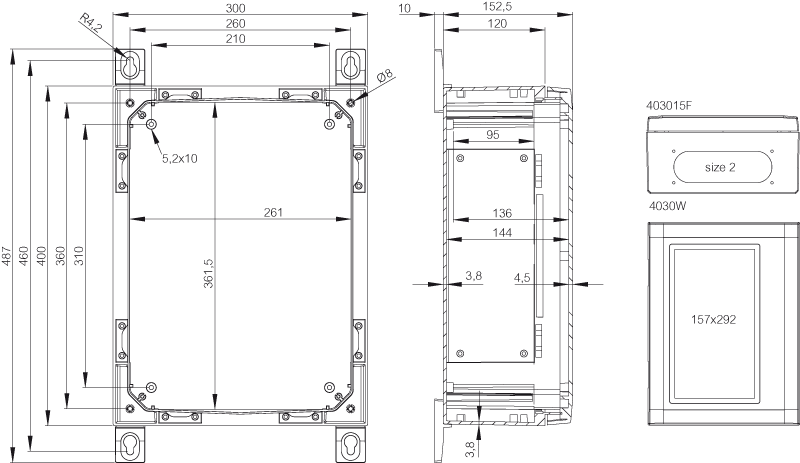

Dimensional Drawings


CAD Files

Please note, that we need you permission in order for you to view the CAD files.

Contact

Accessories

DRS ARCA 403015

DIN rail frame set
(385 x 285 x 35)

RCS ARCA 4030

Rain canopy set for size 4030
(30 x 300 x 20)

IDS ARCA 4030

Inner door set
(385 x 285 x 35)

PMK ARCA 30

PoleMounting kit, for pole ⌀100-300mm
(385 x 285 x 35)

DSP ARCA VLS

Door stopper ARCA, vertical, left, small
(15 x 104 x 16)

MPMP ARCA 4030

Mounting plate multiperforated (350x250x2 mm - ⌀3.6 mm)
(350 x 250 x 1.5)

DSP ARCA VRS

Door stopper ARCA, vertical, right, small
(15 x 104 x 16)

MPS ARCA 4030

Mounting plate (350x250x2 mm)
(350 x 250 x 2)

MPP ARCA 4030

Mounting plate perforated (350x250x2 mm - 26x11 mm)
(350 x 250 x 2)

MPX ARCA 4030

Mounting plate (350x250 mm)
(350 x 250 x 15)

Sample image

Order symbol : ARCA 403015S

Product nr : 8120086
