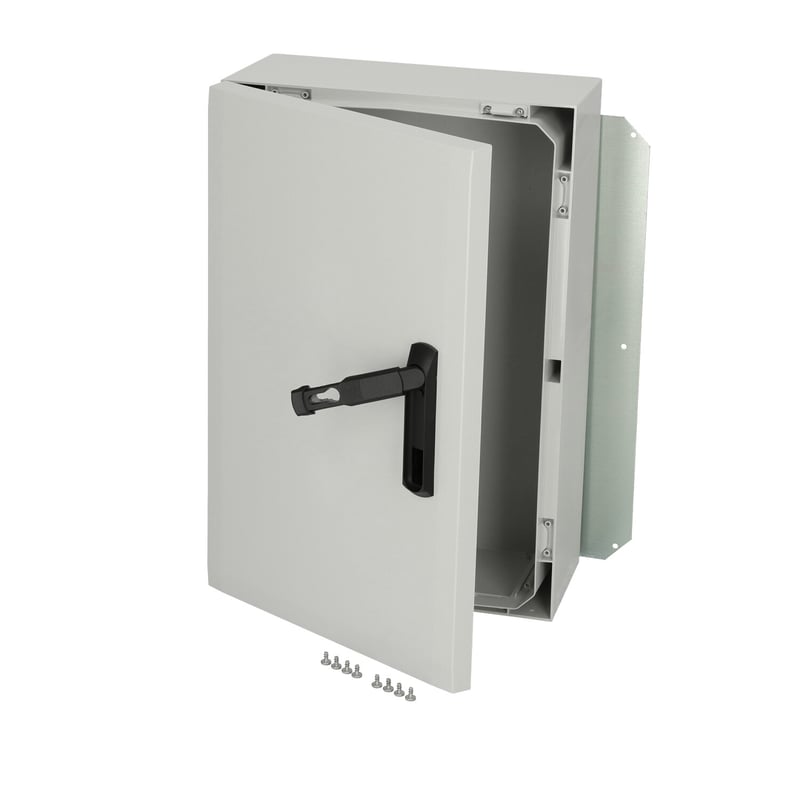

    Cabinet base. door with PUR gasket. mounting plate. screws for mounting plate. 3mm double bit lock(s) with key. S versions with swinghandle 2-point locking system. Door guide included.

ARCA IEC / ARCA 604021 / ARCA 604021S

ARCA 604021S 8120092

UL Code : UL508A

Dimensions 600 x 400 x 210

Dimensions 23.62 x 15.75 x 8.27

Including : Cabinet base. door with PUR gasket. mounting plate. screws for mounting plate. 3mm double bit lock(s) with key. S versions with swinghandle 2-point locking system. Door guide included.

IP66; IK10

Product number : 8120092 Download product card

Technical data

Product:

Product nr : 8120092

Description : Cabinet, PC

Remarks : Grey cover, Swinghandle, hinges on the long side

Package : 1

Unit : Piece

EAN : 6418074079756

SSTL number : 3423171

Electric No. Denmark : 8212091621

Electric No. Sweden : 2507109

ETIM : EC000261

Dimensions :

Height (mm) : 600

Width (mm) : 400

Depth (mm) : 210

Height (inch) : 23.62

Width (inch) : 15.75

Depth (inch) : 8.27

Materials :

Material : Polycarbonate

Base colour : RAL_7035

Cover colour : RAL 7035 -light grey

Gasket material : Polyurethane

Temperatures :

Temperature °C : -40 … 80

Temperature °F : -40 … 175

Ratings :

Standards EN_62208:2011__IEC_62208:2011, EN_61439-1:2011__IEC_61439-1:2011, EN_61439-4:2013__IEC_61439-4:2012

Ingress Protection (EN 60529): IP66

Impact Resistance (EN 62262): IK10

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : Yes

UV resistance : UL 746C

Flammability Rating : UL 94 5VA

Glow Wire Test (IEC 60695): 960C

Product is connected to following catalogues :

ARCA IEC / ARCA 604021 / ARCA 604021S

Dimensional Drawings


CAD Files

Please note, that we need you permission in order for you to view the CAD files.

Contact

Accessories

MPS ARCA 6040

Mounting plate (550x350x2 mm)
(550 x 350 x 2)

RCS ARCA 6040

Rain canopy set for size 6040
(30 x 400 x 20)

DRS ARCA 604021

DIN rail frame set
(585 x 385 x 35)

PMK ARCA 40

PoleMounting kit, for pole ⌀100-300mm
(385 x 285 x 35)

MPMP ARCA 6040

Mounting plate multiperforated (550x350x2 mm - ⌀3.6 mm)
(550 x 350 x 1.5)

MPP ARCA 6040

Mounting plate perforated (550x350x2 mm - 26x11 mm)
(550 x 350 x 2)

IDS ARCA 6040

Inner door set
(585 x 385 x 35)

MPX ARCA 6040

Mounting plate (550x350 mm)
(550 x 350 x 15)

DSP ARCA VLS

Door stopper ARCA, vertical, left, small
(15 x 104 x 16)

DSP ARCA VRS

Door stopper ARCA, vertical, right, small
(15 x 104 x 16)

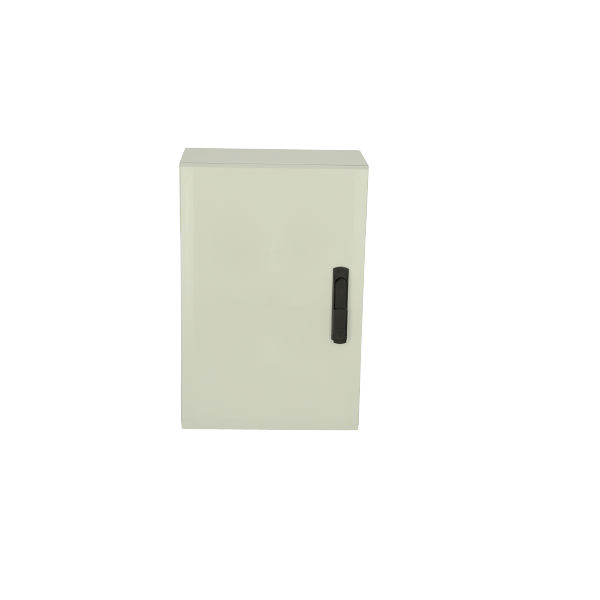

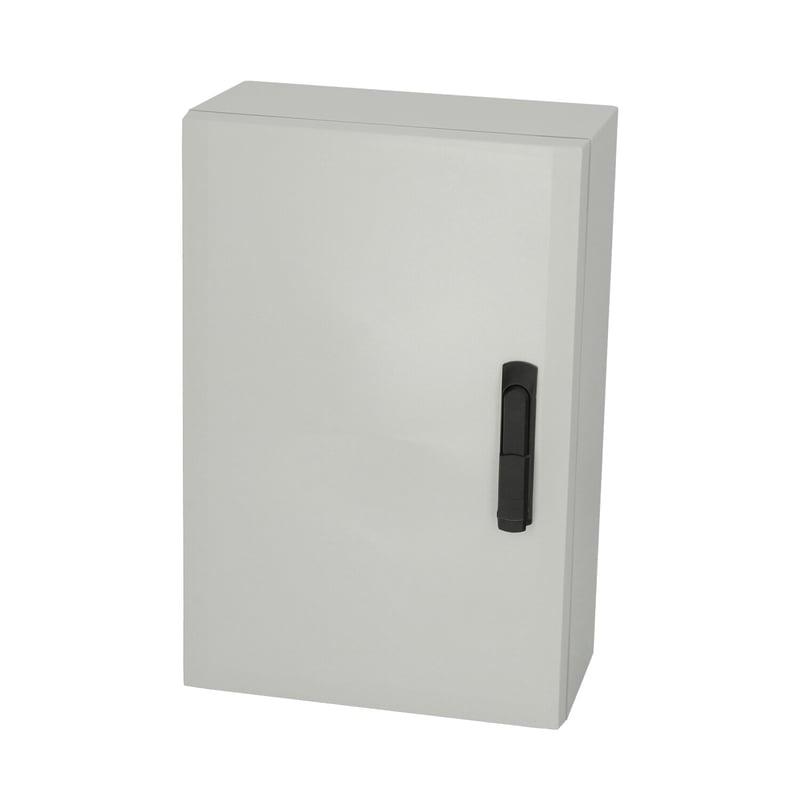

Sample image

Order symbol : ARCA 604021S

Product nr : 8120092
