    Cabinet base. door with PUR gasket. mounting plate. screws for mounting plate. 3mm double bit lock(s) with key. S versions with swinghandle 2-point locking system. Door guide included.

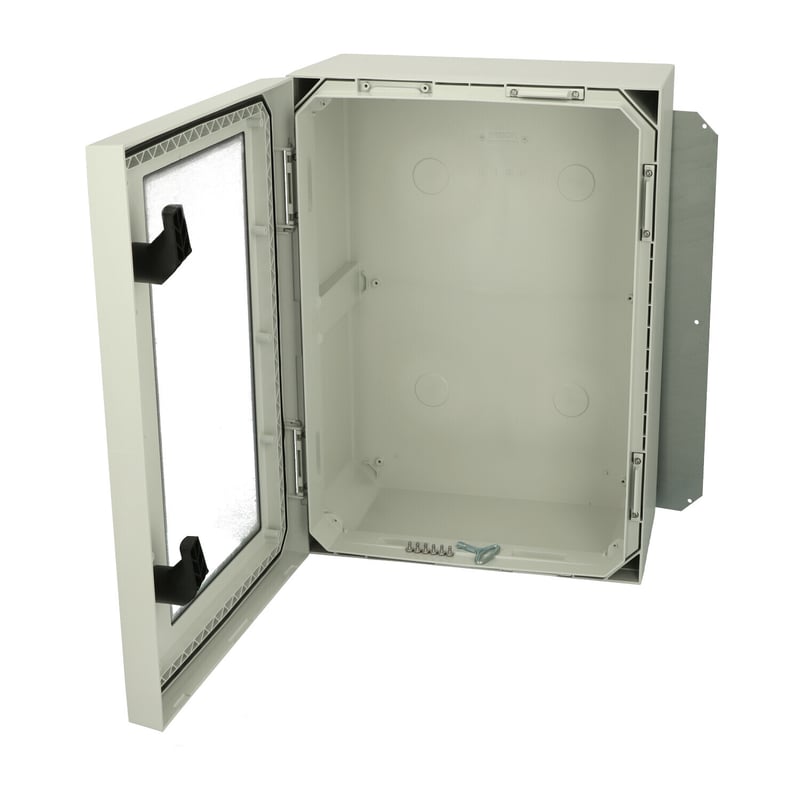

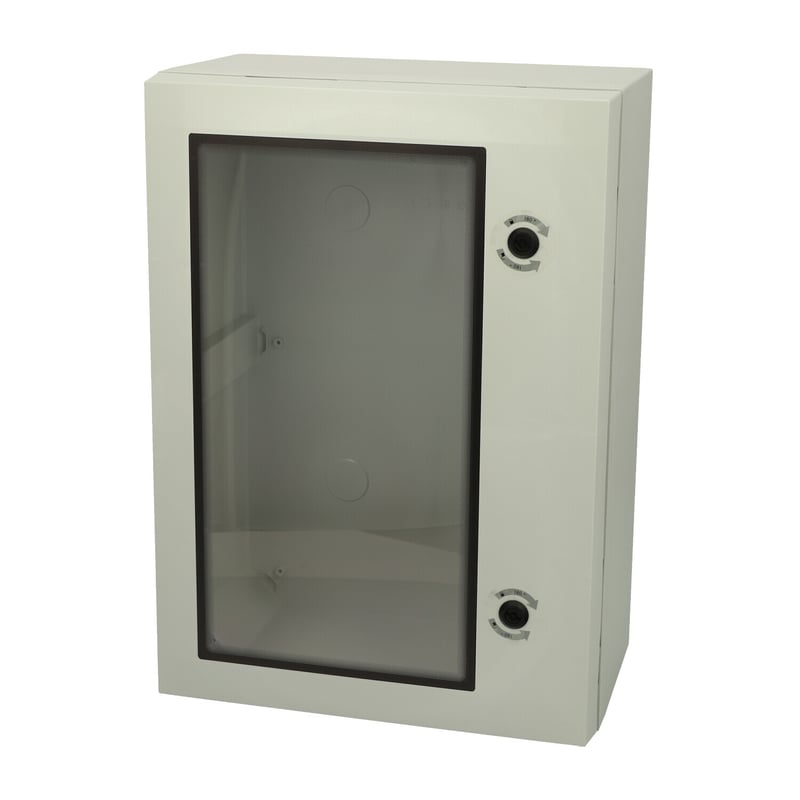

ARCA IEC / ARCA 705030 / ARCA 705030W

ARCA 705030W 8120137

UL Code : UL508A

Dimensions 700 x 500 x 300

Dimensions 27.56 x 19.69 x 11.81

Including : Cabinet base. door with PUR gasket. mounting plate. screws for mounting plate. 3mm double bit lock(s) with key. S versions with swinghandle 2-point locking system. Door guide included.

IP65; IK08

Product number : 8120137 Download product card

Technical data

Product:

Product nr : 8120137

Description : Cabinet, PC

Remarks : Grey cover with window, 2-point locking, hinges on the long side

Package : 1

Unit : Piece

EAN : 6418074080080

SSTL number : 3423213

Electric No. Denmark : 8212091935

Electric No. Sweden : 2500154

ETIM : EC000261

Dimensions :

Height (mm) : 700

Width (mm) : 500

Depth (mm) : 300

Height (inch) : 27.56

Width (inch) : 19.69

Depth (inch) : 11.81

Materials :

Material : Polycarbonate

Base colour : RAL_7035

Cover colour : Clear transparent

Gasket material : Polyurethane

Temperatures :

Temperature °C : -40 … 80

Temperature °F : -40 … 175

Ratings :

Standards EN_62208:2011__IEC_62208:2011, EN_61439-1:2011__IEC_61439-1:2011, EN_61439-4:2013__IEC_61439-4:2012

Ingress Protection (EN 60529): IP65

Impact Resistance (EN 62262): IK08

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : Yes

UV resistance : UL 746C

Flammability Rating : UL 94 5VA

Glow Wire Test (IEC 60695): 960C

Product is connected to following catalogues :

ARCA IEC / ARCA 705030 / ARCA 705030W

Dimensional Drawings


CAD Files

Please note, that we need you permission in order for you to view the CAD files.

Contact

Accessories

MPX ARCA 7050

Mounting plate (630x430 mm)
(630 x 430 x 15)

IDS ARCA 7050

Inner door set
(685 x 485 x 35)

DSP ARCA RM

Door stopper ARCA, right, midsize 5070-8060
(22 x 200 x 16)

RCS ARCA 7050

Rain canopy set for size 7050
(50 x 500 x 20)

MPP ARCA 7050

Mounting plate perforated (630x430x2 mm - 26x11 mm)
(630 x 430 x 2)

DSP ARCA LM

Door stopper ARCA, left, midsize 5070-8060
(22 x 200 x 16)

DRS ARCA 705030

DIN rail frame set
(685 x 485 x 35)

MPS ARCA 7050

Mounting plate (630x430x2 mm)
(630 x 430 x 2)

MPMP ARCA 7050

Mounting plate multiperforated (630x430x2 mm - ⌀3.6 mm)
(630 x 430 x 2)

PMK ARCA 50

PoleMounting kit, for pole ⌀100-300mm
(485 x 385 x 35)

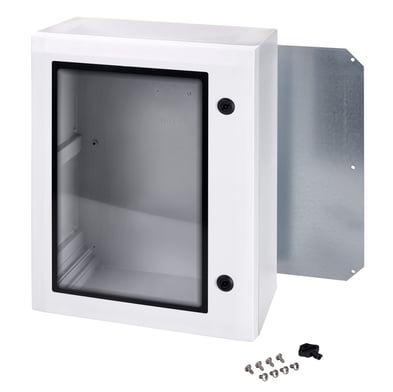

Sample image

Order symbol : ARCA 705030W

Product nr : 8120137
