    Hinged screw cover. Base with 10-32 brass inserts, cover with formed in place PUR gasket, stainless hinge pin and 2 cover screws. Enclosure mounting foot kit. Accessory 10-32 screws for panel mounting.

ARCA JIC / AR 1086 / AR1086CHSC

AR1086CHSC 8561008

Including : Hinged screw cover. Base with 10-32 brass inserts, cover with formed in place PUR gasket, stainless hinge pin and 2 cover screws. Enclosure mounting foot kit. Accessory 10-32 screws for panel mounting.

IP66; IP67; IK09

Product number : 8561008 Download product card

Technical data

Product:

Product nr : 8561008

Description : PC Enclosure

Remarks : Hinged opaque screw cover

Package : 1

Unit : Piece

EAN : 6418074066558

ETIM : EC000261

Materials :

Material : Polycarbonate

Base colour : RAL_7035

Cover colour : RAL 7035 -light grey

Gasket material : Polyurethane

Temperatures :

Temperature °C : -40 … 80

Temperature °F : -40 … 175

Ratings :

Ingress Protection (EN 60529): IP66IP67

Impact Resistance (EN 62262): IK09

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : Yes

UV resistance : UL 746C

Flammability Rating : UL 508

Glow Wire Test (IEC 60695): 960C

UL Type : 4, 4X, 6, 6P, 12, 13

Product is connected to following catalogues :

ARCA JIC / AR 1086 / AR1086CHSC

Dimensional Drawings

ARCA 10x8x5_combi.gif

CAD Files

Please note, that we need you permission in order for you to view the CAD files.

Contact

Accessories

ASPHK10

Swing Panel Kit w/o Panel

ABP108

Painted Steel Back Panel

ADFP108

Dead Front Panel w/ screws

ASP108

Aluminum Swing Panel

ASPK108

Swing Panel Kit incl. Panel

ALBP108

Aluminum Back Panel

AMFL8

8" Mounting Flange Set

APBP108

PVC Back Panel

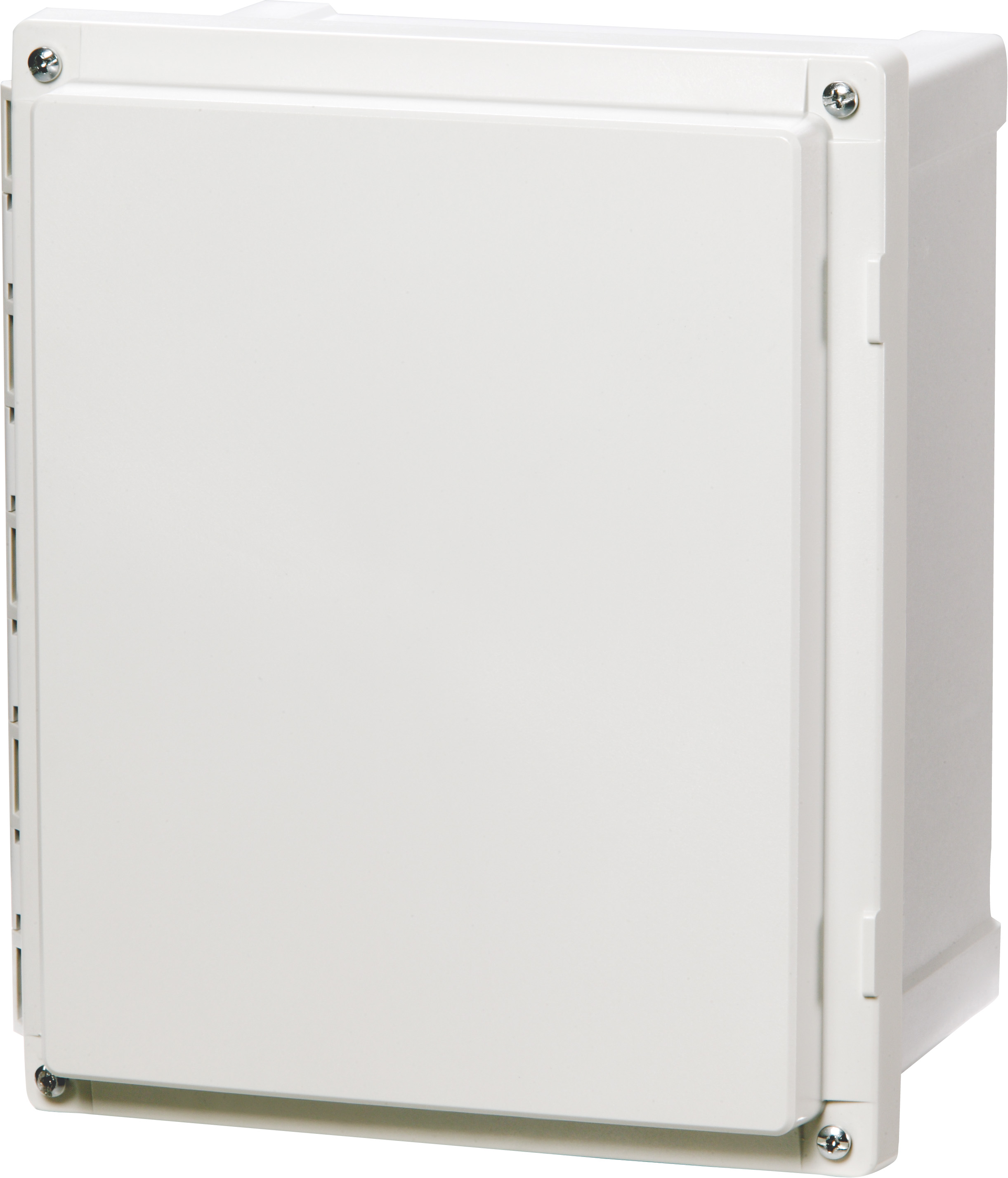

Sample image

Order symbol : AR1086CHSC

Product nr : 8561008

Description : PC Enclosure

Remarks : Hinged opaque screw cover

EAN : 6418074066558

Dimensions :	Height	Width	Depth

Materials :
Material :	Polycarbonate
Base colour :	RAL_7035
Cover colour :	RAL 7035 -light grey
Gasket material :	Polyurethane

Temperatures :
Temperature °C (continuous) :	-40 … 80
Temperature °F (continuous) :	-40 … 175

Accessories :
ASPHK10	Swing Panel Kit w/o Panel
ABP108	Painted Steel Back Panel
ADFP108	Dead Front Panel w/ screws
ASP108	Aluminum Swing Panel
ASPK108	Swing Panel Kit incl. Panel
ALBP108	Aluminum Back Panel
AMFL8	8" Mounting Flange Set
APBP108	PVC Back Panel

Ratings :
Ingress protection (EN 60529):	IP66; IP67;
Impact Resistance (EN 62262):	IK09;
electrical_insulation :	Totally insulated
Halogen free (DIN/VDE 0472, Part 815) :	Yes
UV resistance :	UL 746C
Flammability Rating :	UL 508
Glow Wire Test (IEC 695-2-1) °C :	960C
UL Type	4, 4X, 6, 6P, 12, 13

Certificates :
ARCA_CertificateofCompliance
