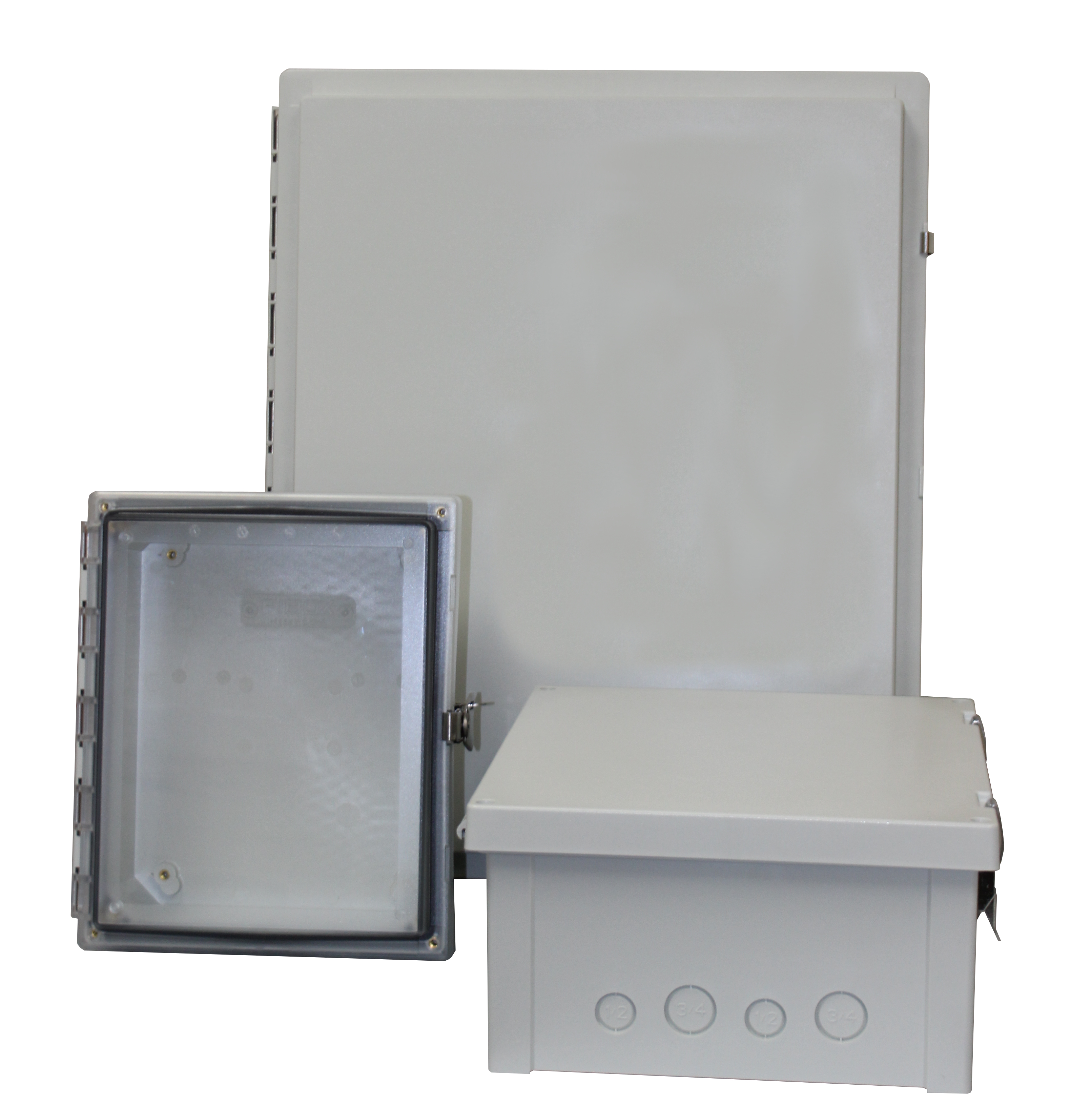

    Hinged cover. Base with 10-32 brass inserts, latched flat cover with formed in place PUR gasket, stainless hinge pin. Base with 1/2 and 3/4 inch knock-outs. Quick release latches. Enclosure mounting foot kit. Accessory 10-32 screws for panel mounting.

ARCA JIC / AR 14126 / ARK14126CHFTSS

ARK14126CHFTSS 8561574

UL Code : UL 508A

Dimensions 356 x 305 x 152

Dimensions 14.02 x 12.01 x 5.98

Including : Hinged cover. Base with 10-32 brass inserts, latched flat cover with formed in place PUR gasket, stainless hinge pin. Base with 1/2 and 3/4 inch knock-outs. Quick release latches. Enclosure mounting foot kit. Accessory 10-32 screws for panel mounting.

IP66; IP67; IK09

Product number : 8561574 Download product card

Technical data

Product:

Product nr : 8561574

Description : PC Enclosure

Remarks : Hinged opaque flat cover w/S.S. Lockable twist latch, base includes 1/2 and 3/4 inch knock-outs

Package : 1

Unit : Piece

EAN : 6418074097507

ETIM : EC000261

Dimensions :

Height (mm) : 356

Width (mm) : 305

Depth (mm) : 152

Height (inch) : 14.02

Width (inch) : 12.01

Depth (inch) : 5.98

Materials :

Material : Polycarbonate

Base colour : RAL_7035

Cover colour : RAL 7035 -light grey

Gasket material : Polyurethane

Temperatures :

Temperature °C : -40 … 80

Temperature °F : -40 … 175

Ratings :

Ingress Protection (EN 60529): IP66IP67

Impact Resistance (EN 62262): IK09

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : Yes

UV resistance : UL 746C

Flammability Rating : UL 508

Glow Wire Test (IEC 60695): 960C

UL Type : 4, 4X, 6, 6P, 12, 13

Product is connected to following catalogues :

ARCA JIC / AR 14126 / ARK14126CHFTSS

Dimensional Drawings

ARCA 14x12_combi.gif

CAD Files

Please note, that we need you permission in order for you to view the CAD files.

FAQ

Open Support & FAQ

Catalogues

Open Downloadables

Contact

Accessories

ABP1412

Painted Steel Back Panel

ASP1412

Aluminum Swing Panel

ASPHK14

Swing Panel Kit w/o Panel

AMFL12

12" Mounting Flange Set

ADFP1412

Dead Front Panel w/ screws

ALBP1412

Aluminum Back Panel

APBP1412

PVC Back Panel

ASPK1412

Swing Panel Kit incl. Panel

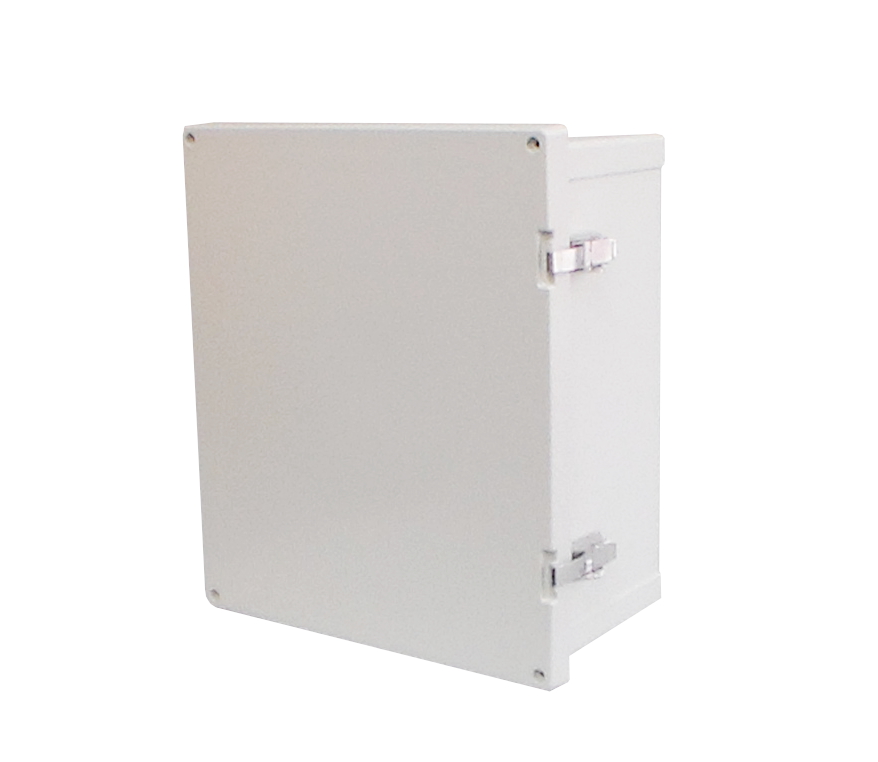

Sample image

Order symbol : ARK14126CHFTSS

Product nr : 8561574

UL Code : UL 508A

Description : PC Enclosure

Remarks : Hinged opaque flat cover w/S.S. Lockable twist latch, base includes 1/2 and 3/4 inch knock-outs

EAN : 6418074097507

Dimensions :	Height	Width	Depth
mm :	356	305	152
inch :	14.02	12.01	5.98

Materials :
Material :	Polycarbonate
Base colour :	RAL_7035
Cover colour :	RAL 7035 -light grey
Gasket material :	Polyurethane

Temperatures :
Temperature °C (continuous) :	-40 … 80
Temperature °F (continuous) :	-40 … 175

Accessories :
ABP1412	Painted Steel Back Panel
ASP1412	Aluminum Swing Panel
ASPHK14	Swing Panel Kit w/o Panel
AMFL12	12" Mounting Flange Set
ADFP1412	Dead Front Panel w/ screws
ALBP1412	Aluminum Back Panel
APBP1412	PVC Back Panel
ASPK1412	Swing Panel Kit incl. Panel

Ratings :
Ingress protection (EN 60529):	IP66; IP67;
Impact Resistance (EN 62262):	IK09;
electrical_insulation :	Totally insulated
Halogen free (DIN/VDE 0472, Part 815) :	Yes
UV resistance :	UL 746C
Flammability Rating :	UL 508
Glow Wire Test (IEC 695-2-1) °C :	960C
UL Type	4, 4X, 6, 6P, 12, 13
