    Hinged screw flat cover. Base with 10-32 brass inserts, cover with formed in place PUR gasket, stainless hinge pin and 2 cover screws. Enclosure mounting foot kit. Accessory 10-32 screws for panel mounting.

ARCA JIC / AR 14126 / AR14126CHFSCM

AR14126CHFSCM 8561697

Dimensions 356 x 305 x 152

Dimensions 14 x 12 x 6

Including : Hinged screw flat cover. Base with 10-32 brass inserts, cover with formed in place PUR gasket, stainless hinge pin and 2 cover screws. Enclosure mounting foot kit. Accessory 10-32 screws for panel mounting.

IP66; IP67; IK09

Product number : 8561697 Download product card

Technical data

Product:

Product nr : 8561697

Description : PC Enclosure

Remarks : Hinged opaque flat screw cover, and metal mounting feet

Package : 1

Unit : Piece

EAN : 6418074098702

ETIM : EC000261 Enclosure/Switchgear cabinet (empty)

Dimensions :

Height (mm) : 356

Width (mm) : 305

Depth (mm) : 152

Height (inch) : 14

Width (inch) : 12

Depth (inch) : 6

Materials :

Material : Polycarbonate

Base colour : RAL 7035 -light grey

Cover colour : RAL 7035 -light grey

Gasket material : Polyurethane

Temperatures :

Temperature °C : -40 … 80

Temperature °F : -40 … 175

Ratings :

Ingress Protection (EN 60529): IP66IP67

Impact Resistance (EN 62262): IK09

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : Yes

UV resistance : UL 746C

Flammability Rating : UL 508

Glow Wire Test (IEC 60695): 960 °C

UL Type : NEMA 4, 4X, 12 and 13

Product is connected to following catalogues :

ARCA JIC / AR 14126 / AR14126CHFSCM

CAD Files

Please note, that we need you permission in order for you to view the CAD files.

FAQ

Open Support & FAQ

Catalogues

Open Downloadables

Contact

Accessories

ABP1412

Painted Steel Back Panel

ASP1412

Aluminum Swing Panel

ASPHK14

Swing Panel Kit w/o Panel

AMFL12

12" Mounting Flange Set

ADFP1412

Dead Front Panel w/ screws

ALBP1412

Aluminum Back Panel

APBP1412

PVC Back Panel

ASPK1412

Swing Panel Kit incl. Panel

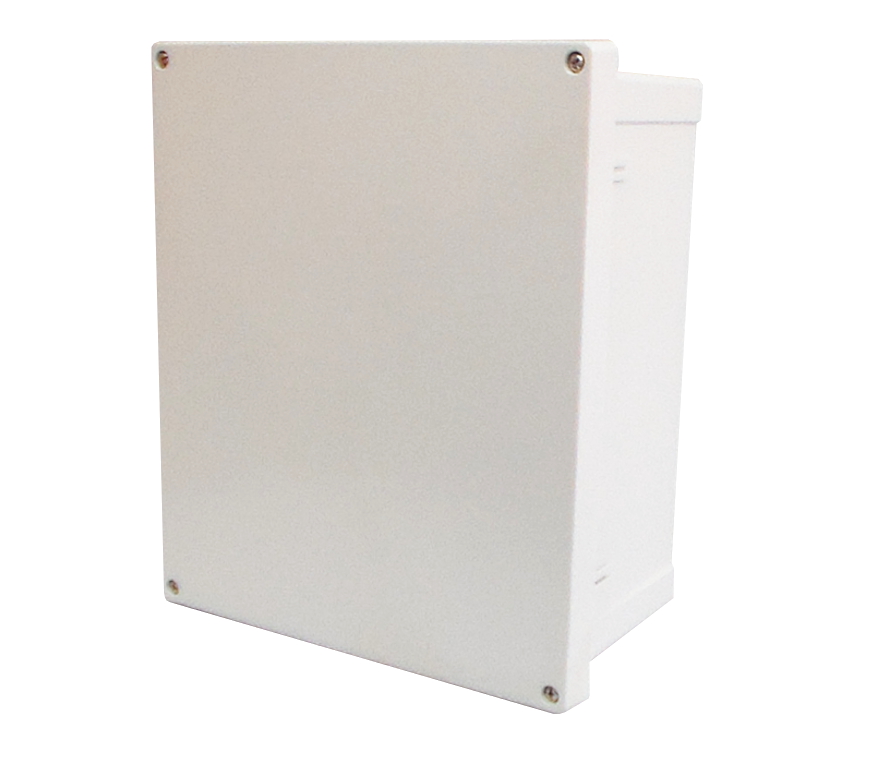

Sample image

Order symbol : AR14126CHFSCM

Product nr : 8561697

Description : PC Enclosure

Remarks : Hinged opaque flat screw cover, and metal mounting feet

EAN : 6418074098702

Dimensions :	Height	Width	Depth
mm :	356	305	152
inch :	14	12	6

Materials :
Material :	Polycarbonate
Base colour :	RAL 7035 -light grey
Cover colour :	RAL 7035 -light grey
Gasket material :	Polyurethane

Temperatures :
Temperature °C (continuous) :	-40 … 80
Temperature °F (continuous) :	-40 … 175

Accessories :
ABP1412	Painted Steel Back Panel
ASP1412	Aluminum Swing Panel
ASPHK14	Swing Panel Kit w/o Panel
AMFL12	12" Mounting Flange Set
ADFP1412	Dead Front Panel w/ screws
ALBP1412	Aluminum Back Panel
APBP1412	PVC Back Panel
ASPK1412	Swing Panel Kit incl. Panel

Ratings :
Ingress protection (EN 60529):	IP66; IP67;
Impact Resistance (EN 62262):	IK09;
electrical_insulation :	Totally insulated
Halogen free (DIN/VDE 0472, Part 815) :	Yes
UV resistance :	UL 746C
Flammability Rating :	UL 508
Glow Wire Test (IEC 695-2-1) °C :	960 °C
UL Type	NEMA 4, 4X, 12 and 13
