    Hinged cover. Base with 10-32 brass inserts, latched cover with formed in place PUR gasket, stainless hinge pin. Quick release latches. Enclosure mounting foot kit. Accessory 10-32 screws for panel mounting.

ARCA JIC / AR 14127 / AR14127CHSS

AR14127CHSS 8561045

Including : Hinged cover. Base with 10-32 brass inserts, latched cover with formed in place PUR gasket, stainless hinge pin. Quick release latches. Enclosure mounting foot kit. Accessory 10-32 screws for panel mounting.

IP66; IP67; IK09

Product number : 8561045 Download product card

Technical data

Product:

Product nr : 8561045

Description : PC Enclosure

Remarks : Hinged opaque cover w/S.S. Quick release latch

Package : 1

Unit : Piece

EAN : 6418074067050

ETIM : EC000261

Materials :

Material : Polycarbonate

Base colour : RAL_7035

Cover colour : RAL 7035 -light grey

Gasket material : Polyurethane

Temperatures :

Temperature °C : -40 … 80

Temperature °F : -40 … 175

Ratings :

Ingress Protection (EN 60529): IP66IP67

Impact Resistance (EN 62262): IK09

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : Yes

UV resistance : UL 746C

Flammability Rating : UL 508

Glow Wire Test (IEC 60695): 960C

UL Type : 4, 4X, 6, 6P, 12, 13

Product is connected to following catalogues :

ARCA JIC / AR 14127 / AR14127CHSS

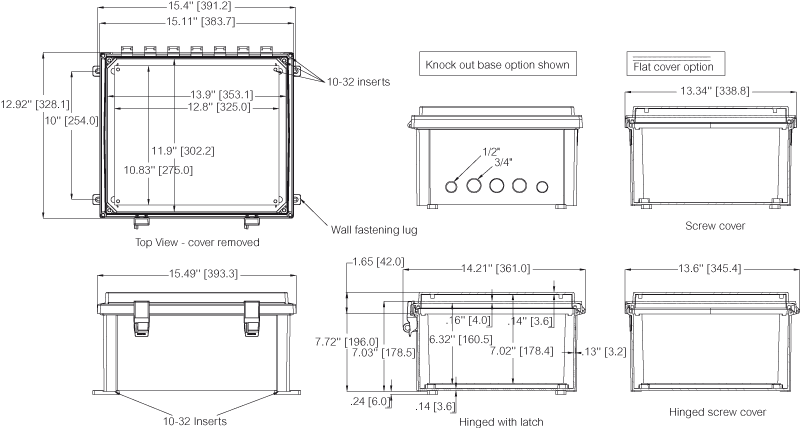

Dimensional Drawings

ARCA 14x12_combi.gif

CAD Files

Please note, that we need you permission in order for you to view the CAD files.

Contact

Accessories

ABP1412

Painted Steel Back Panel

ASP1412

Aluminum Swing Panel

ASPHK14

Swing Panel Kit w/o Panel

AMFL12

12" Mounting Flange Set

ADFP1412

Dead Front Panel w/ screws

ALBP1412

Aluminum Back Panel

APBP1412

PVC Back Panel

ASPK1412

Swing Panel Kit incl. Panel

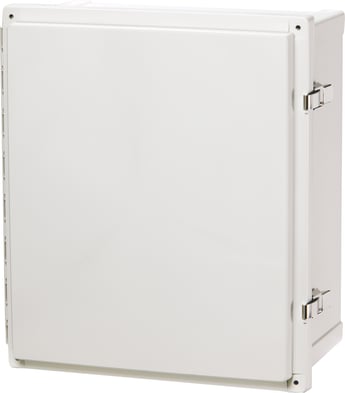

Sample image

Order symbol : AR14127CHSS

Product nr : 8561045

Description : PC Enclosure

Remarks : Hinged opaque cover w/S.S. Quick release latch

EAN : 6418074067050

Dimensions :	Height	Width	Depth

Materials :
Material :	Polycarbonate
Base colour :	RAL_7035
Cover colour :	RAL 7035 -light grey
Gasket material :	Polyurethane

Temperatures :
Temperature °C (continuous) :	-40 … 80
Temperature °F (continuous) :	-40 … 175

Accessories :
ABP1412	Painted Steel Back Panel
ASP1412	Aluminum Swing Panel
ASPHK14	Swing Panel Kit w/o Panel
AMFL12	12" Mounting Flange Set
ADFP1412	Dead Front Panel w/ screws
ALBP1412	Aluminum Back Panel
APBP1412	PVC Back Panel
ASPK1412	Swing Panel Kit incl. Panel

Ratings :
Ingress protection (EN 60529):	IP66; IP67;
Impact Resistance (EN 62262):	IK09;
electrical_insulation :	Totally insulated
Halogen free (DIN/VDE 0472, Part 815) :	Yes
UV resistance :	UL 746C
Flammability Rating :	UL 508
Glow Wire Test (IEC 695-2-1) °C :	960C
UL Type	4, 4X, 6, 6P, 12, 13

Certificates :
ARCA_CertificateofCompliance
