    Hinged cover. Base with 10-32 brass inserts, latched flat cover with formed in place PUR gasket, stainless hinge pin. Base with 1/2 and 3/4 inch knock-outs. Quick release latches. Enclosure mounting foot kit. Accessory 10-32 screws for panel mounting.

ARCA JIC / AR 864 / ARK864CHFSSL

ARK864CHFSSL 8561408

UL Code : UL 508A

Dimensions 203 x 152 x 102

Dimensions 7.99 x 5.98 x 4.02

Including : Hinged cover. Base with 10-32 brass inserts, latched flat cover with formed in place PUR gasket, stainless hinge pin. Base with 1/2 and 3/4 inch knock-outs. Quick release latches. Enclosure mounting foot kit. Accessory 10-32 screws for panel mounting.

IP66; IP67; IK09

Product number : 8561408 Download product card

Technical data

Product:

Product nr : 8561408

Description : PC Enclosure

Remarks : Hinged opaque flat cover w/S.S. Lockable latch. Base includes 1/2 and 3/4 inch knock-outs

Package : 1

Unit : Piece

EAN : 6418074095848

ETIM : EC000261

Dimensions :

Height (mm) : 203

Width (mm) : 152

Depth (mm) : 102

Height (inch) : 7.99

Width (inch) : 5.98

Depth (inch) : 4.02

Materials :

Material : Polycarbonate

Base colour : RAL_7035

Cover colour : RAL 7035 -light grey

Gasket material : Polyurethane

Temperatures :

Temperature °C : -40 … 80

Temperature °F : -40 … 175

Ratings :

Ingress Protection (EN 60529): IP66IP67

Impact Resistance (EN 62262): IK09

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : Yes

UV resistance : UL 746C

Flammability Rating : UL 508

Glow Wire Test (IEC 60695): 960C

UL Type : 4, 4X, 6, 6P, 12, 13

Product is connected to following catalogues :

ARCA JIC / AR 864 / ARK864CHFSSL

Dimensional Drawings


CAD Files

Please note, that we need you permission in order for you to view the CAD files.

FAQ

Open Support & FAQ

Catalogues

Open Downloadables

Contact

Accessories

AMFL6

6" Mounting Flange Set

ASP86

Aluminum Swing Panel

ASPK86

Swing Panel Kit incl. Panel

APBP86

PVC Back Panel

ASPHK8

Swing Panel Kit w/o Panel

ABP86

Painted Steel Back Panel

ALBP86

Aluminum Back Panel

ADFP86

Dead Front Panel w/ screws

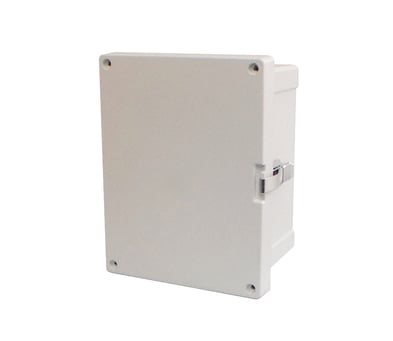

Sample image

Order symbol : ARK864CHFSSL

Product nr : 8561408

UL Code : UL 508A

Description : PC Enclosure

Remarks : Hinged opaque flat cover w/S.S. Lockable latch. Base includes 1/2 and 3/4 inch knock-outs

EAN : 6418074095848

Dimensions :	Height	Width	Depth
mm :	203	152	102
inch :	7.99	5.98	4.02

Materials :
Material :	Polycarbonate
Base colour :	RAL_7035
Cover colour :	RAL 7035 -light grey
Gasket material :	Polyurethane

Temperatures :
Temperature °C (continuous) :	-40 … 80
Temperature °F (continuous) :	-40 … 175

Accessories :
AMFL6	6" Mounting Flange Set
ASP86	Aluminum Swing Panel
ASPK86	Swing Panel Kit incl. Panel
APBP86	PVC Back Panel
ASPHK8	Swing Panel Kit w/o Panel
ABP86	Painted Steel Back Panel
ALBP86	Aluminum Back Panel
ADFP86	Dead Front Panel w/ screws

Ratings :
Ingress protection (EN 60529):	IP66; IP67;
Impact Resistance (EN 62262):	IK09;
electrical_insulation :	Totally insulated
Halogen free (DIN/VDE 0472, Part 815) :	Yes
UV resistance :	UL 746C
Flammability Rating :	UL 508
Glow Wire Test (IEC 695-2-1) °C :	960C
UL Type	4, 4X, 6, 6P, 12, 13
