    Hinged screw cover. Base with 10-32 brass inserts, cover with formed in place PUR gasket, stainless hinge pin and 2 cover screws. Enclosure mounting foot kit. Accessory 10-32 screws for panel mounting.

ARCA JIC / AR 884 / AR884CHSCT

AR884CHSCT 8561092

Including : Hinged screw cover. Base with 10-32 brass inserts, cover with formed in place PUR gasket, stainless hinge pin and 2 cover screws. Enclosure mounting foot kit. Accessory 10-32 screws for panel mounting.

IP66; IP67; IK09

Product number : 8561092 Download product card

Technical data

Product:

Product nr : 8561092

Description : PC Enclosure

Remarks : Hinged transparent screw cover

Package : 1

Unit : Piece

EAN : 6418074066527

ETIM : EC000261

Materials :

Material : Polycarbonate

Base colour : RAL_7035

Cover colour : RAL 7035 -light grey

Gasket material : Polyurethane

Temperatures :

Temperature °C : -40 … 80

Temperature °F : -40 … 175

Ratings :

Ingress Protection (EN 60529): IP66IP67

Impact Resistance (EN 62262): IK09

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : Yes

UV resistance : UL 746C

Flammability Rating : UL 508

Glow Wire Test (IEC 60695): 960C

UL Type : 4, 4X, 6, 6P, 12, 13

Product is connected to following catalogues :

ARCA JIC / AR 884 / AR884CHSCT

Dimensional Drawings


CAD Files

Please note, that we need you permission in order for you to view the CAD files.

Contact

Accessories

ALBP88

Aluminum Back Panel

ABP88

Painted Steel Back Panel

ASP88

Aluminum Swing Panel

ASPHK8

Swing Panel Kit w/o Panel

APBP88

PVC Back Panel

ADFP88

Dead Front Panel w/ screws

ASPK88

Swing Panel Kit incl. Panel

AMFL8

8" Mounting Flange Set

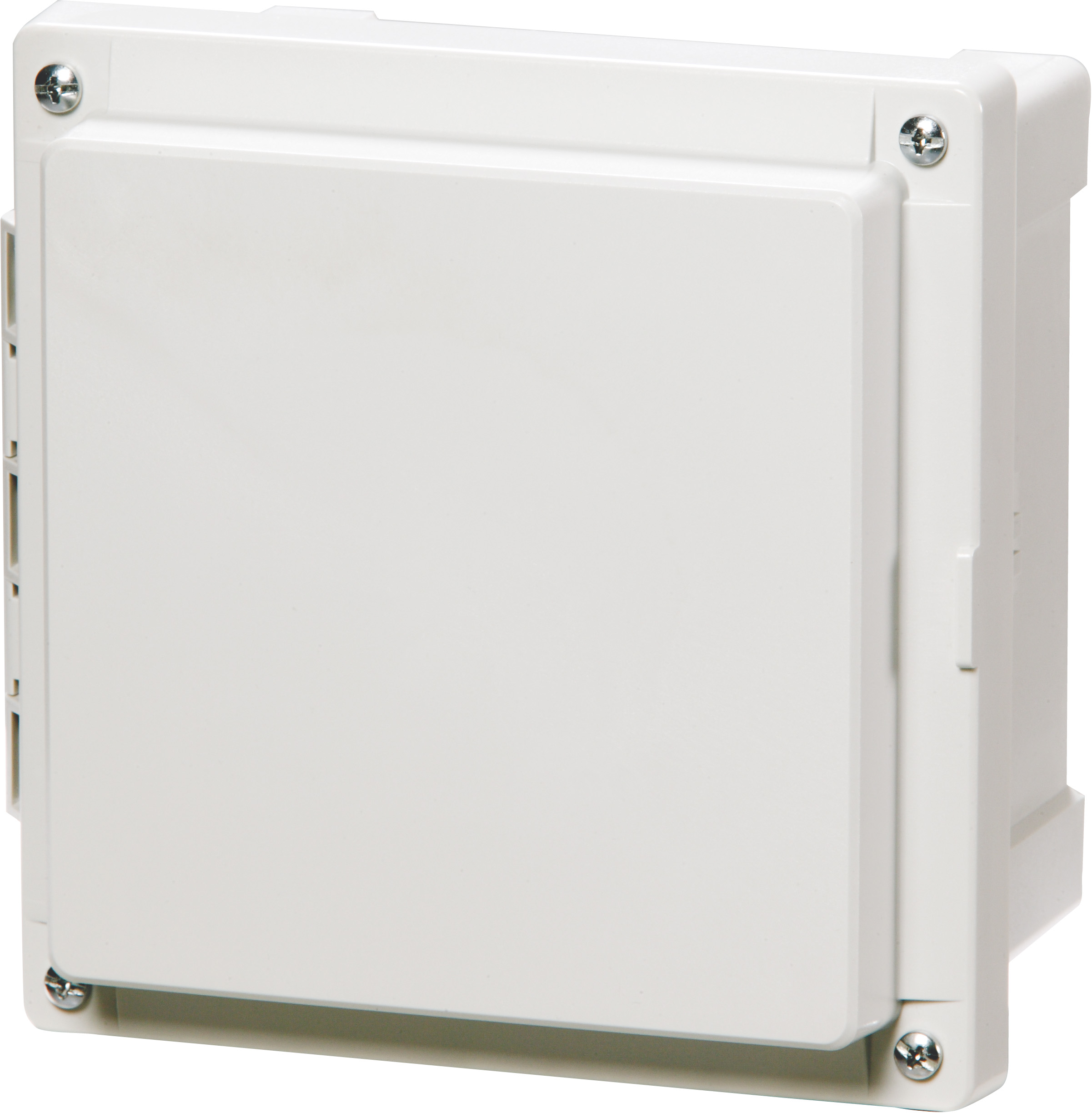

Sample image

Order symbol : AR884CHSCT

Product nr : 8561092

Description : PC Enclosure

Remarks : Hinged transparent screw cover

EAN : 6418074066527

Dimensions :	Height	Width	Depth

Materials :
Material :	Polycarbonate
Base colour :	RAL_7035
Cover colour :	RAL 7035 -light grey
Gasket material :	Polyurethane

Temperatures :
Temperature °C (continuous) :	-40 … 80
Temperature °F (continuous) :	-40 … 175

Accessories :
ALBP88	Aluminum Back Panel
ABP88	Painted Steel Back Panel
ASP88	Aluminum Swing Panel
ASPHK8	Swing Panel Kit w/o Panel
APBP88	PVC Back Panel
ADFP88	Dead Front Panel w/ screws
ASPK88	Swing Panel Kit incl. Panel
AMFL8	8" Mounting Flange Set

Ratings :
Ingress protection (EN 60529):	IP66; IP67;
Impact Resistance (EN 62262):	IK09;
electrical_insulation :	Totally insulated
Halogen free (DIN/VDE 0472, Part 815) :	Yes
UV resistance :	UL 746C
Flammability Rating :	UL 508
Glow Wire Test (IEC 695-2-1) °C :	960C
UL Type	4, 4X, 6, 6P, 12, 13

Certificates :
ARCA_CertificateofCompliance
