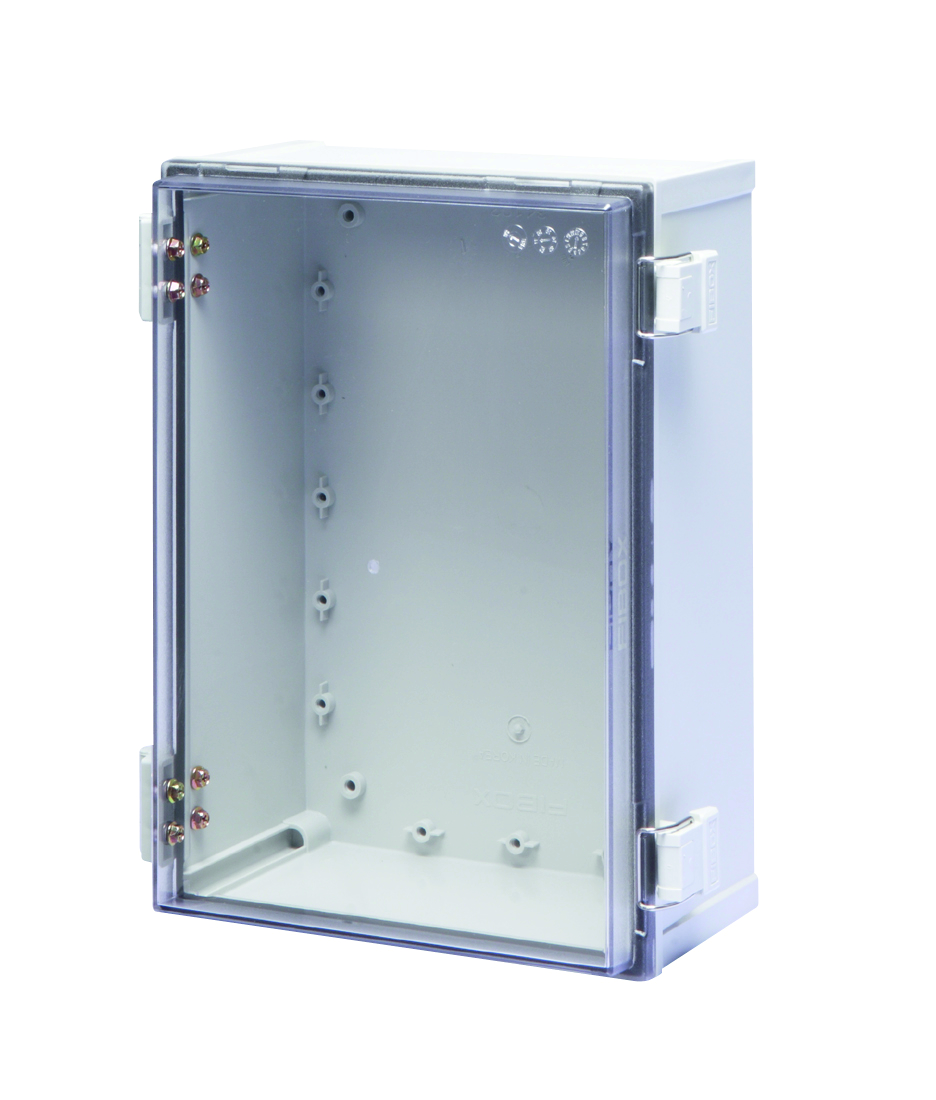

    Cabinet base. door with PUR gasket. latches. screws for mounting plate/DIN-rail and corner plugs.

CAB / CAB 2535 / CAB PC 352515 T

CAB PC 352515 T 8113035

Dimensions 350 x 250 x 150

Dimensions 13.78 x 9.84 x 5.91

Including : Cabinet base. door with PUR gasket. latches. screws for mounting plate/DIN-rail and corner plugs.

IP65; IK08

Product number : 8113035 Download product card

Technical data

Product:

Product nr : 8113035

Description : Cabinet, PC, Smoked transparent door

Remarks : Latches on the long side

Package : 1

Unit : Piece

EAN : 6418074049056

ETIM : EC000261

Dimensions :

Height (mm) : 350

Width (mm) : 250

Depth (mm) : 150

Height (inch) : 13.78

Width (inch) : 9.84

Depth (inch) : 5.91

Materials :

Material : Polycarbonate

Base colour : RAL_7035

Cover colour : Clear transparent

Gasket material : Polyurethane

Temperatures :

Temperature °C : -40 … 80

Temperature °F : -40 … 175

Ratings :

Standards EN_62208:2011__IEC_62208:2011, EN_61439-3:2012__IEC_61439-3:2012, EN_61439-4:2013__IEC_61439-4:2012

Ingress Protection (EN 60529): IP65

Impact Resistance (EN 62262): IK08

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : Yes

UV resistance : UL 746C

Flammability Rating : UL 94 V0

Glow Wire Test (IEC 60695): 960C

Product is connected to following catalogues :

CAB / CAB 2535 / CAB PC 352515 T

Dimensional Drawings


CAD Files

Please note, that we need you permission in order for you to view the CAD files.

Contact

Accessories

EKIV 3525

Mounting plate, for enclosures:
(320 x 220 x 1)

EKIV 3525 PL

Mounting plate, plastic, for enclosures:
(320 x 220 x 2)

Sample image

Order symbol : CAB PC 352515 T

Product nr : 8113035

Description : Cabinet, PC, Smoked transparent door

Remarks : Latches on the long side

EAN : 6418074049056
