PC 050705 enclosure 7032520
Dimensions 50 x 65 x 45
Dimensions 1.97 x 2.56 x 1.77
Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.
- IP66; IP67; IK07; IK08
Technical data
Product nr : 7032520
Description : Enclosure, PC
Remarks : Grey cover
Package : 8
Unit : Piece
EAN : 6418074003607
SSTL number : 3423424
Electric No. Denmark : 8212002526
Electric No. Sweden : 2536105
ETIM : EC000261
Height (mm) : 50
Width (mm) : 65
Depth (mm) : 45
Height (inch) : 1.97
Width (inch) : 2.56
Depth (inch) : 1.77
Material : Polycarbonate
Base colour : RAL_7035
Cover colour : RAL 7035 -light grey
Gasket material : Polyurethane
Temperature °C : -40 … 80
Temperature °F : -40 … 175
Standards EN_62208:2011__IEC_62208:2011, EN_61439-1:2011__IEC_61439-1:2011
Ingress Protection (EN 60529): IP66IP67
Impact Resistance (EN 62262): IK07IK08
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 746C
Flammability Rating : UL 94 V0
Glow Wire Test (IEC 60695): 960C
/ /
Dimensional Drawings
CAD Files
Please note, that we need you permission in order for you to view the CAD files.
Certificates and Declarations
Catalogues
Contact
PC 050705 enclosure

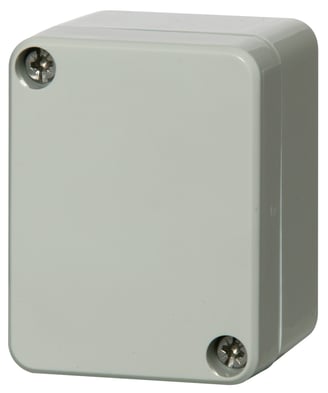

Sample image
Order symbol : PC 050705 enclosure
Product nr : 7032520
Description : Enclosure, PC
Remarks : Grey cover
EAN : 6418074003607
El. number :
- Finland : 3423424
- Denmark : 8212002526
- Sweden : 2536105
Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 50 | 65 | 45 |
| inch : | 1.97 | 2.56 | 1.77 |
| Materials : | |
|---|---|
| Material : | Polycarbonate |
| Base colour : | RAL_7035 |
| Cover colour : | RAL 7035 -light grey |
| Gasket material : | Polyurethane |
| Temperatures : | |
|---|---|
| Temperature °C (continuous) : | -40 … 80 |
| Temperature °F (continuous) : | -40 … 175 |
| Accessories : | |
|---|---|
| TF 28037 | Wall fastening lug (4 pcs), for enclosures: |
| TM 0507 |
Mounting plate, for enclosures:
(26 x 57 x 1.5) |
| TRM 0507 |
DIN-15 Mounting rail, for enclosures:
(48 x 15 x 5.5) |
| TM 0505 |
Mounting plate, for enclosures:
(26 x 48 x 1.5) |
| TH A |
Grey plastic hinges (2 pcs)
(30 x 20 x 12) |
| Ratings : | |
|---|---|
| Ingress protection (EN 60529): | IP66; IP67; |
| Impact Resistance (EN 62262): | IK07; IK08; |
| electrical_insulation : | Totally insulated |
| Halogen free (DIN/VDE 0472, Part 815) : | Yes |
| UV resistance : | UL 746C |
| Flammability Rating : | UL 94 V0 |
| Glow Wire Test (IEC 695-2-1) °C : | 960C |
| Certificates : | |
|---|---|
| SGSFimko_EURONORD | |
