Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.
PC 081609 7032650
Dimensions 80 x 160 x 85
Dimensions 3.15 x 6.3 x 3.35
Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.
- IP66; IP67; IK07; IK08
Technical data
Product nr : 7032650
Description : Enclosure, PC
Remarks : Grey cover
Package : 8
Unit : Piece
EAN : 6418074058386
SSTL number : 3435356
Electric No. Denmark : 8212002681
Electric No. Sweden : 2536114
ETIM : EC000261
Height (mm) : 80
Width (mm) : 160
Depth (mm) : 85
Height (inch) : 3.15
Width (inch) : 6.3
Depth (inch) : 3.35
Material : Polycarbonate
Base colour : RAL_7035
Cover colour : RAL 7035 -light grey
Gasket material : Polyurethane
Temperature °C : -40 … 80
Temperature °F : -40 … 175
Standards EN/IEC 61439-1:2015
Ingress Protection (EN 60529): IP66IP67
Impact Resistance (EN 62262): IK07IK08
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 746C
Flammability Rating : UL 94 V0
Glow Wire Test (IEC 60695): 960C
Euronord / EURONORD 0816 / PC 081609
Dimensional Drawings
CAD Files
Please note, that we need you permission in order for you to view the CAD files.
Certificates and Declarations
Catalogues
Contact
Accessories
PC 081609

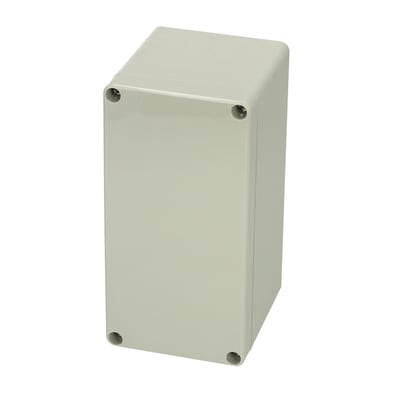

Sample image
Order symbol : PC 081609
Product nr : 7032650
Description : Enclosure, PC
Remarks : Grey cover
EAN : 6418074058386
El. number :
- Finland : 3435356
- Denmark : 8212002681
- Sweden : 2536114
Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.
Dimensions : | Height | Width | Depth |
---|---|---|---|
mm : | 80 | 160 | 85 |
inch : | 3.15 | 6.3 | 3.35 |
Materials : | |
---|---|
Material : | Polycarbonate |
Base colour : | RAL_7035 |
Cover colour : | RAL 7035 -light grey |
Gasket material : | Polyurethane |
Temperatures : | |
---|---|
Temperature °C (continuous) : | -40 … 80 |
Temperature °F (continuous) : | -40 … 175 |
Accessories : | |
---|---|
TF 28037 | Wall fastening lug (4 pcs), for enclosures: |
TRH 1216 |
DIN-35 Mounting rail, for enclosures:
(146 x 35 x 7) |
TRM 0816 |
DIN-15 Mounting rail, for enclosures:
(146 x 15 x 5.5) |
TM 0816 |
Mounting plate, for enclosures:
(71 x 134 x 1) |
TH A |
Grey plastic hinges (2 pcs)
(30 x 20 x 12) |
TRM 0808 |
DIN-15 Mounting rail, for enclosures:
(68 x 15 x 5.5) |
Ratings : | |
---|---|
Ingress protection (EN 60529): | IP66; IP67; |
Impact Resistance (EN 62262): | IK07; IK08; |
electrical_insulation : | Totally insulated |
Halogen free (DIN/VDE 0472, Part 815) : | Yes |
UV resistance : | UL 746C |
Flammability Rating : | UL 94 V0 |
Glow Wire Test (IEC 695-2-1) °C : | 960C |
Certificates : | |
---|---|
SGSFimko_EURONORD |
