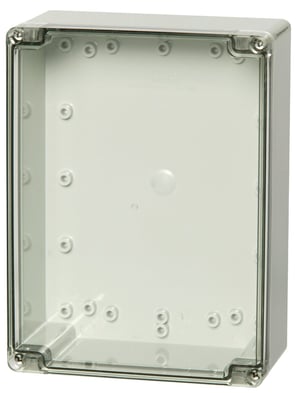

Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.
PCT 152008 7022821
Dimensions 150 x 201 x 80
Dimensions 5.91 x 7.91 x 3.15
Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.
- IP66; IP67; IK07; IK08
Technical data
Product nr : 7022821
Description : Enclosure, PC
Remarks : Clear transparent cover
Package : 4
Unit : Piece
EAN : 6418074010643
SSTL number : 3423539
Electric No. Denmark : 8212002872
ETIM : EC000261
Height (mm) : 150
Width (mm) : 201
Depth (mm) : 80
Height (inch) : 5.91
Width (inch) : 7.91
Depth (inch) : 3.15
Material : Polycarbonate
Base colour : RAL_7035
Cover colour : Clear transparent
Gasket material : Polyurethane
Temperature °C : -40 … 80
Temperature °F : -40 … 175
Standards EN/IEC 61439-1:2015
Ingress Protection (EN 60529): IP66IP67
Impact Resistance (EN 62262): IK07IK08
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 746C
Flammability Rating : UL 94 V0
Glow Wire Test (IEC 60695): 960C
Euronord / EURONORD 1520 / PCT 152008
Dimensional Drawings
CAD Files
Please note, that we need you permission in order for you to view the CAD files.
Certificates and Declarations
Catalogues
Contact
PCT 152008

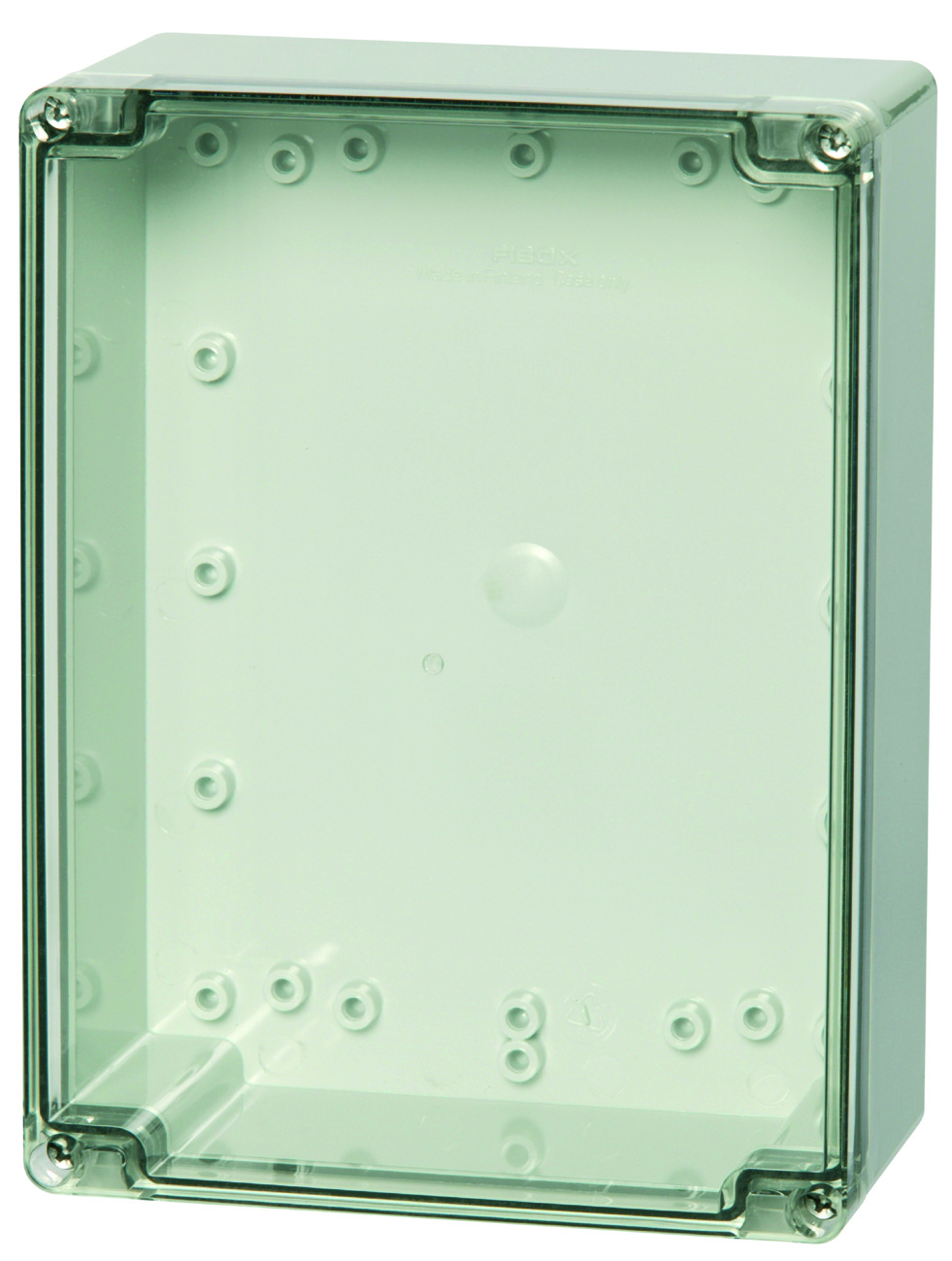

Sample image
Order symbol : PCT 152008
Product nr : 7022821
Description : Enclosure, PC
Remarks : Clear transparent cover
EAN : 6418074010643
El. number :
- Finland : 3423539
- Denmark : 8212002872
Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.
Dimensions : | Height | Width | Depth |
---|---|---|---|
mm : | 150 | 201 | 80 |
inch : | 5.91 | 7.91 | 3.15 |
Materials : | |
---|---|
Material : | Polycarbonate |
Base colour : | RAL_7035 |
Cover colour : | Clear transparent |
Gasket material : | Polyurethane |
Temperatures : | |
---|---|
Temperature °C (continuous) : | -40 … 80 |
Temperature °F (continuous) : | -40 … 175 |
Accessories : | |
---|---|
TF 28037 | Wall fastening lug (4 pcs), for enclosures: |
TRH 1220 |
DIN-35 Mounting rail, for enclosures:
(186 x 35 x 7.5) |
TM 1520 |
Mounting plate, for enclosures:
(141 x 174 x 1.5) |
TH A |
Grey plastic hinges (2 pcs)
(30 x 20 x 12) |
Ratings : | |
---|---|
Ingress protection (EN 60529): | IP66; IP67; |
Impact Resistance (EN 62262): | IK07; IK08; |
electrical_insulation : | Totally insulated |
Halogen free (DIN/VDE 0472, Part 815) : | Yes |
UV resistance : | UL 746C |
Flammability Rating : | UL 94 V0 |
Glow Wire Test (IEC 695-2-1) °C : | 960C |
Certificates : | |
---|---|
SGSFimko_EURONORD |
© Fibox Oy, Data subject to change without notice (printed: )
