    Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.

Previous slide

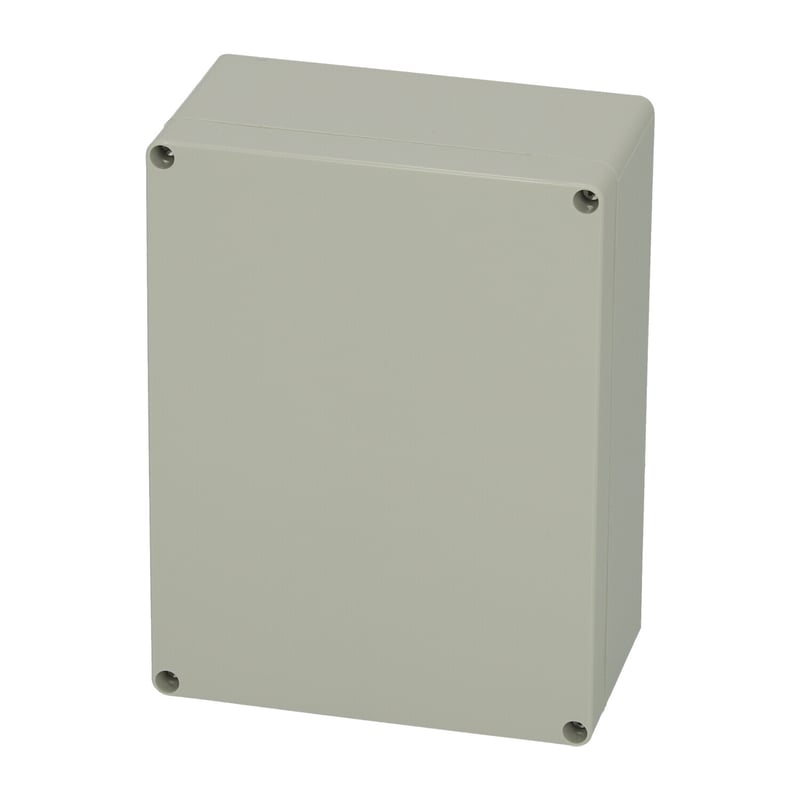

PC 152008 product image 1
PC 152008 product image 2
PC 152008 product image 1
Next slide
PC 152008 thumbnail image 1
PC 152008 thumbnail image 2
PC 152008 thumbnail image 1

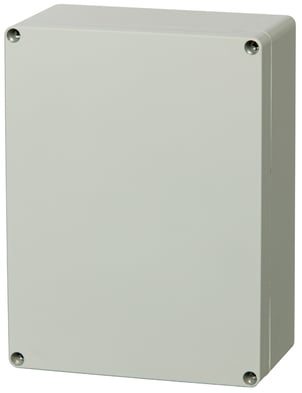

Euronord / EURONORD 1520 / PC 152008

PC 152008 7032820

Dimensions 150 x 201 x 80

Dimensions 5.91 x 7.91 x 3.15

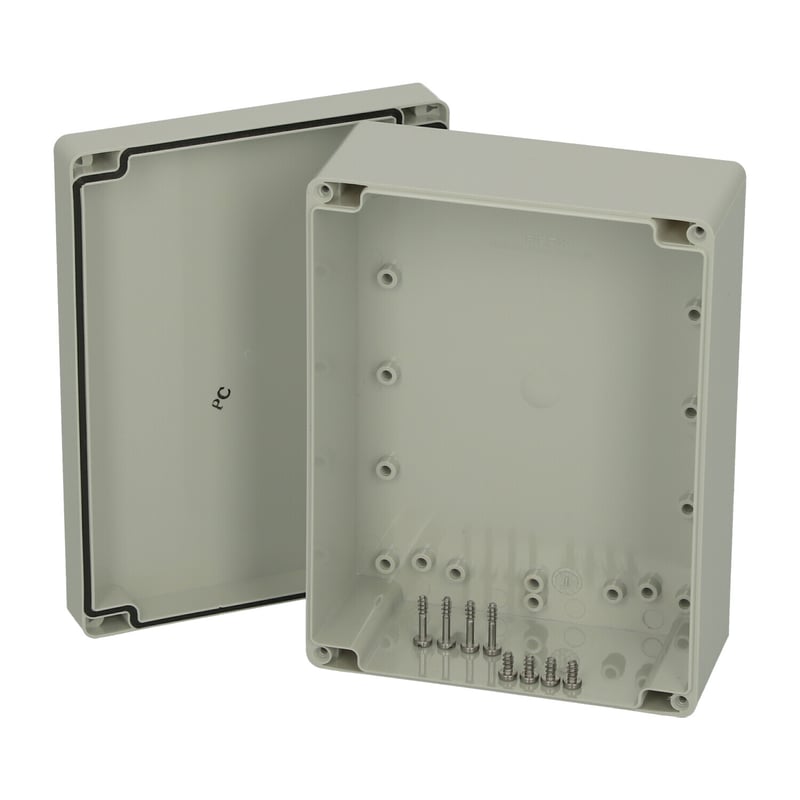

Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.

  • IP66; IP67; IK07; IK08
Technical data
Product:

Product nr : 7032820

Description : Enclosure, PC

Remarks : Grey cover

Package : 4

Unit : Piece

EAN : 6418074010636

SSTL number : 3423439

Electric No. Denmark : 8212002869

Electric No. Sweden : 2536127

ETIM : EC000261

Dimensions :

Height (mm) : 150

Width (mm) : 201

Depth (mm) : 80

Height (inch) : 5.91

Width (inch) : 7.91

Depth (inch) : 3.15

Materials :

Material : Polycarbonate

Base colour : RAL_7035

Cover colour : RAL 7035 -light grey

Gasket material : Polyurethane

Temperatures :

Temperature °C : -40 … 80

Temperature °F : -40 … 175

Ratings :

Standards EN_62208:2011__IEC_62208:2011, EN_61439-1:2011__IEC_61439-1:2011

Ingress Protection (EN 60529): IP66IP67

Impact Resistance (EN 62262): IK07IK08

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : Yes

UV resistance : UL 746C

Flammability Rating : UL 94 V0

Glow Wire Test (IEC 60695): 960C

Product is connected to following catalogues :

Euronord / EURONORD 1520 / PC 152008

Dimensional Drawings
CAD Files
Certificates and Declarations
Contact

PC 152008

Fibox

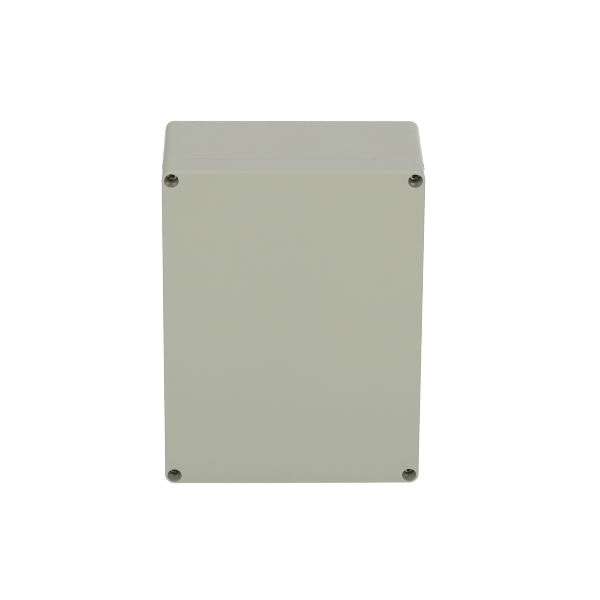

7032820_PC_152008 360_ANIMA_SMALL

Sample image

Order symbol : PC 152008

Product nr : 7032820

Description : Enclosure, PC

Remarks : Grey cover

EAN : 6418074010636

El. number :

  • Finland : 3423439
  • Denmark : 8212002869
  • Sweden : 2536127

Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.

EURO152008
Dimensions : Height Width Depth
mm : 150 201 80
inch : 5.91 7.91 3.15
Materials :
Material : Polycarbonate
Base colour : RAL_7035
Cover colour : RAL 7035 -light grey
Gasket material : Polyurethane
Temperatures :
Temperature °C (continuous) : -40 … 80
Temperature °F (continuous) : -40 … 175
Accessories :
TF 28037 Wall fastening lug (4 pcs), for enclosures:
TRH 1220 DIN-35 Mounting rail, for enclosures:
(186 x 35 x 7.5)
TM 1520 Mounting plate, for enclosures:
(141 x 174 x 1.5)
TH A Grey plastic hinges (2 pcs)
(30 x 20 x 12)
Ratings :
Ingress protection (EN 60529): IP66; IP67;
Impact Resistance (EN 62262): IK07; IK08;
electrical_insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 746C
Flammability Rating : UL 94 V0
Glow Wire Test (IEC 695-2-1) °C : 960C
Certificates :
SGSFimko_EURONORD
