    Base with screws for mounting plate/DIN-rail. cover with PUR gasket and quick-locking cover screws.

Previous slide

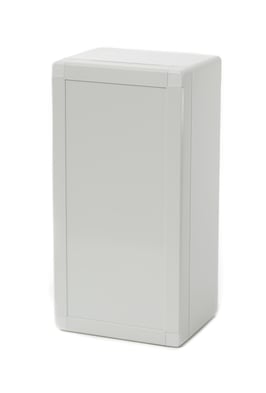

ABQ3 122410 product image 1
ABQ3 122410 product image 4
ABQ3 122410 product image 1
Next slide
ABQ3 122410 thumbnail image 1
ABQ3 122410 thumbnail image 4
ABQ3 122410 thumbnail image 1

Euronord / EURONORD 3 1224 / ABQ3 122410

ABQ3 122410 7085781

Dimensions 120 x 240 x 100

Dimensions 4.72 x 9.45 x 3.94

Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and quick-locking cover screws.

  • IP66; IP67; IK07
Technical data
Product:

Product nr : 7085781

Description : Enclosure, ABS

Remarks : Grey cover (quick-locking)

Package : 4

Unit : Piece

EAN : 6418074099068

SSTL number : 3424186

Electric No. Denmark : 8212050455

ETIM : EC000261

Dimensions :

Height (mm) : 120

Width (mm) : 240

Depth (mm) : 100

Height (inch) : 4.72

Width (inch) : 9.45

Depth (inch) : 3.94

Materials :

Material : ABS

Base colour : RAL_7035

Cover colour : RAL 7035 -light grey

Gasket material : Polyurethane

Temperatures :

Temperature °C : -40 … 60

Temperature °F : -40 … 140

Ratings :

Standards EN/IEC 61439-1:2015

Ingress Protection (EN 60529): IP66IP67

Impact Resistance (EN 62262): IK07

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : Yes

Flammability Rating : UL 94 HB

Glow Wire Test (IEC 60695): 650C

Product is connected to following catalogues :

Euronord / EURONORD 3 1224 / ABQ3 122410

Dimensional Drawings
CAD Files
Certificates and Declarations
Contact

ABQ3 122410

Fibox
7085781_ABQ3_122410_enclosure_1_72dpi

Sample image

Order symbol : ABQ3 122410

Product nr : 7085781

Description : Enclosure, ABS

Remarks : Grey cover (quick-locking)

EAN : 6418074099068

El. number :

  • Finland : 3424186
  • Denmark : 8212050455

Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and quick-locking cover screws.

EURO3_122410
Dimensions : Height Width Depth
mm : 120 240 100
inch : 4.72 9.45 3.94
Materials :
Material : ABS
Base colour : RAL_7035
Cover colour : RAL 7035 -light grey
Gasket material : Polyurethane
Temperatures :
Temperature °C (continuous) : -40 … 60
Temperature °F (continuous) : -40 … 140
Accessories :
TRH 1212 DIN-35 Mounting rail, for enclosures:
(110 x 35 x 7.5)
TRH 24 DIN-35 Mounting rail, for enclosures:
(226 x 35 x 7.5)
TRM 0812 DIN-15 Mounting rail, for enclosures:
(106 x 15 x 5.5)
TF 28037 Wall fastening lug (4 pcs), for enclosures:
MIN 20 DIN-15 Mounting rail, for enclosures:
(225 x 15 x 1)
TH A Grey plastic hinges (2 pcs)
(30 x 20 x 12)
TM 1224 Mounting plate, for enclosures:
(111 x 216 x 1.5)
Ratings :
Ingress protection (EN 60529): IP66; IP67;
Impact Resistance (EN 62262): IK07;
electrical_insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : -
Flammability Rating : UL 94 HB
Glow Wire Test (IEC 695-2-1) °C : 650C
Certificates :
SGSFimko_EURONORD
