JB 2.5 WH 8600671
Dimensions 95 x 95 x 49
Dimensions 3.74 x 3.74 x 1.93
- IP65
Technical data
Product nr : 8600671
Description : Junction box 2.5 mm², PP, white
Remarks : Integrated membranes
Package : 10
Unit : Piece
EAN : 6418074308566
SSTL number : 1606524
Electric No. Denmark : 8212097010
Electric No. Sweden : 1438288
ETIM : EC000261
Height (mm) : 95
Width (mm) : 95
Depth (mm) : 49
Height (inch) : 3.74
Width (inch) : 3.74
Depth (inch) : 1.93
Material : Polypropylene
Base colour : RAL_9010
Cover colour : RAL 9010
Gasket material : TPE
Temperature °C : -25 … 60
Temperature °F : -13…140°F
Standards EN/IEC 60670
Ingress Protection (EN 60529): IP65
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
Glow Wire Test (IEC 60695): 650C
/ /
Dimensional Drawings
CAD Files
Please note, that we need you permission in order for you to view the CAD files.
Catalogues
Contact
JB 2.5 WH

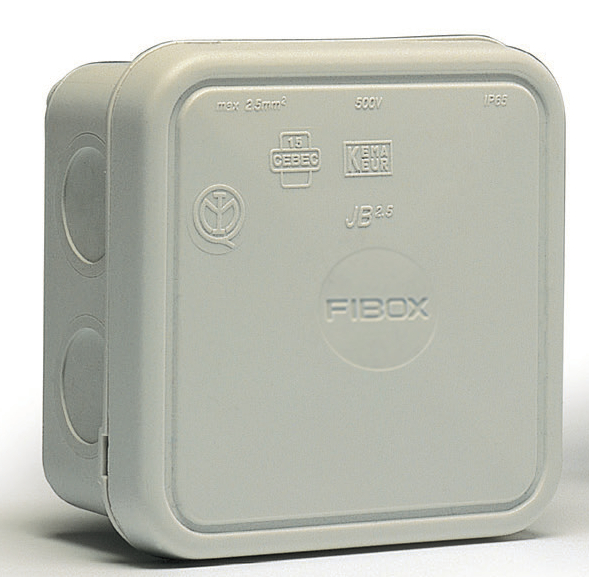

Sample image
Order symbol : JB 2.5 WH
Product nr : 8600671
Description : Junction box 2.5 mm², PP, white
Remarks : Integrated membranes
EAN : 6418074308566
El. number :
- Finland : 1606524
- Denmark : 8212097010
- Sweden : 1438288
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 95 | 95 | 49 |
| inch : | 3.74 | 3.74 | 1.93 |
| Materials : | |
|---|---|
| Material : | Polypropylene |
| Base colour : | RAL_9010 |
| Cover colour : | RAL 9010 |
| Gasket material : | TPE |
| Temperatures : | |
|---|---|
| Temperature °C (continuous) : | -25 … 60 |
| Temperature °F (continuous) : | -13…140°F |
| Accessories : | |
|---|---|
| ITS 6 |
Terminal strip, up to 6mm², 500 V hole-type, 5-terminal strip
(90 x 10 x 20) |
| Ratings : | |
|---|---|
| Ingress protection (EN 60529): | IP65; |
| electrical_insulation : | Totally insulated |
| Halogen free (DIN/VDE 0472, Part 815) : | Yes |
| UV resistance : | - |
| Glow Wire Test (IEC 695-2-1) °C : | 650C |
