JB 6 G 8600672
Dimensions 110 x 110 x 49
Dimensions 4.33 x 4.33 x 1.93
- IP65
Technical data
Product nr : 8600672
Description : Junction box 6 mm², PP
Remarks : Integrated membranes
Package : 10
Unit : Piece
EAN : 6418074307866
SSTL number : 1606525
Electric No. Denmark : 8212097023
Electric No. Sweden : 1438290
ETIM : EC000261
Height (mm) : 110
Width (mm) : 110
Depth (mm) : 49
Height (inch) : 4.33
Width (inch) : 4.33
Depth (inch) : 1.93
Material : Polypropylene
Base colour : RAL_7035
Cover colour : RAL 7035 -light grey
Gasket material : TPE
Temperature °C : -25 … 60
Temperature °F : -13…140°F
Standards EN/IEC 60670
Ingress Protection (EN 60529): IP65
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
Glow Wire Test (IEC 60695): 650C
/ /
Dimensional Drawings
CAD Files
Please note, that we need you permission in order for you to view the CAD files.
Catalogues
Contact
JB 6 G

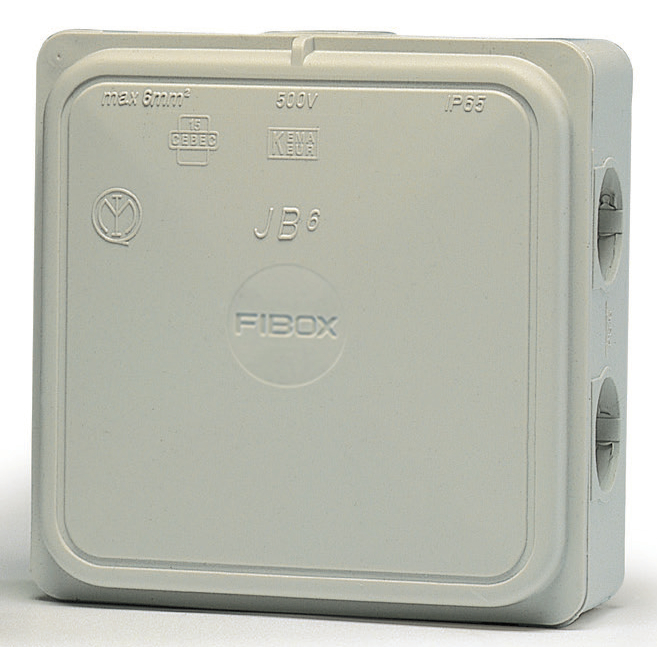

Sample image
Order symbol : JB 6 G
Product nr : 8600672
Description : Junction box 6 mm², PP
Remarks : Integrated membranes
EAN : 6418074307866
El. number :
- Finland : 1606525
- Denmark : 8212097023
- Sweden : 1438290
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 110 | 110 | 49 |
| inch : | 4.33 | 4.33 | 1.93 |
| Materials : | |
|---|---|
| Material : | Polypropylene |
| Base colour : | RAL_7035 |
| Cover colour : | RAL 7035 -light grey |
| Gasket material : | TPE |
| Temperatures : | |
|---|---|
| Temperature °C (continuous) : | -25 … 60 |
| Temperature °F (continuous) : | -13…140°F |
| Accessories : | |
|---|---|
| GPA M20 |
Cable gland (IP 68 - 5 bar), M20x1,5
(36 x 28 x 28) |
| ICS |
Cover fastening screws for JB 6
(5 x 5 x 10) |
| IES |
Tube entry socket for JB 6
(20 x 20 x 20) |
| Ratings : | |
|---|---|
| Ingress protection (EN 60529): | IP65; |
| electrical_insulation : | Totally insulated |
| Halogen free (DIN/VDE 0472, Part 815) : | Yes |
| UV resistance : | - |
| Glow Wire Test (IEC 695-2-1) °C : | 650C |
