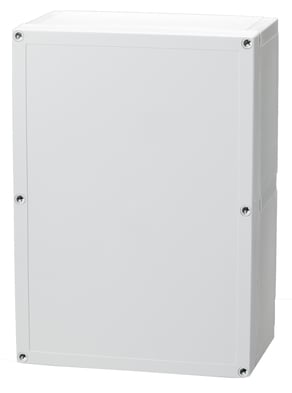

PC 300/150 ZT 6017938
Dimensions 360 x 255 x 152
Dimensions 14.17 x 10.04 x 5.98
Including : Base with TPE gasket. screws for mounting plate/DIN-rail and cover with polyamide cover screws.
- IP66; IP67; IK08
Technical data
Product nr : 6017938
Description : Enclosure, PC
Remarks : Smoked transparent cover
Package : 2
Unit : Piece
EAN : 6418074061522
SSTL number : 3435626
Electric No. Denmark : 8212027996
Electric No. Sweden : 6017938
ETIM : EC000261
Height (mm) : 360
Width (mm) : 255
Depth (mm) : 152
Height (inch) : 14.17
Width (inch) : 10.04
Depth (inch) : 5.98
Material : Polycarbonate
Base colour : RAL_7035
Cover colour : Smoked grey
Gasket material : Polyurethane
Temperature °C : -40 … 80
Temperature °F : -40 … 175
Standards EN 62208:2011, IEC 62208:2011
Ingress Protection (EN 60529): IP66IP67
Impact Resistance (EN 62262): IK08
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 746C
Flammability Rating : UL 94 V0
Glow Wire Test (IEC 60695): 960C
/ /
Dimensional Drawings
CAD Files
Please note, that we need you permission in order for you to view the CAD files.
Certificates and Declarations
Catalogues
Contact
Accessories
PC 300/150 ZT

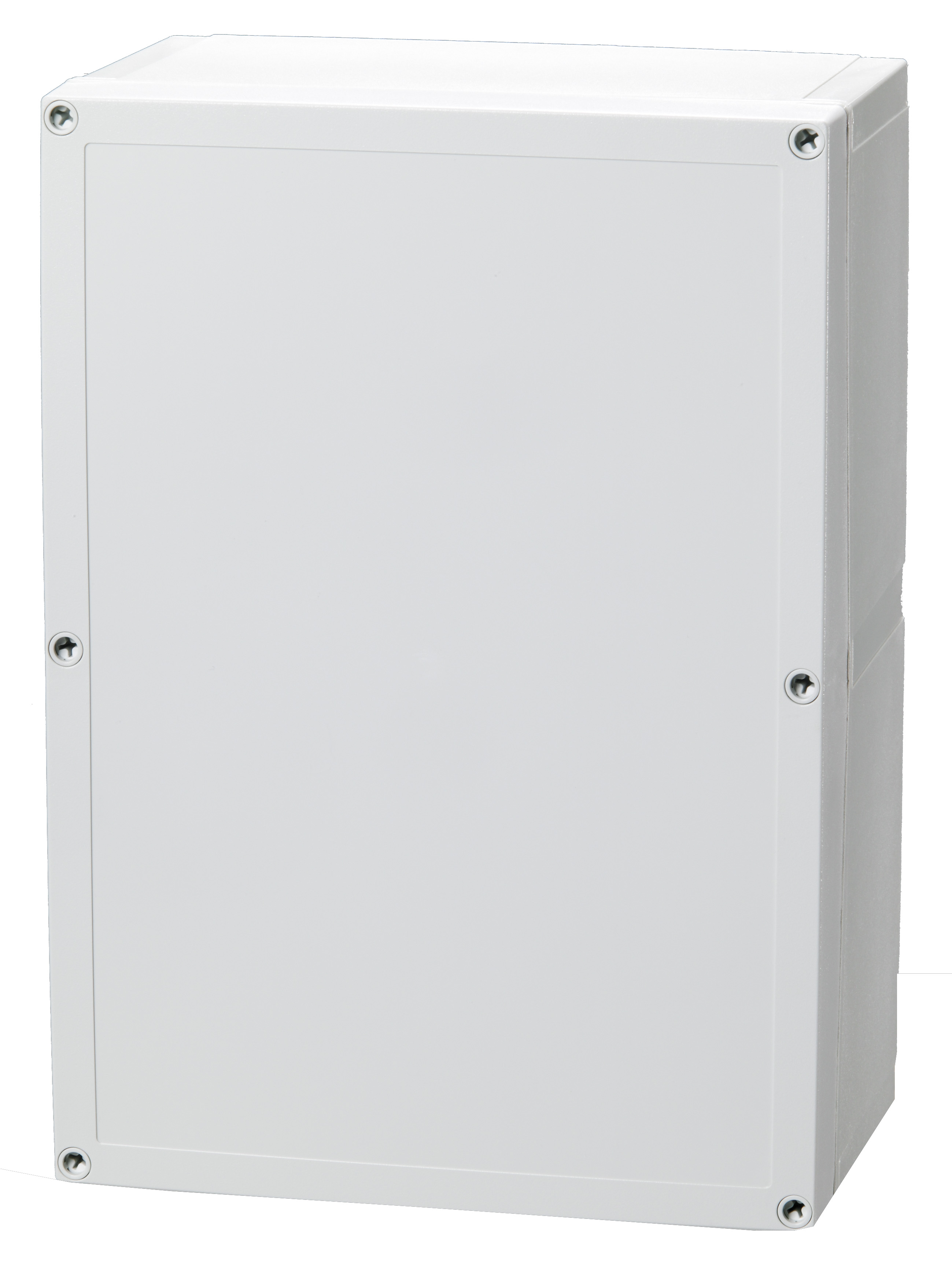

Sample image
Order symbol : PC 300/150 ZT
Product nr : 6017938
Description : Enclosure, PC
Remarks : Smoked transparent cover
EAN : 6418074061522
El. number :
- Finland : 3435626
- Denmark : 8212027996
- Sweden : 6017938
Including : Base with TPE gasket. screws for mounting plate/DIN-rail and cover with polyamide cover screws.
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 360 | 255 | 152 |
| inch : | 14.17 | 10.04 | 5.98 |
| Materials : | |
|---|---|
| Material : | Polycarbonate |
| Base colour : | RAL_7035 |
| Cover colour : | Smoked grey |
| Gasket material : | Polyurethane |
| Temperatures : | |
|---|---|
| Temperature °C (continuous) : | -40 … 80 |
| Temperature °F (continuous) : | -40 … 175 |
| Accessories : | |
|---|---|
| MIN 20 |
DIN-15 Mounting rail, for enclosures:
(225 x 15 x 1) |
| MIV 150 |
Mounting plate (Galvanized steel), for enclosures:
(148 x 98 x 1.5) |
| MIN 15 |
DIN-15 Mounting rail, for enclosures:
(150 x 15 x 1) |
| MIV 200 |
Mounting plate (Galvanized steel), for enclosures:
(223 x 148 x 1.5) |
| MIV 30 |
DIN-35 Mounting rail, for enclosures:
(329 x 35 x 7.5) |
| MIV 15 |
DIN-35 Mounting rail, for enclosures:
(150 x 35 x 7.5) |
| FP 10674 |
Wall fastening lug (2 pcs) incl. screws
(40 x 88 x 14) |
| MIV 300 |
Mounting plate (Galvanized steel), for enclosures:
(330 x 225 x 1.5) |
| MIV 20 |
DIN-35 Mounting rail, for enclosures:
(225 x 35 x 7.5) |
| Ratings : | |
|---|---|
| Ingress protection (EN 60529): | IP66; IP67; |
| Impact Resistance (EN 62262): | IK08; |
| electrical_insulation : | Totally insulated |
| Halogen free (DIN/VDE 0472, Part 815) : | Yes |
| UV resistance : | UL 746C |
| Flammability Rating : | UL 94 V0 |
| Glow Wire Test (IEC 695-2-1) °C : | 960C |
| Certificates : | |
|---|---|
| Certificate FI 40847 | |
