DRS NEO 423215 4850024
Dimensions 379 x 279 x 106
Dimensions 14.92 x 10.98 x 4.17
Technical data
Product nr : 4850024
Description : DIN rail frame set
Remarks : 2 rows x 15 modules
Package : 1
Unit : Piece
EAN : 6418074312334
SSTL number : 3425121
Electric No. Denmark : 8212054354
Electric No. Sweden : 2508263
ETIM : EC002620
Height (mm) : 379
Width (mm) : 279
Depth (mm) : 106
Height (inch) : 14.92
Width (inch) : 10.98
Depth (inch) : 4.17
Material : Galvanized steel
/ /
Dimensional Drawings
CAD Files
Please note, that we need you permission in order for you to view the CAD files.
Catalogues
Contact
DRS NEO 423215

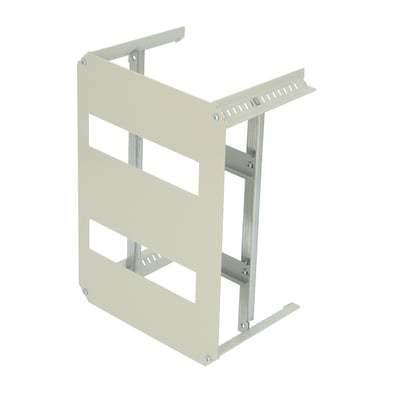

Sample image
Order symbol : DRS NEO 423215
Product nr : 4850024
Description : DIN rail frame set
Remarks : 2 rows x 15 modules
EAN : 6418074312334
El. number :
- Finland : 3425121
- Denmark : 8212054354
- Sweden : 2508263
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 379 | 279 | 106 |
| inch : | 14.92 | 10.98 | 4.17 |
| Materials : | |
|---|---|
| Material : | Galvanized steel |
| Ratings : | |
|---|---|
| electrical_insulation : | Not insulated |
| UV resistance : | - |
