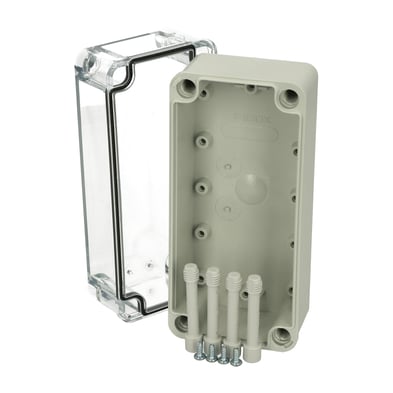

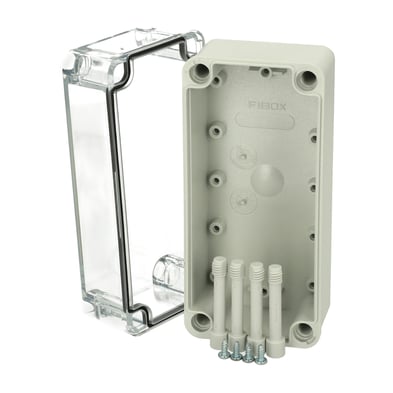

    Base with screws for mounting plate/DIN-rail. cover with PUR gasket and polyamide cover screws.

Piccolo / PICCOLO D / PC D 85 T

PC D 85 T 8724008

Dimensions 170 x 80 x 85

Dimensions 6.69 x 3.15 x 3.35

Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and polyamide cover screws.

IP66; IP67; IK08

Product number : 8724008 Download product card

Technical data

Product:

Product nr : 8724008

Description : Enclosure, PC

Remarks : Transparent cover

Package : 8

Unit : Piece

EAN : 6418074002129

SSTL number : 3423511

Electric No. Denmark : 8212001585

Electric No. Sweden : 2536847

ETIM : EC000261

Dimensions :

Height (mm) : 170

Width (mm) : 80

Depth (mm) : 85

Height (inch) : 6.69

Width (inch) : 3.15

Depth (inch) : 3.35

Materials :

Material : Polycarbonate

Base colour : RAL 7035 -light grey

Gasket material : Polyurethane

Temperatures :

Temperature °F : -40 … 175

Ratings :

Ingress Protection (EN 60529): IP66IP67

Impact Resistance (EN 62262): IK08

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : Yes

UV resistance : UL 746C

Flammability Rating : UL 94 V0

Glow Wire Test (IEC 60695): 960C

Product is connected to following catalogues :

Piccolo / PICCOLO D / PC D 85 T

Dimensional Drawings

CAD Files

Please note, that we need you permission in order for you to view the CAD files.

Contact

Accessories

FP 22040

Wall fastening lug (2 pcs), for enclosures:

DH-3

DIN-35 Mounting rail, for enclosures:
(140 x 35 x 7.5)

D-MP

Mounting plate, for enclosures:
(140 x 54 x 1.5)

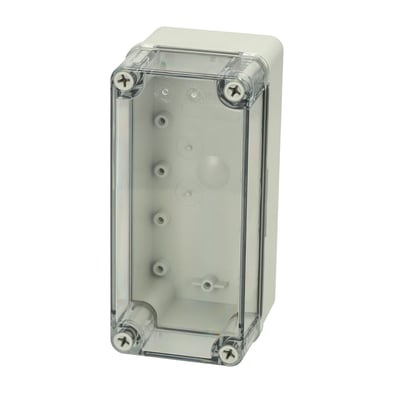

Sample image

Order symbol : PC D 85 T

Product nr : 8724008

Description : Enclosure, PC

Remarks : Transparent cover

EAN : 6418074002129

El. number :

Finland : 3423511
Denmark : 8212001585
Sweden : 2536847
