    Base with screws for mounting plate/DIN-rail. cover with PUR gasket and polyamide cover screws.

Piccolo / PICCOLO M / ABS M 95 T

ABS M 95 T 8784018

Dimensions 230 x 140 x 95

Dimensions 9.06 x 5.51 x 3.74

Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and polyamide cover screws.

IP66; IP67; IK08

Product number : 8784018 Download product card

Technical data

Product:

Product nr : 8784018

Description : Enclosure, ABS

Remarks : Transparent cover

Package : 4

Unit : Piece

EAN : 6418074002327

SSTL number : 3423569

Electric No. Denmark : 8212002089

Electric No. Sweden : 2536759

ETIM : EC000261

Dimensions :

Height (mm) : 230

Width (mm) : 140

Depth (mm) : 95

Height (inch) : 9.06

Width (inch) : 5.51

Depth (inch) : 3.74

Materials :

Material : ABS

Base colour : RAL 7035 -light grey

Gasket material : Polyurethane

Temperatures :

Temperature °F : -40 … 140

Ratings :

Ingress Protection (EN 60529): IP66IP67

Impact Resistance (EN 62262): IK08

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : Yes

Flammability Rating : UL 94 HB

Glow Wire Test (IEC 60695): 650C

Product is connected to following catalogues :

Piccolo / PICCOLO M / ABS M 95 T

Dimensional Drawings

CAD Files

Please note, that we need you permission in order for you to view the CAD files.

Contact

Accessories

CHM-3

DIN-35 Mounting rail, for enclosures:
(110 x 35 x 7.5)

FM-3

DIN-35 Mounting rail, for enclosures:
(35 x 200 x 1.5)

FP 22046

Wall fastening lug (4 pcs)
(35 x 16 x 10)

M-MP

Mounting plate, for enclosures:
(185 x 94 x 1.5)

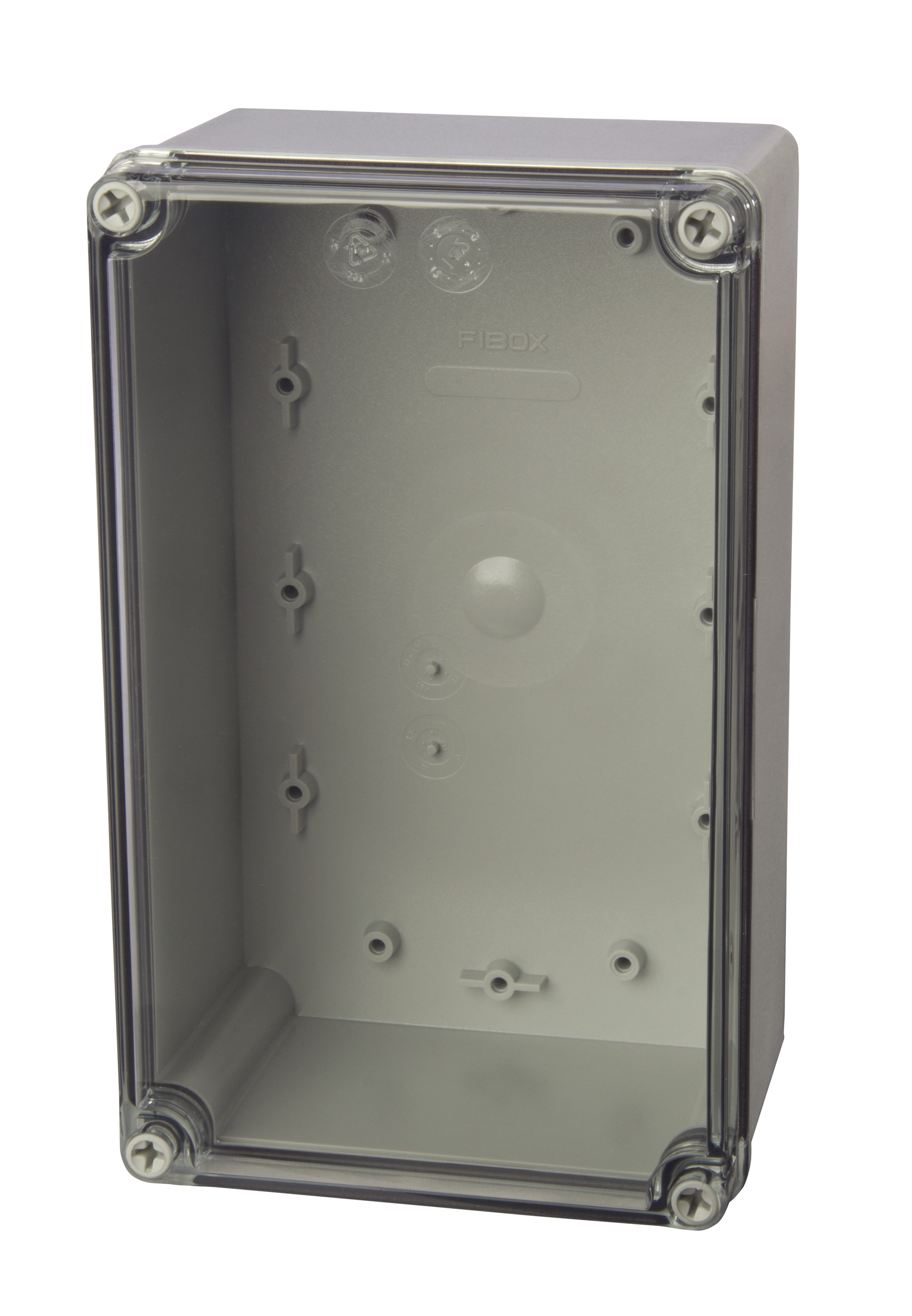

Sample image

Order symbol : ABS M 95 T

Product nr : 8784018

Description : Enclosure, ABS

Remarks : Transparent cover

EAN : 6418074002327

El. number :

Finland : 3423569
Denmark : 8212002089
Sweden : 2536759
