    Base with screws for mounting plate. cover with PUR gasket and polyamide cover screws.

SOLID / SOLID 1919 / ABS 1919 13 T

ABS 1919 13 T 5880059

Dimensions 190 x 190 x 130

Dimensions 7.48 x 7.48 x 5.12

Including : Base with screws for mounting plate. cover with PUR gasket and polyamide cover screws.

IP66; IP67; IK08

Product number : 5880059 Download product card

Technical data

Product:

Product nr : 5880059

Description : Enclosure, ABS

Remarks : Transparent cover

Package : 4

Unit : Piece

EAN : 6418074039125

SSTL number : 3423752

Electric No. Sweden : 2539735

ETIM : EC000261

Dimensions :

Height (mm) : 190

Width (mm) : 190

Depth (mm) : 130

Height (inch) : 7.48

Width (inch) : 7.48

Depth (inch) : 5.12

Materials :

Material : ABS

Base colour : RAL_7035

Cover colour : Clear transparent

Gasket material : Polyurethane

Temperatures :

Temperature °C : -40 … 60

Temperature °F : -40 … 140

Ratings :

Standards EN 62208:2003, IEC 62208:2003

Ingress Protection (EN 60529): IP66IP67

Impact Resistance (EN 62262): IK08

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : Yes

Flammability Rating : UL 94 HB

Glow Wire Test (IEC 60695): 650C

Product is connected to following catalogues :

SOLID / SOLID 1919 / ABS 1919 13 T

Dimensional Drawings

CAD Files

Please note, that we need you permission in order for you to view the CAD files.

Contact

Accessories

EKHVT

Mounting plate, for enclosures:
(158 x 158 x 1.5)

EKV 12

DIN-35 Mounting rail, for enclosures:
(160 x 35 x 7.5)

MPI EKH 1919

Multiperforated plastic mounting plate
(167 x 167 x 4)

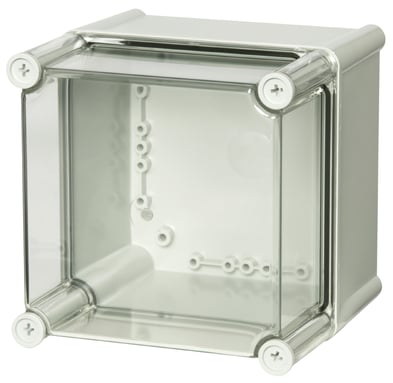

Sample image

Order symbol : ABS 1919 13 T

Product nr : 5880059

Description : Enclosure, ABS

Remarks : Transparent cover

EAN : 6418074039125

El. number :

Finland : 3423752
Sweden : 2539735
