SOLID / SOLID 2819 / ABS 2819 13 T-2FSH

ABS 2819 13 T-2FSH 9880459

Dimensions 280 x 190 x 130

Dimensions 11.02 x 7.48 x 5.12

Including : Base with screws for mounting plate. cover with PUR gasket and polyamide cover screws.

  • IP65; IK08
Technical data
Product:

Product nr : 9880459

Description : Enclosure, ABS

Remarks : Transparent hinged cover

Package : 4

Unit : Piece

EAN : 6418074053558

SSTL number : 3435796

ETIM : EC000261

Dimensions :

Height (mm) : 280

Width (mm) : 190

Depth (mm) : 130

Height (inch) : 11.02

Width (inch) : 7.48

Depth (inch) : 5.12

Materials :

Material : ABS

Base colour : RAL_7035

Cover colour : Clear transparent

Gasket material : Polyurethane

Temperatures :

Temperature °C : -40 … 60

Temperature °F : -40 … 140

Ratings :

Standards EN 62208:2003, IEC 62208:2003

Ingress Protection (EN 60529): IP65

Impact Resistance (EN 62262): IK08

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : Yes

Flammability Rating : UL 94 HB

Glow Wire Test (IEC 60695): 650C

Product is connected to following catalogues :

SOLID / SOLID 2819 / ABS 2819 13 T-2FSH

Dimensional Drawings
CAD Files
Certificates and Declarations
Contact

ABS 2819 13 T-2FSH

Fibox

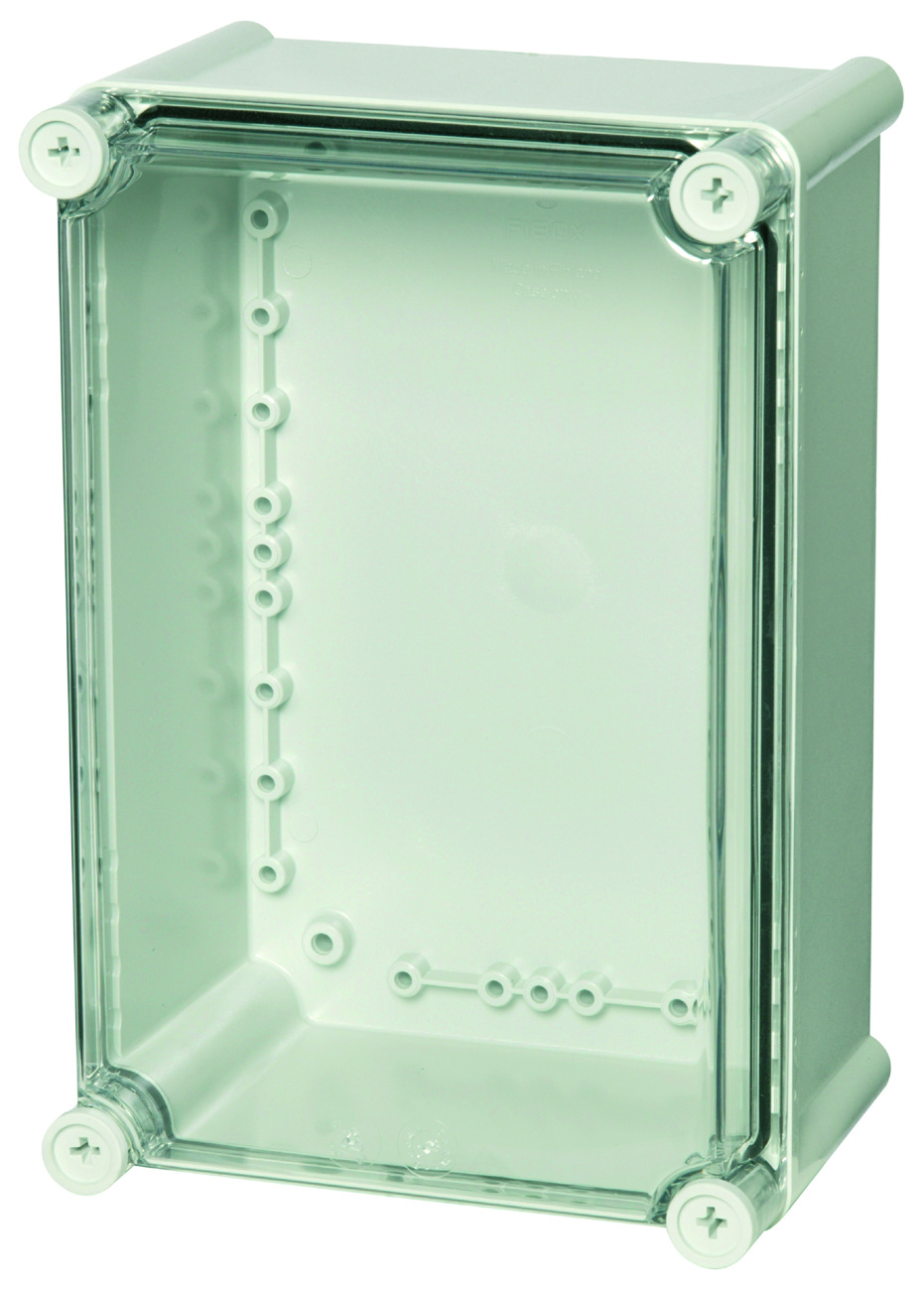

Sample image

Order symbol : ABS 2819 13 T-2FSH

Product nr : 9880459

Description : Enclosure, ABS

Remarks : Transparent hinged cover

EAN : 6418074053558

El. number :

  • Finland : 3435796

Including : Base with screws for mounting plate. cover with PUR gasket and polyamide cover screws.

PC_ABS2819
Dimensions : Height Width Depth
mm : 280 190 130
inch : 11.02 7.48 5.12
Materials :
Material : ABS
Base colour : RAL_7035
Cover colour : Clear transparent
Gasket material : Polyurethane
Temperatures :
Temperature °C (continuous) : -40 … 60
Temperature °F (continuous) : -40 … 140
Accessories :
EKV 12 DIN-35 Mounting rail, for enclosures:
(160 x 35 x 7)
EKJVT Mounting plate, for enclosures:
(238 x 158 x 1.5)
EKV 22 DIN-35 Mounting rail, for enclosures:
(235 x 35 x 7.5)
EKJZR Extension frame, for enclosures:
(280 x 190 x 50)
MPI EKJ 2819 Multiperforated plastic mounting plate
(259 x 164 x 4)
Ratings :
Ingress protection (EN 60529): IP65;
Impact Resistance (EN 62262): IK08;
electrical_insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : -
Flammability Rating : UL 94 HB
Glow Wire Test (IEC 695-2-1) °C : 650C
Certificates :
DSS_FI_41597_A1
