    Base with screws for mounting plate. cover with PUR gasket and polyamide cover screws.

Previous slide

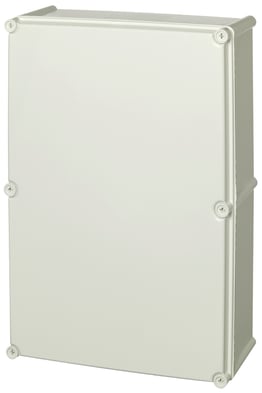

PC 5638 18 G product image 1

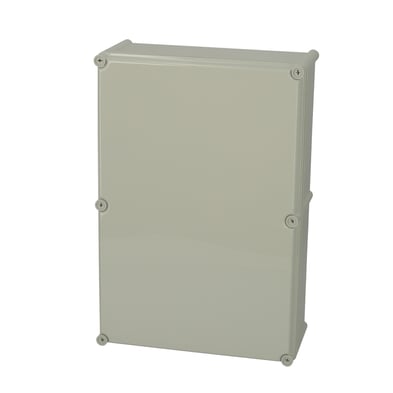

PC 5638 18 G product image 2
PC 5638 18 G product image 2
Next slide
PC 5638 18 G thumbnail image 1
PC 5638 18 G thumbnail image 2
PC 5638 18 G thumbnail image 2

SOLID / SOLID 5638 / PC 5638 18 G

PC 5638 18 G 5330365

UL Name : UL PC 5638 18 G

Dimensions 560 x 380 x 180

Dimensions 22.05 x 14.96 x 7.09

Including : Base with screws for mounting plate. cover with PUR gasket and polyamide cover screws.

  • IP66; IP67; IK08
Technical data
Product:

Product nr : 5330365

Description : Enclosure, PC

Remarks : Grey cover

Package : 1

Unit : Piece

EAN : 6418074005625

SSTL number : 3423723

Electric No. Denmark : 8212049291

Electric No. Sweden : 2539428

ETIM : EC000261

Dimensions :

Height (mm) : 560

Width (mm) : 380

Depth (mm) : 180

Height (inch) : 22.05

Width (inch) : 14.96

Depth (inch) : 7.09

Materials :

Material : Polycarbonate

Base colour : RAL_7035

Cover colour : RAL 7035 -light grey

Gasket material : Polyurethane

Temperatures :

Temperature °C : -40 … 80

Temperature °F : -40 … 175

Ratings :

Standards EN 62208:2011, IEC 62208:2011

Ingress Protection (EN 60529): IP66IP67

Impact Resistance (EN 62262): IK08

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : Yes

UV resistance : UL 746C

Flammability Rating : UL 94 V0

Glow Wire Test (IEC 60695): 960C

Product is connected to following catalogues :

SOLID / SOLID 5638 / PC 5638 18 G

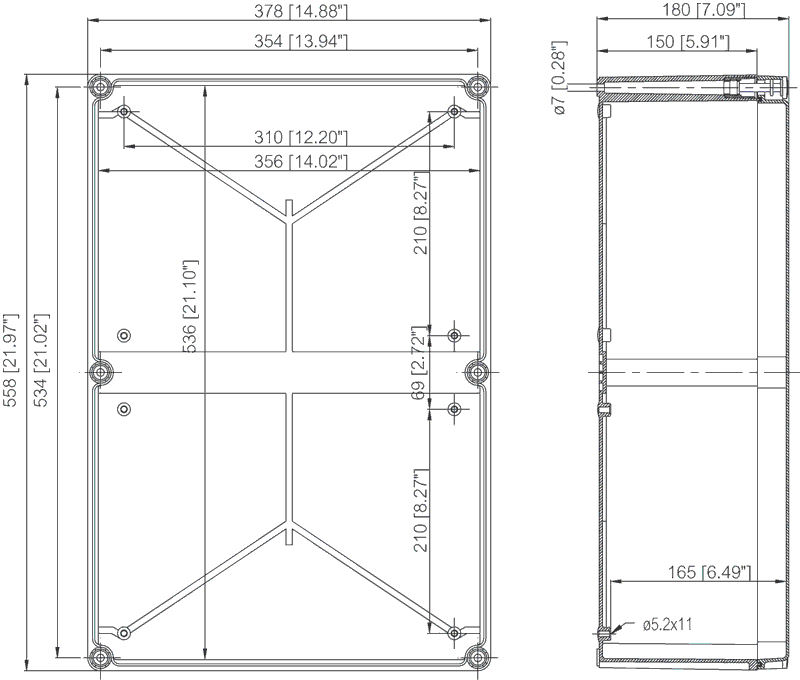

Dimensional Drawings
CAD Files
Certificates and Declarations
Contact

PC 5638 18 G

Fibox

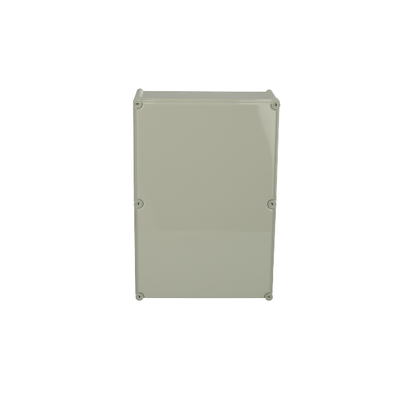

Sample image

Order symbol : PC 5638 18 G

Product nr : 5330365

UL Name : UL PC 5638 18 G

Description : Enclosure, PC

Remarks : Grey cover

EAN : 6418074005625

El. number :

  • Finland : 3423723
  • Denmark : 8212049291
  • Sweden : 2539428

Including : Base with screws for mounting plate. cover with PUR gasket and polyamide cover screws.

PC_ABS5638
Dimensions : Height Width Depth
mm : 560 380 180
inch : 22.05 14.96 7.09
Materials :
Material : Polycarbonate
Base colour : RAL_7035
Cover colour : RAL 7035 -light grey
Gasket material : Polyurethane
Temperatures :
Temperature °C (continuous) : -40 … 80
Temperature °F (continuous) : -40 … 175
Accessories :
EKUVT Mounting plate, for enclosures:
(518 x 338 x 1.5)
EKV 32 DIN-35 Mounting rail, for enclosures:
(335 x 35 x 7.5)
EKUZR Extension frame, for enclosures:
(560 x 380 x 50)
Ratings :
Ingress protection (EN 60529): IP66; IP67;
Impact Resistance (EN 62262): IK08;
electrical_insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 746C
Flammability Rating : UL 94 V0
Glow Wire Test (IEC 695-2-1) °C : 960C
Certificates :
DSS_FI_41597_A1
