    Base with screws for mounting plate. cover with PUR gasket and polyamide cover screws.

SOLID / SOLID 5638 / ABS 5638 18 G

ABS 5638 18 G 5880365

Dimensions 560 x 380 x 180

Dimensions 22.05 x 14.96 x 7.09

Including : Base with screws for mounting plate. cover with PUR gasket and polyamide cover screws.

IP66; IP67; IK08

Product number : 5880365 Download product card

Technical data

Product:

Product nr : 5880365

Description : Enclosure, ABS

Remarks : Grey cover

Package : 1

Unit : Piece

EAN : 6418074039118

SSTL number : 3423773

Electric No. Sweden : 2539727

ETIM : EC000261

Dimensions :

Height (mm) : 560

Width (mm) : 380

Depth (mm) : 180

Height (inch) : 22.05

Width (inch) : 14.96

Depth (inch) : 7.09

Materials :

Material : ABS

Base colour : RAL_7035

Cover colour : RAL 7035 -light grey

Gasket material : Polyurethane

Temperatures :

Temperature °C : -40 … 60

Temperature °F : -40 … 140

Ratings :

Standards EN 62208:2003, IEC 62208:2003

Ingress Protection (EN 60529): IP66IP67

Impact Resistance (EN 62262): IK08

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : Yes

Flammability Rating : UL 94 HB

Glow Wire Test (IEC 60695): 650C

Product is connected to following catalogues :

SOLID / SOLID 5638 / ABS 5638 18 G

Dimensional Drawings

CAD Files

Please note, that we need you permission in order for you to view the CAD files.

Contact

Accessories

EKUVT

Mounting plate, for enclosures:
(518 x 338 x 1.5)

EKV 32

DIN-35 Mounting rail, for enclosures:
(335 x 35 x 7.5)

EKUZR

Extension frame, for enclosures:
(560 x 380 x 50)

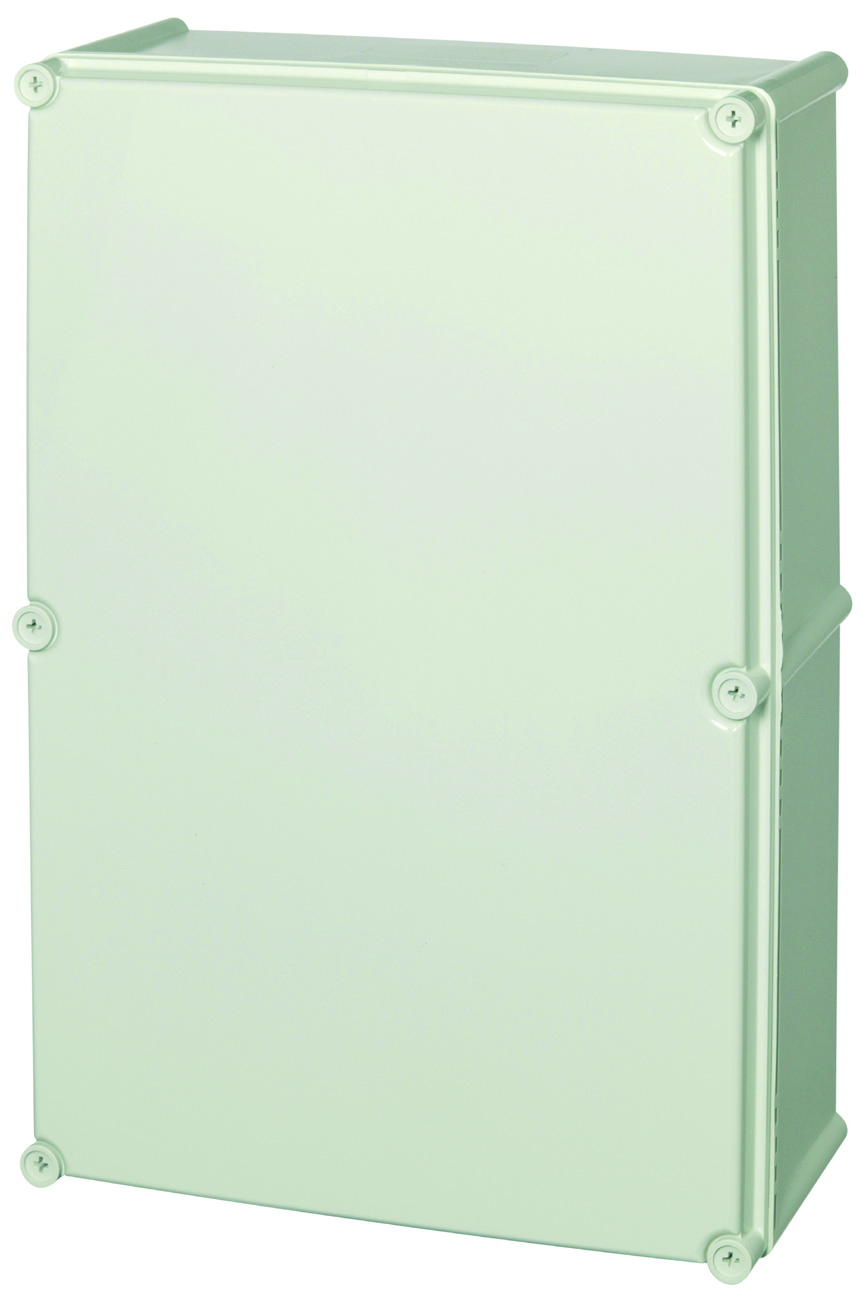

Sample image

Order symbol : ABS 5638 18 G

Product nr : 5880365

Description : Enclosure, ABS

Remarks : Grey cover

EAN : 6418074039118

El. number :

Finland : 3423773
Sweden : 2539727
