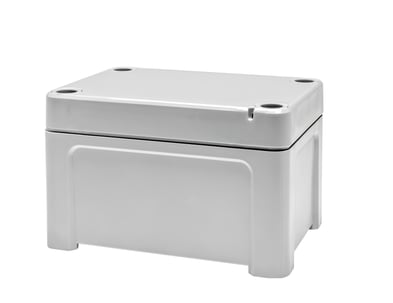

Tempo / TEMPO 0907 / TPC 090706

TPC 090706 5824038

Dimensions 95 x 65 x 60

Dimensions 3.74 x 2.56 x 2.36

IP65; IK07; IK08

Product number : 5824038 Download product card

Technical data

Product:

Product nr : 5824038

Description : Enclosure, PC

Remarks : Grey cover

Package : 4

Unit : Piece

EAN : 6418074309556

SSTL number : 3424367

Electric No. Denmark : 8212052039

ETIM : EC000261

Dimensions :

Height (mm) : 95

Width (mm) : 65

Depth (mm) : 60

Height (inch) : 3.74

Width (inch) : 2.56

Depth (inch) : 2.36

Materials :

Material : Polycarbonate

Base colour : RAL_7035

Cover colour : RAL 7035 -light grey

Gasket material : Polyurethane

Temperatures :

Temperature °C : -40 … 80

Temperature °F : -40 … 175

Ratings :

Standards EN 62208:2011, IEC 62208:2011

Ingress Protection (EN 60529): IP65

Impact Resistance (EN 62262): IK07IK08

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : Yes

UV resistance : UL 746C

Flammability Rating : UL 94 V0

Glow Wire Test (IEC 60695): 960C

Product is connected to following catalogues :

Tempo / TEMPO 0907 / TPC 090706

Dimensional Drawings


CAD Files

Please note, that we need you permission in order for you to view the CAD files.

Contact

Accessories

FP 10674

Wall fastening lug (2 pcs) incl. screws
(40 x 88 x 14)

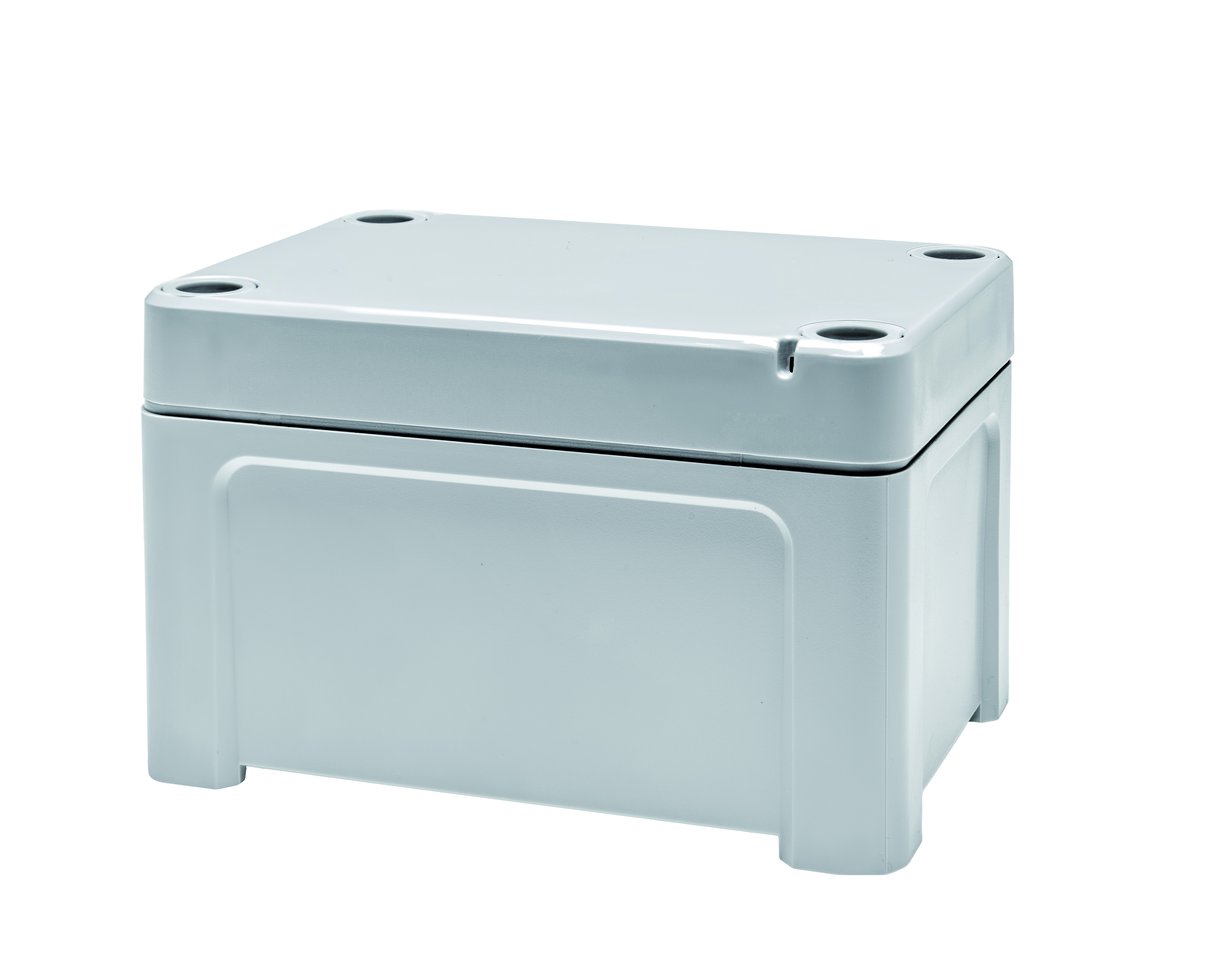

Sample image

Order symbol : TPC 090706

Product nr : 5824038

Description : Enclosure, PC

Remarks : Grey cover

EAN : 6418074309556

El. number :

Finland : 3424367
Denmark : 8212052039

Dimensions :	Height	Width	Depth
mm :	95	65	60
inch :	3.74	2.56	2.36

Materials :
Material :	Polycarbonate
Base colour :	RAL_7035
Cover colour :	RAL 7035 -light grey
Gasket material :	Polyurethane

Temperatures :
Temperature °C (continuous) :	-40 … 80
Temperature °F (continuous) :	-40 … 175

Accessories :
FP 10674	Wall fastening lug (2 pcs) incl. screws (40 x 88 x 14)

Ratings :
Ingress protection (EN 60529):	IP65;
Impact Resistance (EN 62262):	IK07; IK08;
electrical_insulation :	Totally insulated
Halogen free (DIN/VDE 0472, Part 815) :	Yes
UV resistance :	UL 746C
Flammability Rating :	UL 94 V0
Glow Wire Test (IEC 695-2-1) °C :	960C

Certificates :
Certificate FI 40343
