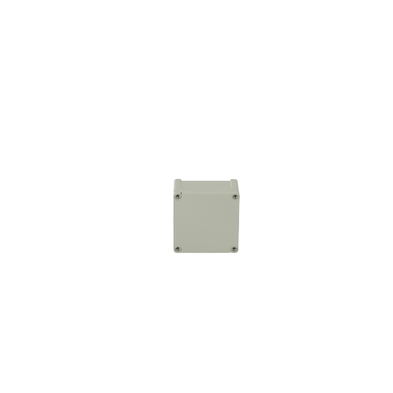

TA111107 product image 1

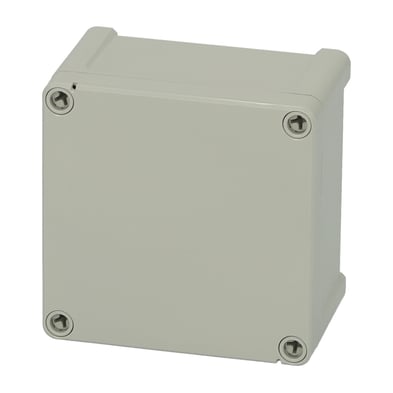

TA111107 product image 2
TA111107 product image 2
Next slide
TA111107 thumbnail image 1
TA111107 thumbnail image 2
TA111107 thumbnail image 2

Tempo / TEMPO 1111 / TA111107

TA111107 5814039

Dimensions 110 x 110 x 65

Dimensions 4.33 x 4.33 x 2.56

Including : Base with PUR gasket and screws for mounting plate/DIN-rail. cover with polyamide cover screws and plastic hinges.

  • IP65; IK07
Technical data
Product:

Product nr : 5814039

Description : Enclosure, ABS

Remarks : Grey cover

Package : 8

Unit : Piece

EAN : 6418074011473

SSTL number : 3438268

Electric No. Denmark : 8212045224

Electric No. Sweden : 5814039

ETIM : EC000261

Dimensions :

Height (mm) : 110

Width (mm) : 110

Depth (mm) : 65

Height (inch) : 4.33

Width (inch) : 4.33

Depth (inch) : 2.56

Materials :

Material : ABS

Base colour : RAL_7035

Cover colour : RAL 7035 -light grey

Gasket material : Polyurethane

Temperatures :

Temperature °C : -40 … 60

Temperature °F : -40 … 140

Ratings :

Standards EN 62208:2011, IEC 62208:2011

Ingress Protection (EN 60529): IP65

Impact Resistance (EN 62262): IK07

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : Yes

Flammability Rating : UL 94 HB

Glow Wire Test (IEC 60695): 650C

Product is connected to following catalogues :

Tempo / TEMPO 1111 / TA111107

Dimensional Drawings
CAD Files
Certificates and Declarations
Contact

TA111107

Fibox

Sample image

Order symbol : TA111107

Product nr : 5814039

Description : Enclosure, ABS

Remarks : Grey cover

EAN : 6418074011473

El. number :

  • Finland : 3438268
  • Denmark : 8212045224
  • Sweden : 5814039

Including : Base with PUR gasket and screws for mounting plate/DIN-rail. cover with polyamide cover screws and plastic hinges.

Tempo-1111_Combi
Dimensions : Height Width Depth
mm : 110 110 65
inch : 4.33 4.33 2.56
Materials :
Material : ABS
Base colour : RAL_7035
Cover colour : RAL 7035 -light grey
Gasket material : Polyurethane
Temperatures :
Temperature °C (continuous) : -40 … 60
Temperature °F (continuous) : -40 … 140
Accessories :
FP 10674 Wall fastening lug (2 pcs) incl. screws
(40 x 88 x 14)
Ratings :
Ingress protection (EN 60529): IP65;
Impact Resistance (EN 62262): IK07;
electrical_insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : -
Flammability Rating : UL 94 HB
Glow Wire Test (IEC 695-2-1) °C : 650C
Certificates :
Certificate FI 40343
