TPC 292411 5824003
Dimensions 289 x 239 x 107
Dimensions 11.38 x 9.41 x 4.21
- IP65; IK07; IK08
Technical data
Product nr : 5824003
Description : Enclosure, PC
Remarks : Grey cover
Package : 2
Unit : Piece
EAN : 6418074078797
SSTL number : 3424375
Electric No. Denmark : 8212052136
ETIM : EC000261
Height (mm) : 289
Width (mm) : 239
Depth (mm) : 107
Height (inch) : 11.38
Width (inch) : 9.41
Depth (inch) : 4.21
Material : Polycarbonate
Base colour : RAL_7035
Cover colour : RAL 7035 -light grey
Gasket material : Polyurethane
Temperature °C : -40 … 80
Temperature °F : -40 … 175
Standards EN 62208:2011, IEC 62208:2011
Ingress Protection (EN 60529): IP65
Impact Resistance (EN 62262): IK07IK08
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 746C
Flammability Rating : UL 94 V0
Glow Wire Test (IEC 60695): 960C
/ /
Dimensional Drawings
CAD Files
Please note, that we need you permission in order for you to view the CAD files.
Certificates and Declarations
Catalogues
Contact
TPC 292411

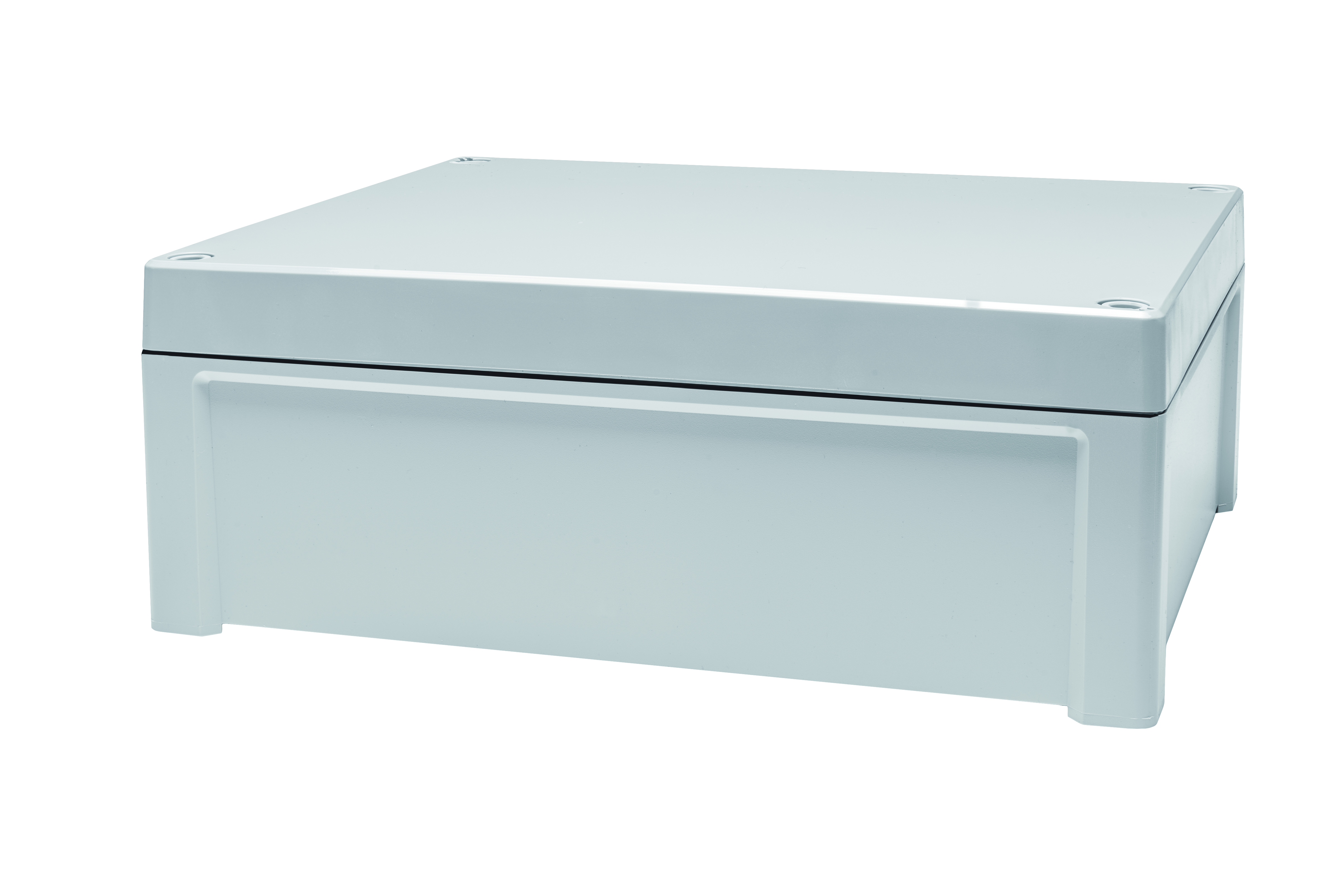

Sample image
Order symbol : TPC 292411
Product nr : 5824003
Description : Enclosure, PC
Remarks : Grey cover
EAN : 6418074078797
El. number :
- Finland : 3424375
- Denmark : 8212052136
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 289 | 239 | 107 |
| inch : | 11.38 | 9.41 | 4.21 |
| Materials : | |
|---|---|
| Material : | Polycarbonate |
| Base colour : | RAL_7035 |
| Cover colour : | RAL 7035 -light grey |
| Gasket material : | Polyurethane |
| Temperatures : | |
|---|---|
| Temperature °C (continuous) : | -40 … 80 |
| Temperature °F (continuous) : | -40 … 175 |
| Accessories : | |
|---|---|
| MP 2924 |
Mounting plate, for enclosures:
(265 x 215 x 1.5) |
| DR 215 |
DIN-35 Mounting rail, for enclosures:
(215 x 35 x 7.5) |
| DR 265 |
DIN-35 Mounting rail, for enclosures:
(265 x 35 x 7.5) |
| FP 10674 |
Wall fastening lug (2 pcs) incl. screws
(40 x 88 x 14) |
| Ratings : | |
|---|---|
| Ingress protection (EN 60529): | IP65; |
| Impact Resistance (EN 62262): | IK07; IK08; |
| electrical_insulation : | Totally insulated |
| Halogen free (DIN/VDE 0472, Part 815) : | Yes |
| UV resistance : | UL 746C |
| Flammability Rating : | UL 94 V0 |
| Glow Wire Test (IEC 695-2-1) °C : | 960C |
| Certificates : | |
|---|---|
| Certificate FI 40343 | |
