TPC 342912 5824004
Dimensions 344 x 289 x 117
Dimensions 13.54 x 11.38 x 4.61
- IP65; IK07; IK08
Technical data
Product nr : 5824004
Description : Enclosure, PC
Remarks : Grey cover
Package : 2
Unit : Piece
EAN : 6418074086877
SSTL number : 3424377
Electric No. Denmark : 8212052152
ETIM : EC000261
Height (mm) : 344
Width (mm) : 289
Depth (mm) : 117
Height (inch) : 13.54
Width (inch) : 11.38
Depth (inch) : 4.61
Material : Polycarbonate
Base colour : RAL_7035
Cover colour : RAL 7035 -light grey
Gasket material : Polyurethane
Temperature °C : -40 … 80
Temperature °F : -40 … 175
Standards EN 62208:2011, IEC 62208:2011
Ingress Protection (EN 60529): IP65
Impact Resistance (EN 62262): IK07IK08
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 746C
Flammability Rating : UL 94 V0
Glow Wire Test (IEC 60695): 960C
/ /
Dimensional Drawings
CAD Files
Please note, that we need you permission in order for you to view the CAD files.
Certificates and Declarations
Catalogues
Contact
TPC 342912

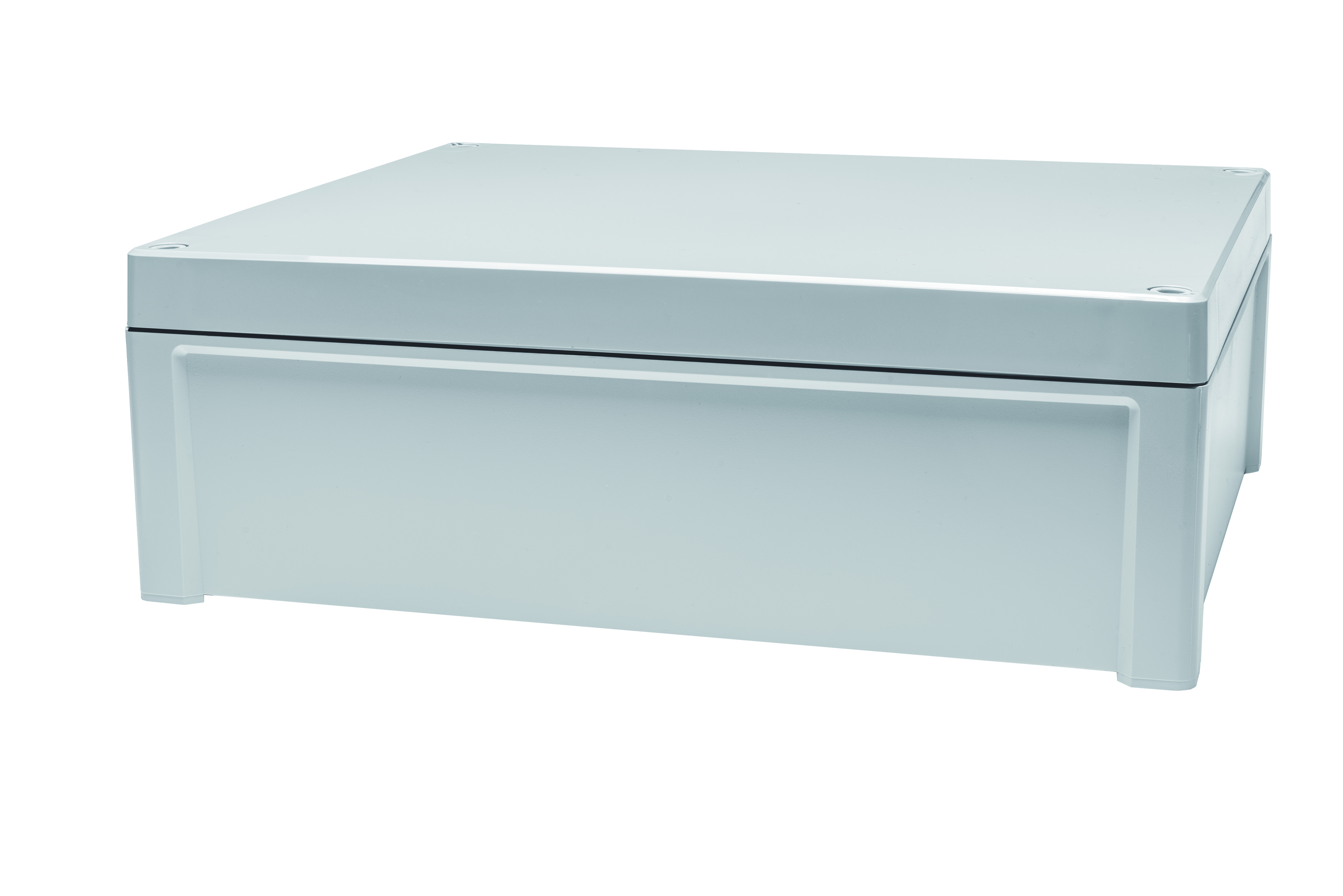

Sample image
Order symbol : TPC 342912
Product nr : 5824004
Description : Enclosure, PC
Remarks : Grey cover
EAN : 6418074086877
El. number :
- Finland : 3424377
- Denmark : 8212052152
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 344 | 289 | 117 |
| inch : | 13.54 | 11.38 | 4.61 |
| Materials : | |
|---|---|
| Material : | Polycarbonate |
| Base colour : | RAL_7035 |
| Cover colour : | RAL 7035 -light grey |
| Gasket material : | Polyurethane |
| Temperatures : | |
|---|---|
| Temperature °C (continuous) : | -40 … 80 |
| Temperature °F (continuous) : | -40 … 175 |
| Accessories : | |
|---|---|
| MP 3429 |
Mounting plate, for enclosures:
(315 x 265 x 1) |
| ARH 2328 |
DIN-35 Mounting rail, for enclosures:
(260 x 35 x 7.5) |
| FP 10674 |
Wall fastening lug (2 pcs) incl. screws
(40 x 88 x 14) |
| DR 316 |
DIN-35 Mounting rail, for enclosures:
(316 x 35 x 7.5) |
| Ratings : | |
|---|---|
| Ingress protection (EN 60529): | IP65; |
| Impact Resistance (EN 62262): | IK07; IK08; |
| electrical_insulation : | Totally insulated |
| Halogen free (DIN/VDE 0472, Part 815) : | Yes |
| UV resistance : | UL 746C |
| Flammability Rating : | UL 94 V0 |
| Glow Wire Test (IEC 695-2-1) °C : | 960C |
| Certificates : | |
|---|---|
| Certificate FI 40343 | |
