    Cabinet base. door with PUR gasket. mounting plate. screws for mounting plate. 3mm double bit lock(s) with key. S versions with swinghandle 2-point locking system. Door guide included.

ARCA IEC / ARCA 504021 / ARCA 504021W

ARCA 504021W 8120131

UL Code : UL508A

Dimensions 500 x 400 x 210

Dimensions 19.69 x 15.75 x 8.27

Including : Cabinet base. door with PUR gasket. mounting plate. screws for mounting plate. 3mm double bit lock(s) with key. S versions with swinghandle 2-point locking system. Door guide included.

IP65; IK08

Product number : 8120131 Download product card

Technical data

Product:

Product nr : 8120131

Description : Cabinet, PC

Remarks : Grey cover with window, 2-point locking, hinges on the long side

Package : 1

Unit : Piece

EAN : 6418074080028

SSTL number : 3423204

Electric No. Denmark : 8212091870

Electric No. Sweden : 2500144

ETIM : EC000261

Dimensions :

Height (mm) : 500

Width (mm) : 400

Depth (mm) : 210

Height (inch) : 19.69

Width (inch) : 15.75

Depth (inch) : 8.27

Materials :

Material : Polycarbonate

Base colour : RAL_7035

Cover colour : Clear transparent

Gasket material : Polyurethane

Temperatures :

Temperature °C : -40 … 80

Temperature °F : -40 … 175

Ratings :

Standards EN_62208:2011__IEC_62208:2011, EN_61439-1:2011__IEC_61439-1:2011, EN_61439-4:2013__IEC_61439-4:2012

Ingress Protection (EN 60529): IP65

Impact Resistance (EN 62262): IK08

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : Yes

UV resistance : UL 746C

Flammability Rating : UL 94 5VA

Glow Wire Test (IEC 60695): 960C

Product is connected to following catalogues :

ARCA IEC / ARCA 504021 / ARCA 504021W

Dimensional Drawings


CAD Files

Please note, that we need you permission in order for you to view the CAD files.

Contact

Accessories

IDS ARCA 5040

Inner door set
(485 x 385 x 35)

MPX ARCA 5040

Mounting plate (450x350 mm)
(450 x 350 x 15)

MPMP ARCA 5040

Mounting plate multiperforated (450x350x2 mm - ⌀3.6 mm)
(450 x 350 x 1.5)

MPP ARCA 5040

Mounting plate perforated (450x350x2 mm - 26x11 mm)
(450 x 350 x 2)

DRS ARCA 504021

DIN rail frame set
(485 x 385 x 35)

PMK ARCA 40

PoleMounting kit, for pole ⌀100-300mm
(385 x 285 x 35)

DSP ARCA VLS

Door stopper ARCA, vertical, left, small
(15 x 104 x 16)

MPS ARCA 5040

Mounting plate (450x350x2 mm)
(450 x 350 x 2)

RCS ARCA 5040

Rain canopy set for size 5040
(30 x 400 x 20)

DSP ARCA VRS

Door stopper ARCA, vertical, right, small
(15 x 104 x 16)

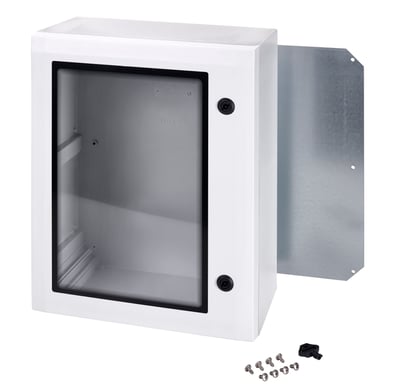

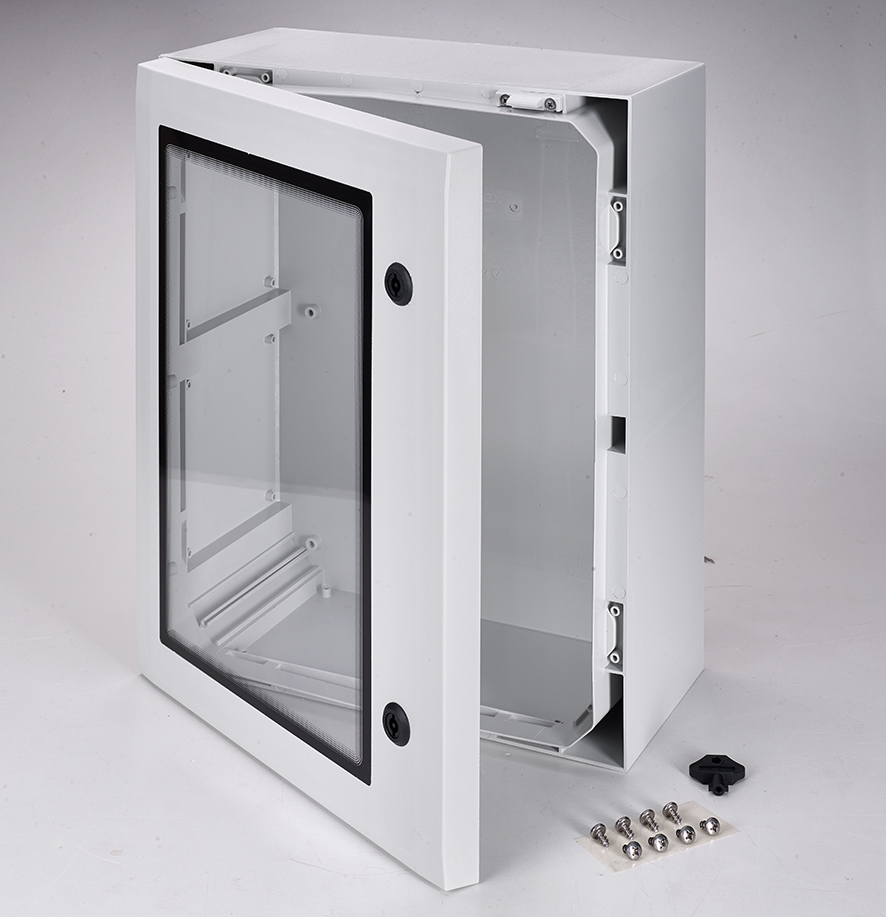

Sample image

Order symbol : ARCA 504021W

Product nr : 8120131
