DRS ARCA 504021 8120769
Dimensions 485 x 385 x 35
Dimensions 18.07 x 14.13 x 6.42
Technical data
Product nr : 8120769
Description : DIN rail frame set
Remarks : 3 rows x 16 modules, for size 500x400x210
Package : 1
Unit : Piece
EAN : 6418074082909
SSTL number : 3423861
Electric No. Denmark : 8212094754
Electric No. Sweden : 2500192
ETIM : EC002620
Height (mm) : 485
Width (mm) : 385
Depth (mm) : 35
Height (inch) : 18.07
Width (inch) : 14.13
Depth (inch) : 6.42
Material : Galvanized steel
/ /
Dimensional Drawings
CAD Files
Please note, that we need you permission in order for you to view the CAD files.
Catalogues
Contact
DRS ARCA 504021

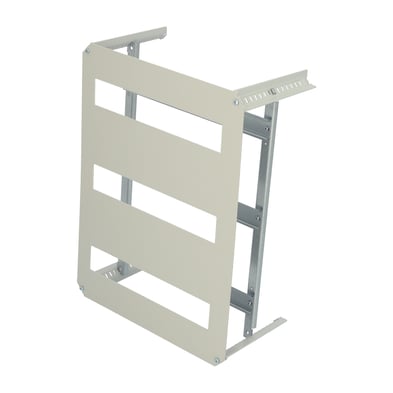

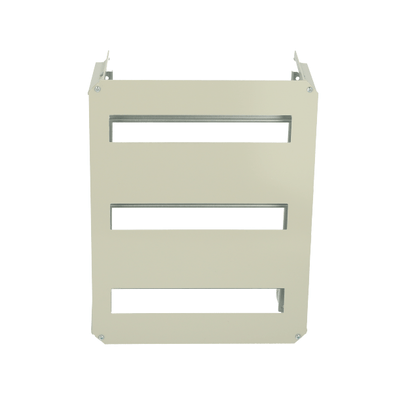

Sample image
Order symbol : DRS ARCA 504021
Product nr : 8120769
Description : DIN rail frame set
Remarks : 3 rows x 16 modules, for size 500x400x210
EAN : 6418074082909
El. number :
- Finland : 3423861
- Denmark : 8212094754
- Sweden : 2500192
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 485 | 385 | 35 |
| inch : | 18.07 | 14.13 | 6.42 |
| Materials : | |
|---|---|
| Material : | Galvanized steel |
| Ratings : | |
|---|---|
| electrical_insulation : | Not insulated |
| UV resistance : | - |
