    Cabinet base. door with PUR gasket. mounting plate. screws for mounting plate. 3mm double bit lock(s) with key. S versions with swinghandle 2-point locking system. Door guide included.

ARCA IEC / ARCA 507030 / ARCA 507030S

ARCA 507030S 8120111

UL Code : UL508A

Dimensions 500 x 700 x 300

Dimensions 27.56 x 19.69 x 12.2

Including : Cabinet base. door with PUR gasket. mounting plate. screws for mounting plate. 3mm double bit lock(s) with key. S versions with swinghandle 2-point locking system. Door guide included.

IP66; IK10

Product number : 8120111 Download product card

Technical data

Product:

Product nr : 8120111

Description : Cabinet, PC

Remarks : Grey cover, Swinghandle, hinges on the short side

Package : 1

Unit : Piece

EAN : 6418074086044

SSTL number : 3424066

Electric No. Denmark : 8212095423

Electric No. Sweden : 2507106

ETIM : EC000261

Dimensions :

Height (mm) : 500

Width (mm) : 700

Depth (mm) : 300

Height (inch) : 27.56

Width (inch) : 19.69

Depth (inch) : 12.2

Materials :

Material : Polycarbonate

Base colour : RAL_7035

Cover colour : RAL 7035 -light grey

Gasket material : Polyurethane

Temperatures :

Temperature °C : -40 … 80

Temperature °F : -40 … 175

Ratings :

Standards EN_62208:2011__IEC_62208:2011, EN_61439-1:2011__IEC_61439-1:2011, EN_61439-4:2013__IEC_61439-4:2012

Ingress Protection (EN 60529): IP66

Impact Resistance (EN 62262): IK10

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : Yes

UV resistance : UL 746C

Flammability Rating : UL 94 5VA

Glow Wire Test (IEC 60695): 960C

Product is connected to following catalogues :

ARCA IEC / ARCA 507030 / ARCA 507030S

Dimensional Drawings


CAD Files

Please note, that we need you permission in order for you to view the CAD files.

Contact

Accessories

MPX ARCA 7050

Mounting plate (630x430 mm)
(630 x 430 x 5)

PMK ARCA 70

PoleMounting kit, for pole ⌀100-300mm
(30 x 685 x 50)

RCS ARCA 5070

Rain canopy set for size 5070
(50 x 700 x 30)

DSP ARCA RM

Door stopper ARCA, right, midsize 5070-8060
(22 x 200 x 16)

DRS ARCA 507030

DIN rail frame set
(448 x 648 x 220)

IDS ARCA 5070

Inner door set

DSP ARCA LM

Door stopper ARCA, left, midsize 5070-8060
(22 x 200 x 16)

MPS ARCA 7050

Mounting plate (630x430x2 mm)
(630 x 430 x 2)

MPMP ARCA 7050

Mounting plate multiperforated (630x430x2 mm - ⌀3.6 mm)
(630 x 430 x 2)

MPP ARCA 5070

Mounting plate perforated (630x430x2 mm - 26x11 mm)
(430 x 630 x 2)

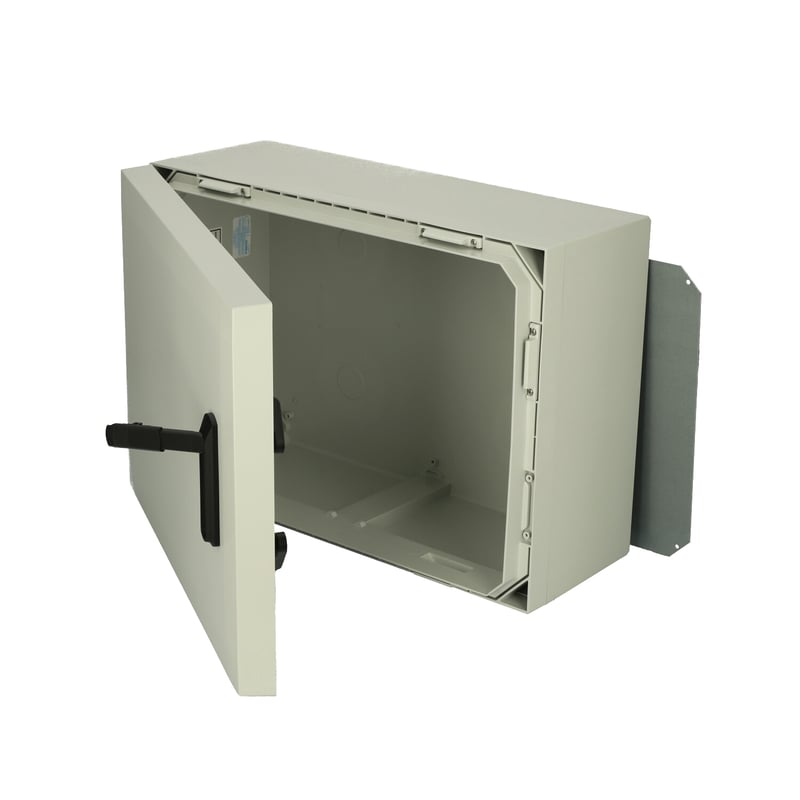

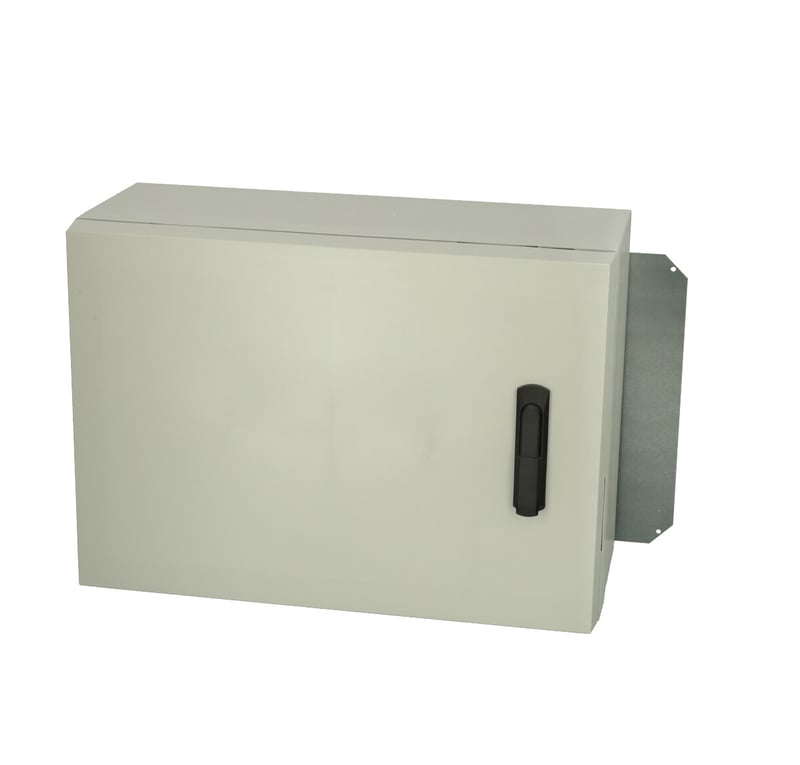

Sample image

Order symbol : ARCA 507030S

Product nr : 8120111
