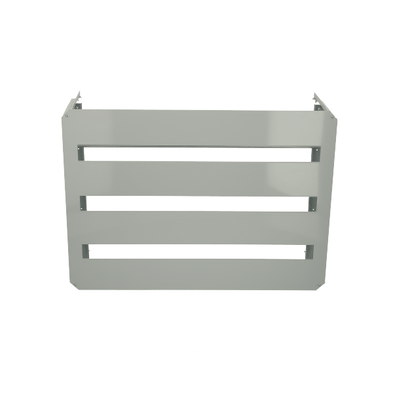

DRS ARCA 507030 8120790
Dimensions 448 x 648 x 220
Dimensions 8.66 x 19.09 x 1.38
Technical data
Product nr : 8120790
Description : DIN rail frame set
Remarks : 3 rows x 32 modules, for size 500x700x300
Package : 1
Unit : Piece
EAN : 6418074086327
SSTL number : 3424093
Electric No. Denmark : 8212095672
Electric No. Sweden : 2500201
ETIM : EC002620
Height (mm) : 448
Width (mm) : 648
Depth (mm) : 220
Height (inch) : 8.66
Width (inch) : 19.09
Depth (inch) : 1.38
Material : Galvanized steel
/ /
Dimensional Drawings
CAD Files
Please note, that we need you permission in order for you to view the CAD files.
Catalogues
Contact
DRS ARCA 507030

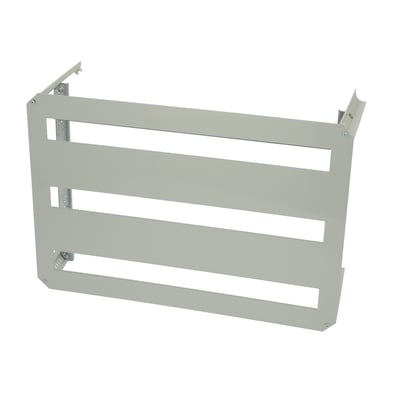

Sample image
Order symbol : DRS ARCA 507030
Product nr : 8120790
Description : DIN rail frame set
Remarks : 3 rows x 32 modules, for size 500x700x300
EAN : 6418074086327
El. number :
- Finland : 3424093
- Denmark : 8212095672
- Sweden : 2500201
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 448 | 648 | 220 |
| inch : | 8.66 | 19.09 | 1.38 |
| Materials : | |
|---|---|
| Material : | Galvanized steel |
| Ratings : | |
|---|---|
| electrical_insulation : | Not insulated |
| UV resistance : | - |
