DRS ARCA 302015 8120760
Dimensions 285 x 185 x 35
Dimensions 11.22 x 7.28 x 1.38
Technical data
Product nr : 8120760
Description : DIN rail frame set
Remarks : 1 row x 5 modules, for size 300x200x150
Package : 1
Unit : Piece
EAN : 6418074082817
SSTL number : 3423848
Electric No. Denmark : 8212094660
Electric No. Sweden : 2500189
ETIM : EC002620
Height (mm) : 285
Width (mm) : 185
Depth (mm) : 35
Height (inch) : 11.22
Width (inch) : 7.28
Depth (inch) : 1.38
Material : Galvanized steel
/ /
Dimensional Drawings
CAD Files
Please note, that we need you permission in order for you to view the CAD files.
Catalogues
Contact
DRS ARCA 302015

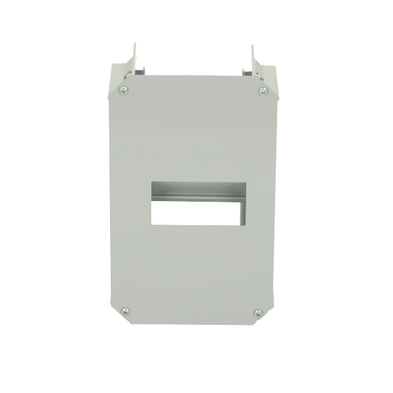

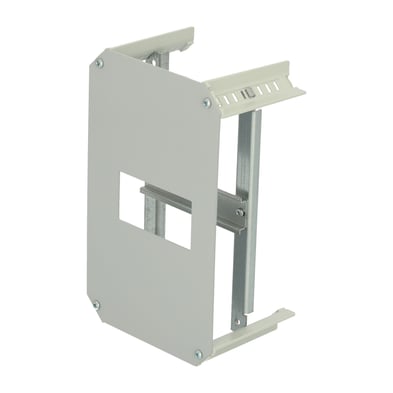

Sample image
Order symbol : DRS ARCA 302015
Product nr : 8120760
Description : DIN rail frame set
Remarks : 1 row x 5 modules, for size 300x200x150
EAN : 6418074082817
El. number :
- Finland : 3423848
- Denmark : 8212094660
- Sweden : 2500189
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 285 | 185 | 35 |
| inch : | 11.22 | 7.28 | 1.38 |
| Materials : | |
|---|---|
| Material : | Galvanized steel |
| Ratings : | |
|---|---|
| electrical_insulation : | Not insulated |
| UV resistance : | - |
