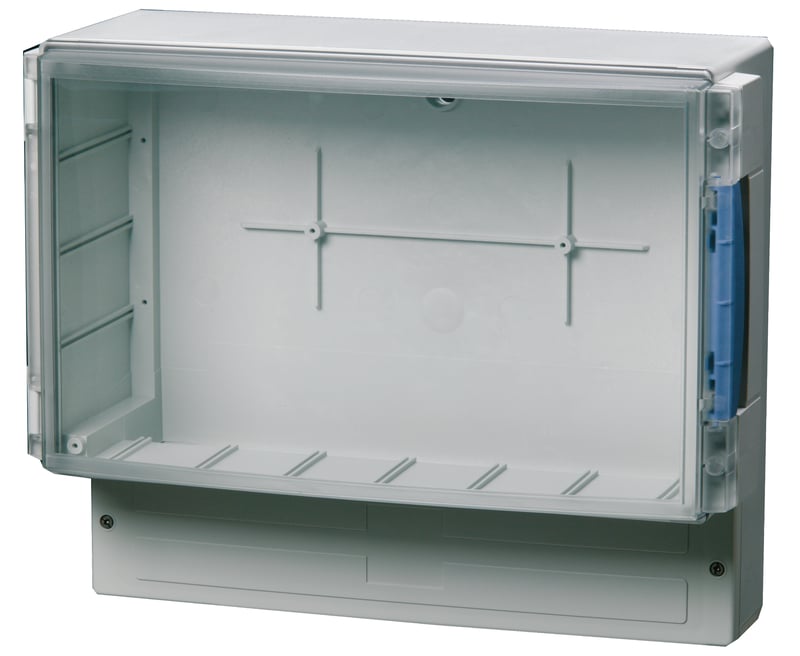

Cardmaster / CARDMASTER 36/31 / PC 36/31-3TT

PC 36/31-3TT 7526020

Dimensions 390 x 316 x 167

Dimensions 15.35 x 12.44 x 6.57

IP65; IK07

Product number : 7526020 Download product card

Technical data

Product:

Product nr : 7526020

Description : Enclosure, PC

Remarks : Clear transparent hinged cover

Package : 1

Unit : Piece

EAN : 6418074062062

Electric No. Denmark : 8212016952

ETIM : EC000261

Dimensions :

Height (mm) : 390

Width (mm) : 316

Depth (mm) : 167

Height (inch) : 15.35

Width (inch) : 12.44

Depth (inch) : 6.57

Materials :

Material : Polycarbonate

Gasket material : Polyurethane

Temperatures :

Temperature °C : -40 … 80

Temperature °F : -40 … 175

Ratings :

Standards EN 62208:2011, IEC 62208:2011

Ingress Protection (EN 60529): IP65

Impact Resistance (EN 62262): IK07

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : Yes

UV resistance : UL 746C

Flammability Rating : UL 94 V0

Glow Wire Test (IEC 60695): 960C

Product is connected to following catalogues :

Cardmaster / CARDMASTER 36/31 / PC 36/31-3TT

Dimensional Drawings

CAD Files

Contact

Accessories

FP 36/31

Front plate (aluminium), for enclosures:
(353 x 223 x 1)

MP 36/31

Mounting plate, for enclosures:
(345 x 258 x 1.5)

Sample image

Order symbol : PC 36/31-3TT

Product nr : 7526020

Description : Enclosure, PC

Remarks : Clear transparent hinged cover

EAN : 6418074062062

El. number :

Denmark : 8212016952

Dimensions :	Height	Width	Depth
mm :	390	316	167
inch :	15.35	12.44	6.57

Materials :
Material :	Polycarbonate
Gasket material :	Polyurethane

Temperatures :
Temperature °C (short term) :	-40 … 120
Temperature °C (continuous) :	-40 … 80
Temperature °F (short term) :	-40 … 250
Temperature °F (continuous) :	-40 … 175

Accessories :
FP 36/31	Front plate (aluminium), for enclosures: (353 x 223 x 1)
MP 36/31	Mounting plate, for enclosures: (345 x 258 x 1.5)

Ratings :
Ingress protection (EN 60529):	IP65;
Impact Resistance (EN 62262):	IK07;
electrical_insulation :	Totally insulated
Halogen free (DIN/VDE 0472, Part 815) :	Yes
UV resistance :	UL 746C
Flammability Rating :	UL 94 V0
Glow Wire Test (IEC 695-2-1) °C :	960C

Certificates :
SGSFIMKO_CARDpc
